3.5 Auxiliary Power Supply
The EM 1000 HE DIG PLUS COMPACT uses an AC/DC power supply, to provide auxiliary
voltage to the different parts that make up the device.

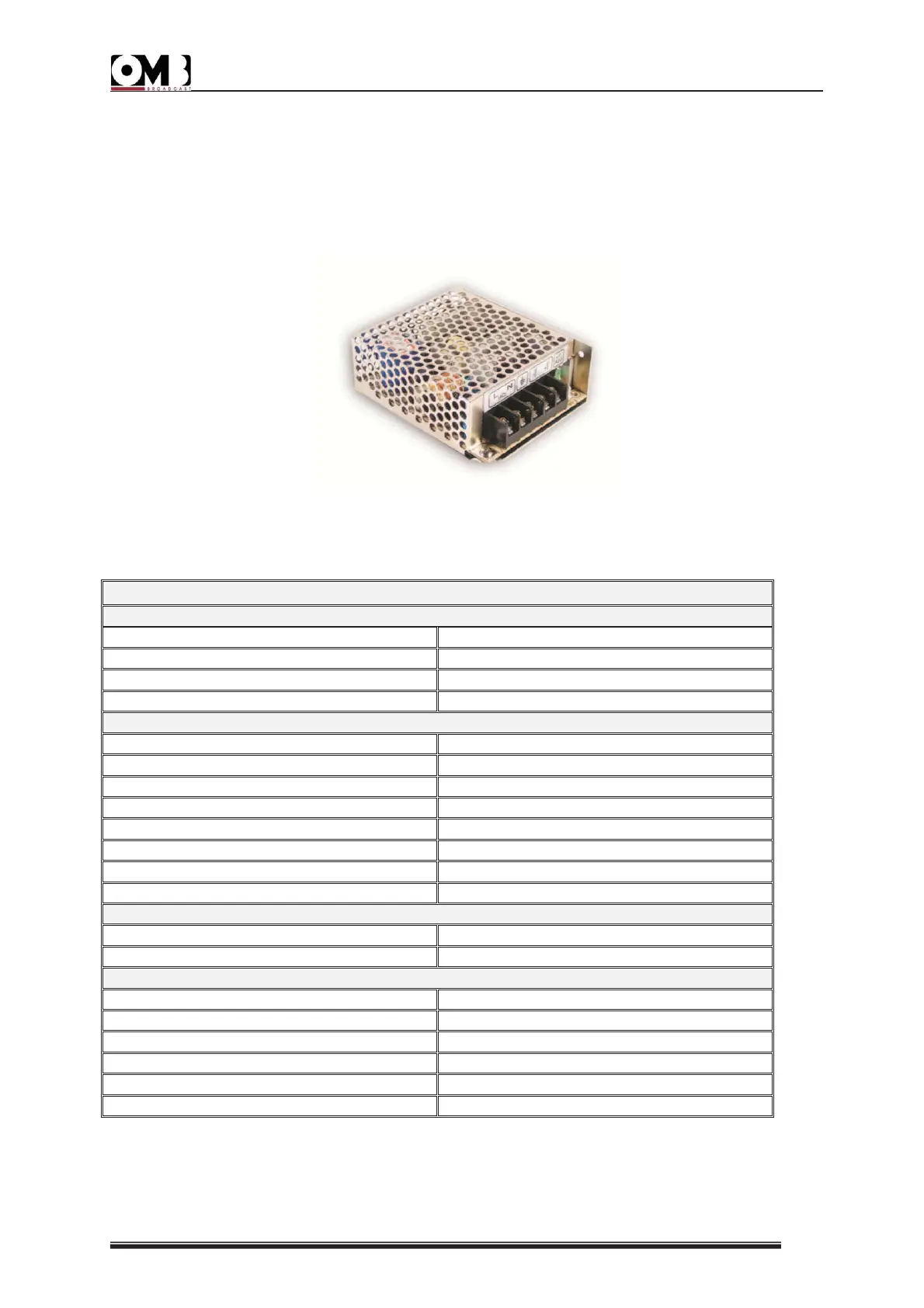

Figure: RD 3513 Power Supply
TECHNICAL SPECITICATIONS
Input
Voltage
88-264VAC
Frequency
47-63Hz
Efficiency
80% (typical)
AC Consumtion
0.8A/115VAC 0.55A/230VAC (typical)
Output
DC Voltage
13.5V/-13.5V
Nominal Current
1.3A
Current Range
0.3-2A
Nominal Power
35.1W
Adjustable Voltage Range
120mVp-p
Voltage Tolerance
11.5 – 15.5V
Line regulation
±0.5%
Load Regulation
±3.0%
Alarms
Overload
110 – 150% potencia de salida nominal
Overvoltage
56.6 - 66.2V
General
Working Temperature
-25 a +70°C
Storaje Temperature
-40 a +85°C
Working Humidity
20-90%HR without condensation
Humidity dampness
10-95%HR without condensation
Dimmensions
98x82x36mm
Weight
0.3kg
