3.4 CONTROLUNITBOARD

The control unit board centers its mission on the processor, which is in charge of all the
functionsrelatedtotheequipment.ThesignalsgeneratedandadaptedontheMAINBOARD
arrive on the board; the processor converts them through the internal A/D converters and
processesthem.

Theprocessorofthe controlboardisthe supportofthetelemetrysystems (bothGSMand
Ethernet),inadditiontogeneratingthecharactersthatappearonthefrontdisplay.
TheboardincludesanRTC(RealTimeClock)whosebatteryisvisibleandthatwillallowus,
amongotherfeatures,toreducethepowerdependingonthetimeslot.



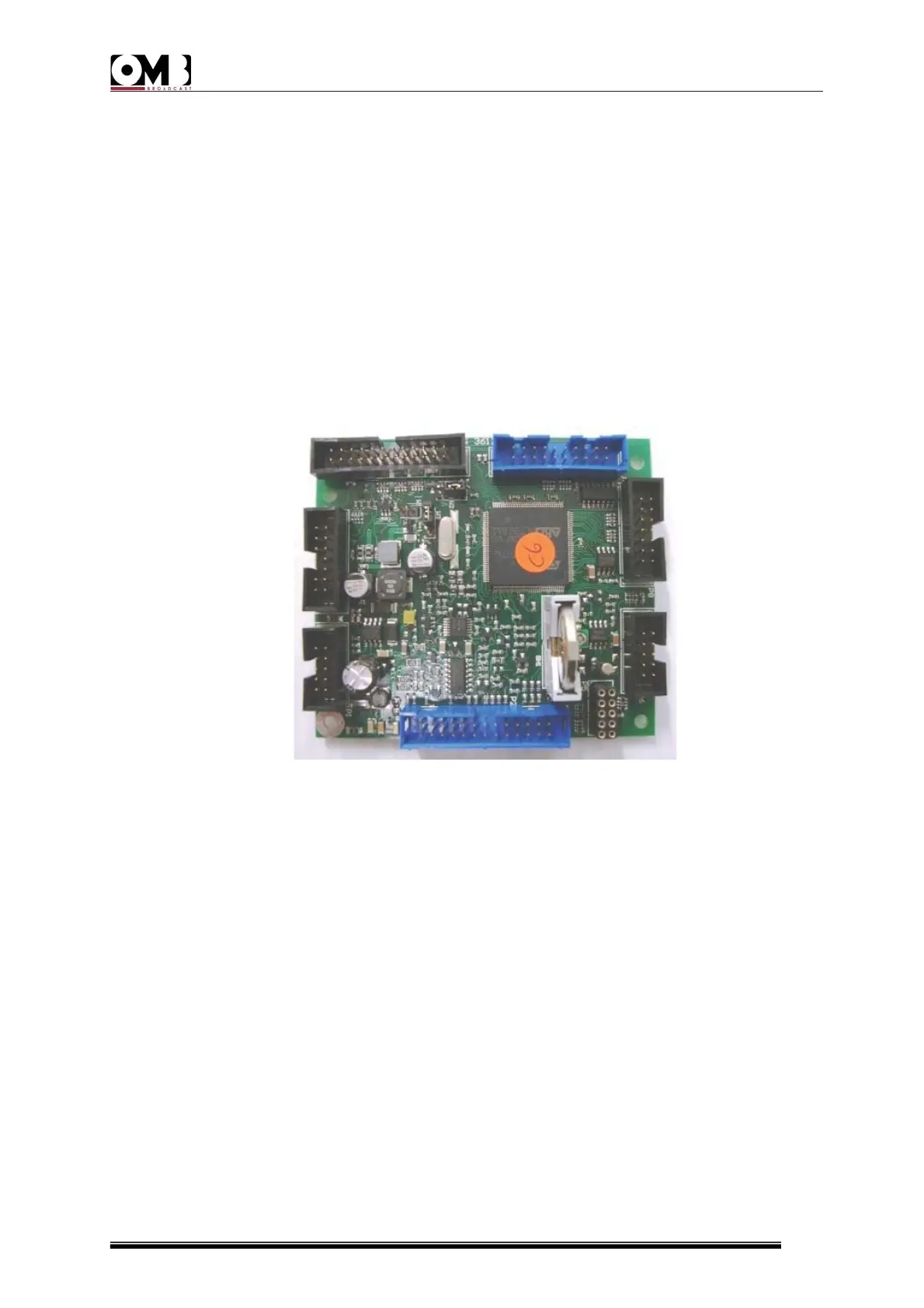

Figure:controlunit












