Omega DRST-CM User Manual

7
Mounting on a DRST device
7

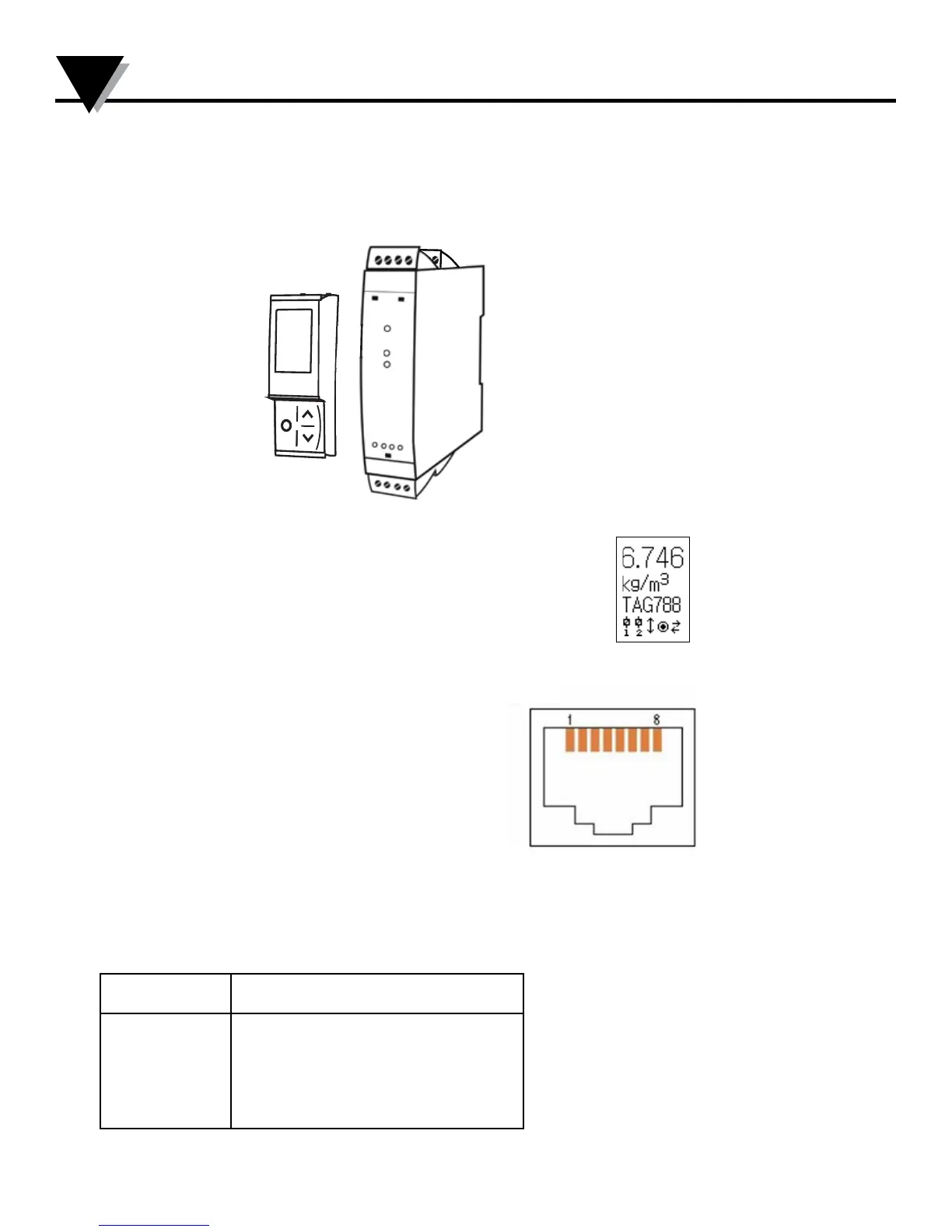

Section 7.1 - Mounting on a DRST device
DRST-CM is a detachable display that can be mounted on all DRST fronts for programming and signal monitoring.
DRST-CM contains a four line LCD dot display
Line 1 can e.g. show the scaled process value.
Line 2 can e.g. show the selected engineering unit.
Line 3 can e.g. show the analog output or TAG no.
Line 4 shows status for communication and e.g. signal trending.
RJ45 Modbus Connector
Pin 5: RS485 A line
Pin 4: RS485 B line
Pin 8: RS485 GND and shield
Section 8 - Order
Type Description
DRST-CM
DRSL-DISPLAY
Communication enabler
Congmate interface
