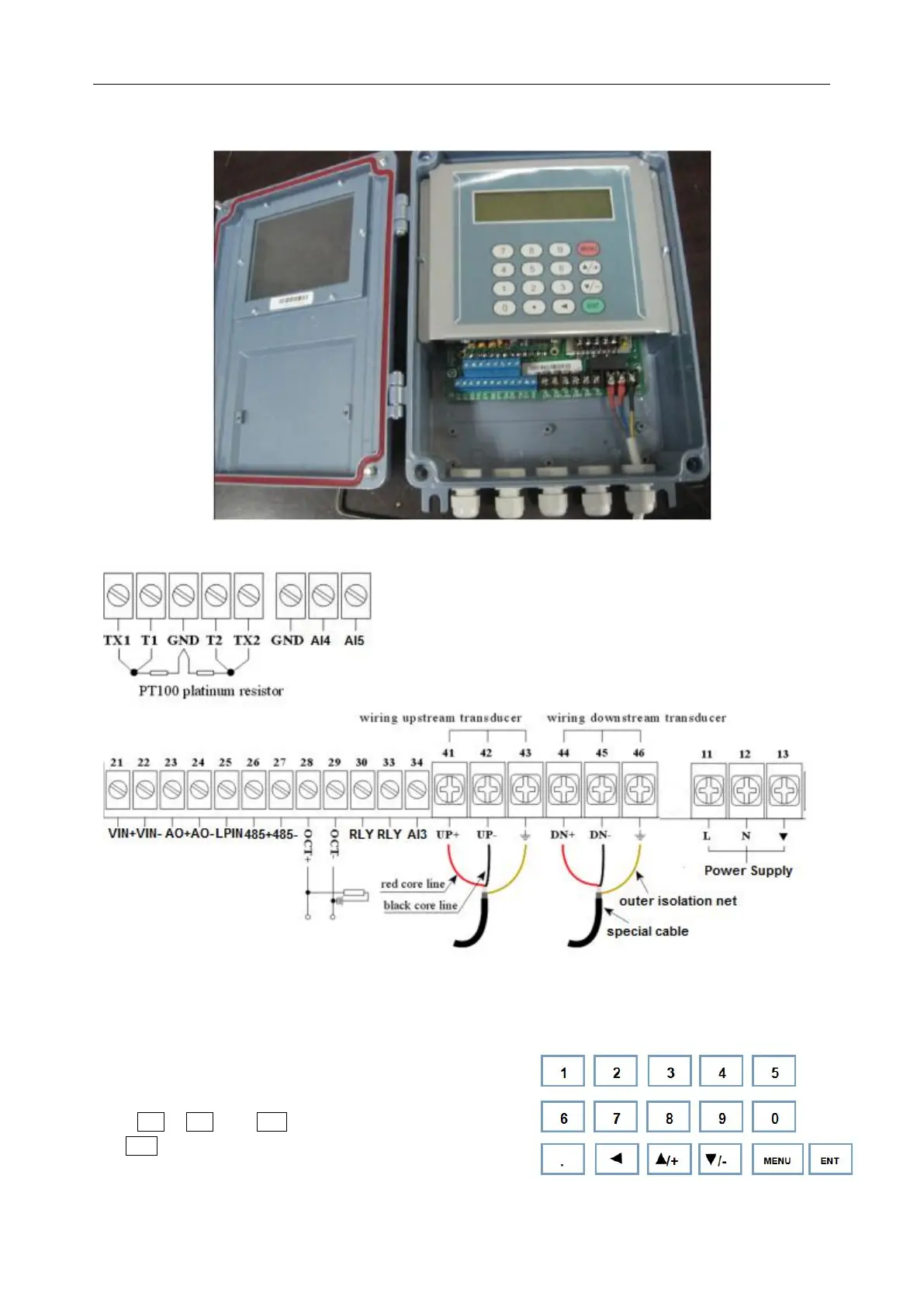

FDT-25W Wall Mounter Ultrasonic Flowmeter
7
2.2 Wiring
2.3 Keypad
The keypad for the operation of the flow meter is as
shown by the right picture.
Keys 0 - 9 and . are keys to enter numbers
Key ▲/+ is the going UP key, when the user wants to
go to the upper menu window. It also works as the “+”
key when entering numbers.
