ELECTRICAL INSTALLATION
WARNING
This apparatus must be earthed.
The oven is only for domestic use.
The feed voltage and the absorbed power are as indicated on the data plate attached to the left-hand side
upright, which can be seen when the oven door is open.
Connecting must be carried out by qualified personnel and in accordance with the regulations currently in
force.
The manufacturer cannot be held responsible for any damages to persons or objects caused by failure to
observe these instructions.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
The oven must be connected to the mains through a multipole circuit breaker with a contact-to-contact gap of
at least 3 mm, making sure that the earth wire is not disconnected.
For connecting use a flexible cable of the H05V2V2-F 3x1,5 mm2 type remembering to make it long enough
to allow the oven to be removed from its housing unit when maintenance work is required.

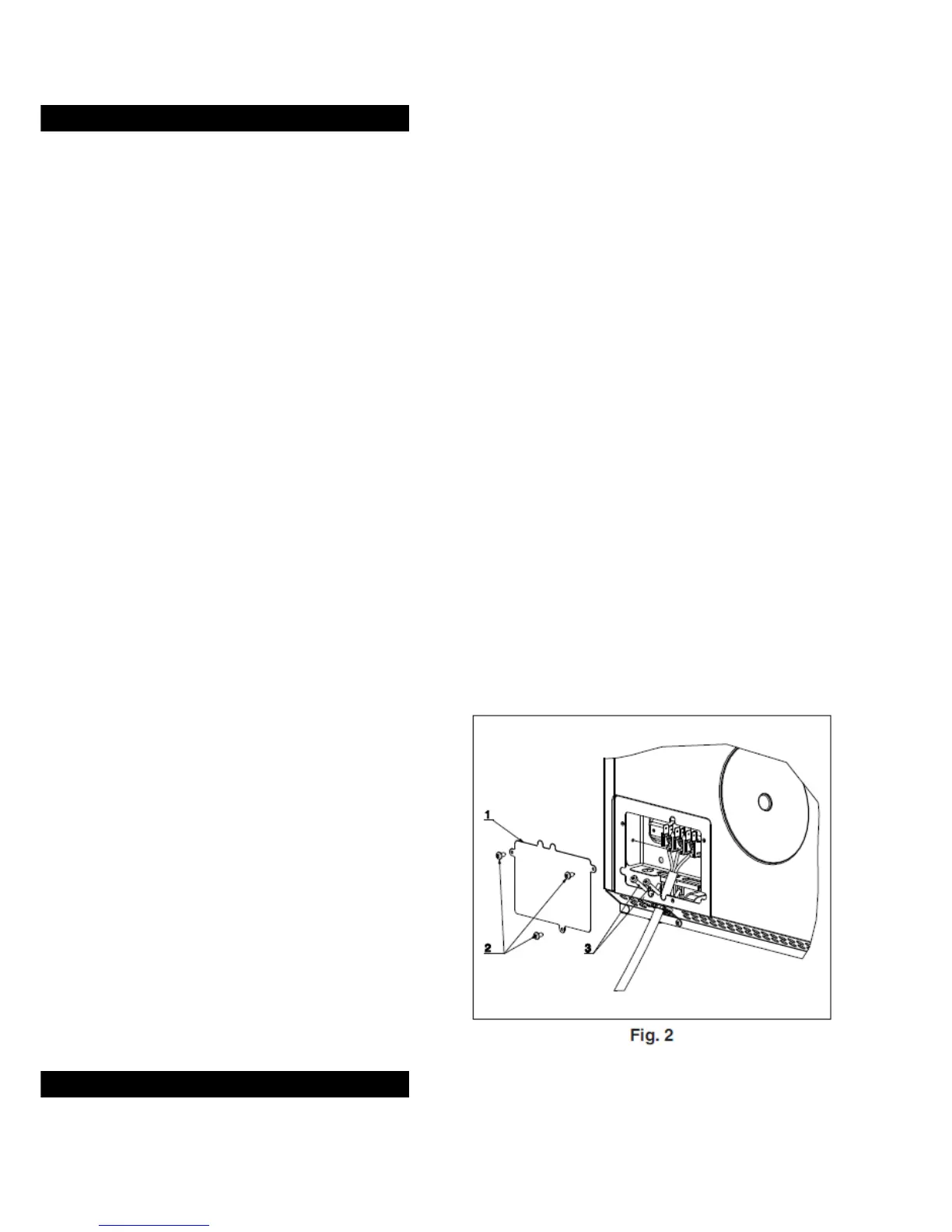

To connect the cable to the oven, proceed as follows (see Fig. 2):
- Remove the lid (1) by unfastening the three screws (2).
- Unfasten the two screws (3) for the cable holder and feed the cable through the opening immediately below
the cover.
- Remove about 12 cm of the outside insulation from the cable and shorten the two active wires (live and
neutral) to 6 cm, leaving long the one to be connected to the main earth terminal on the terminal box; remove
about 1 cm of the main insulation from the three wires and connect them correctly to the terminal box,
Remembering to respect the polarities.
- Tighten the two screws (3) of the cable holder and put the lid (1) back on with the three screws (2).
Electricals Specification
- Absorbed power:
Oven top element: 2000+1000 W
Oven bottom element: 1200+400 W
Lamp: 25 W
Hot air fan motor: 25 W
Cooling fan motor: 25 W
- Maximum absorbed power: (see data plate).
- Supply voltage: (see data plate).
INSTRUCTIONS FOR USE
