7

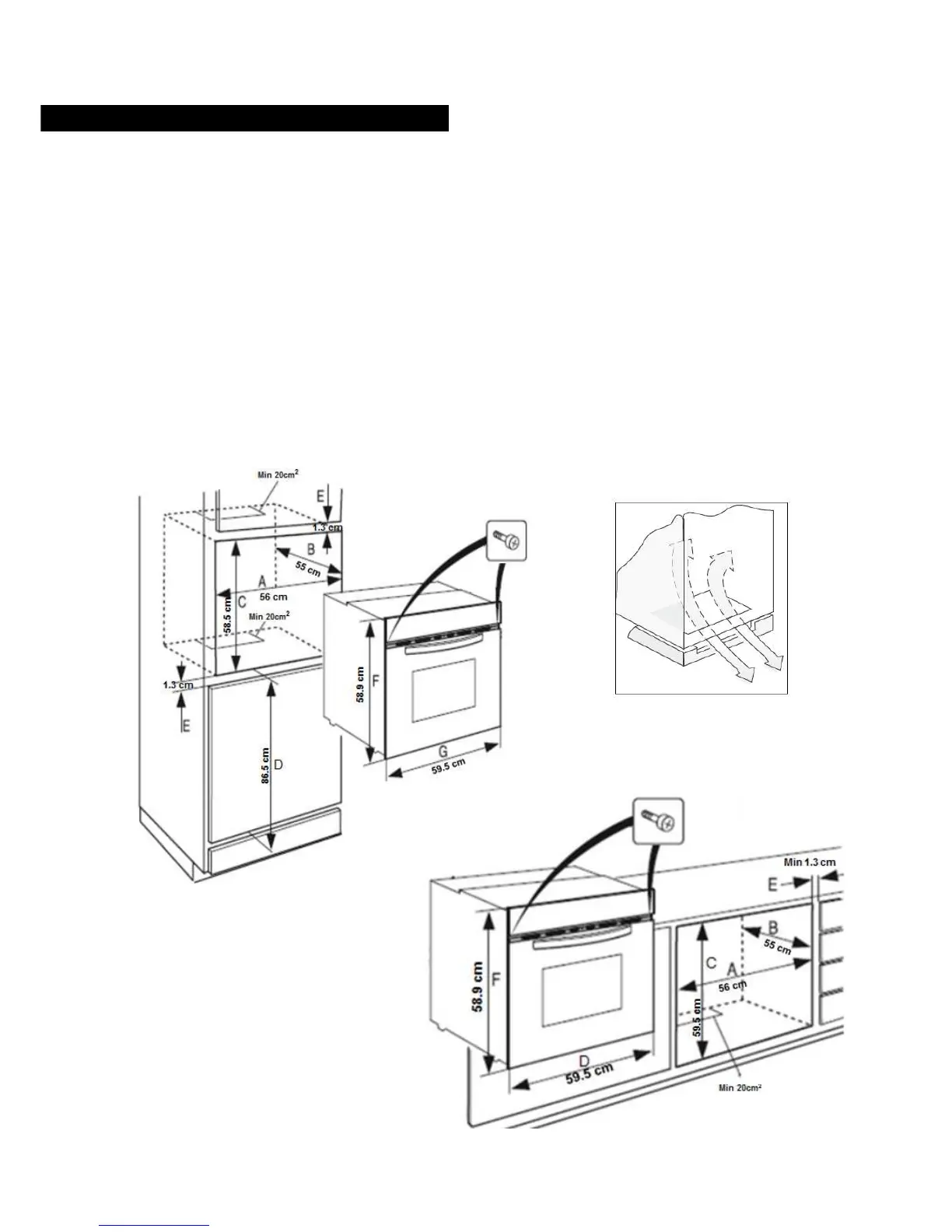

INSTALLATION OF YOUR OVEN
To install the oven into the kitchen a cut out should be made in accordance with the dimensions shown in
below.
The apparatus is to be fastened to the top by means of the two screws provided in the kit through the holes
made on the oven uprights.
The cabinet in which the apparatus is installed shall be open on the back side to ensure a sufficient air
circulation and prevent overheating.
Leave a gap of at least 20 cm
2
for air circulation if the oven is installed in a column; this is not necessary if the
oven is installed under the work top.
WARNING
As the apparatus is to be fitted in your kitchen furniture, make sure that all surfaces in contact with
the oven can resist a temperature of approx 90°C.
Option 1
Min 20cm
2
for air circulation
Option 2
