CMC 850 User Manual
6 Setup and Operation
Only operate (or even turn on) CMC 850 after you have read this manual and fully understood the
instructions herein.
Before operating CMC 850 for the first time, use the printed Quick Start to verify that all components
of the test system are available.
6.1 Installing the test software and connecting the computer to the
CMC 850 test set
1. Install the test software on your computer.
The test software can either be the Test Universe or the RelaySimTest software.
Both software packages also install the OMICRON Device Link. Use OMICRON Device Link to
associate CMC test sets that are connected to your computer via Ethernet (ETH).
2. Connect the power supply unit to CMC 850 and turn on the test set at the ON/OFF switch.
3. Connect the computer to CMC 850 via:
• Ethernet cable: Valid for NET-1B and NET-2.
• USB: Valid for NET-2 only.

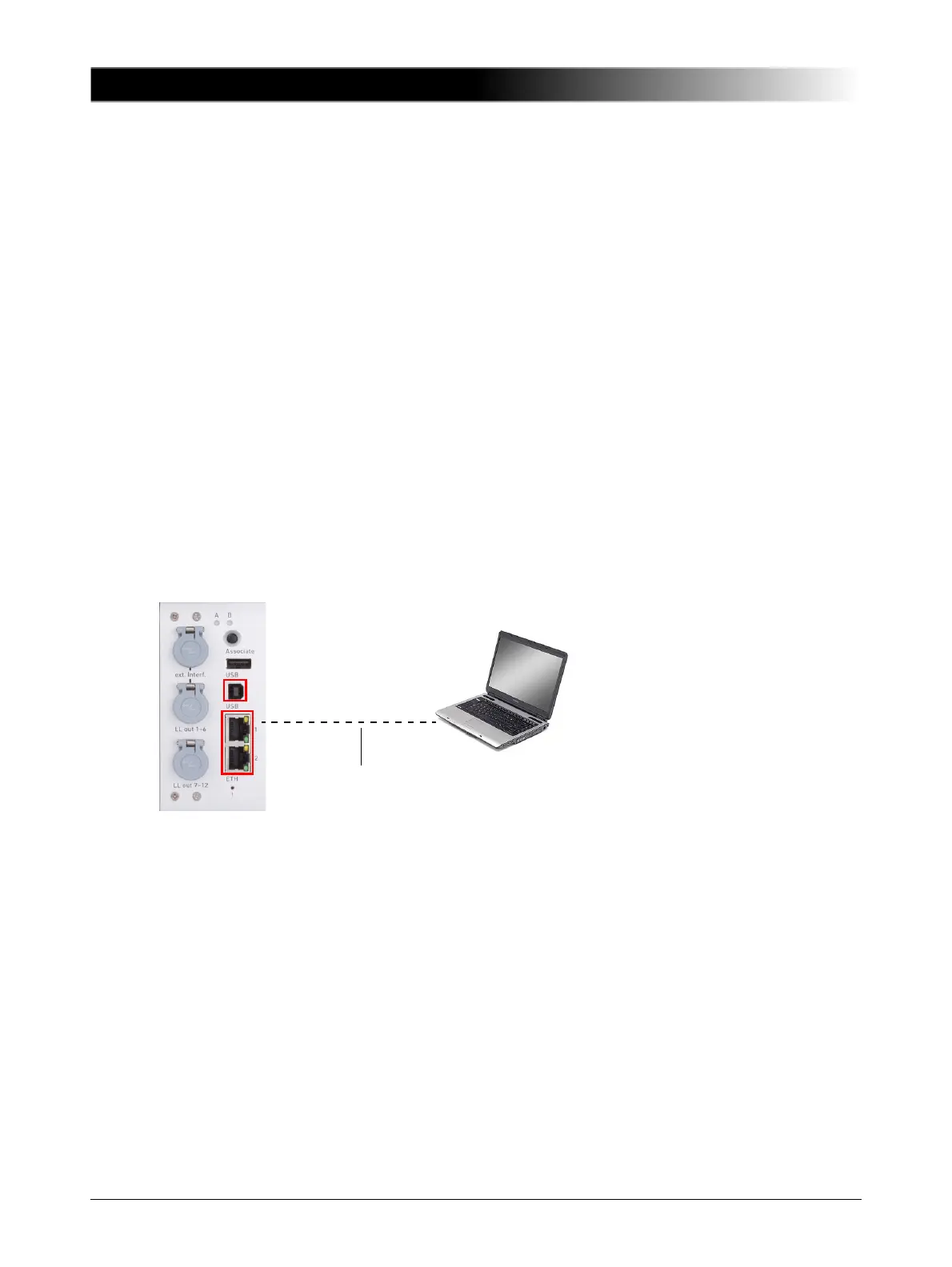

Use one of the PoE
(Power over Ethernet)
ports ETH1 or ETH2, or
the USB port.
Either Ethernet or USB
