Technical Data

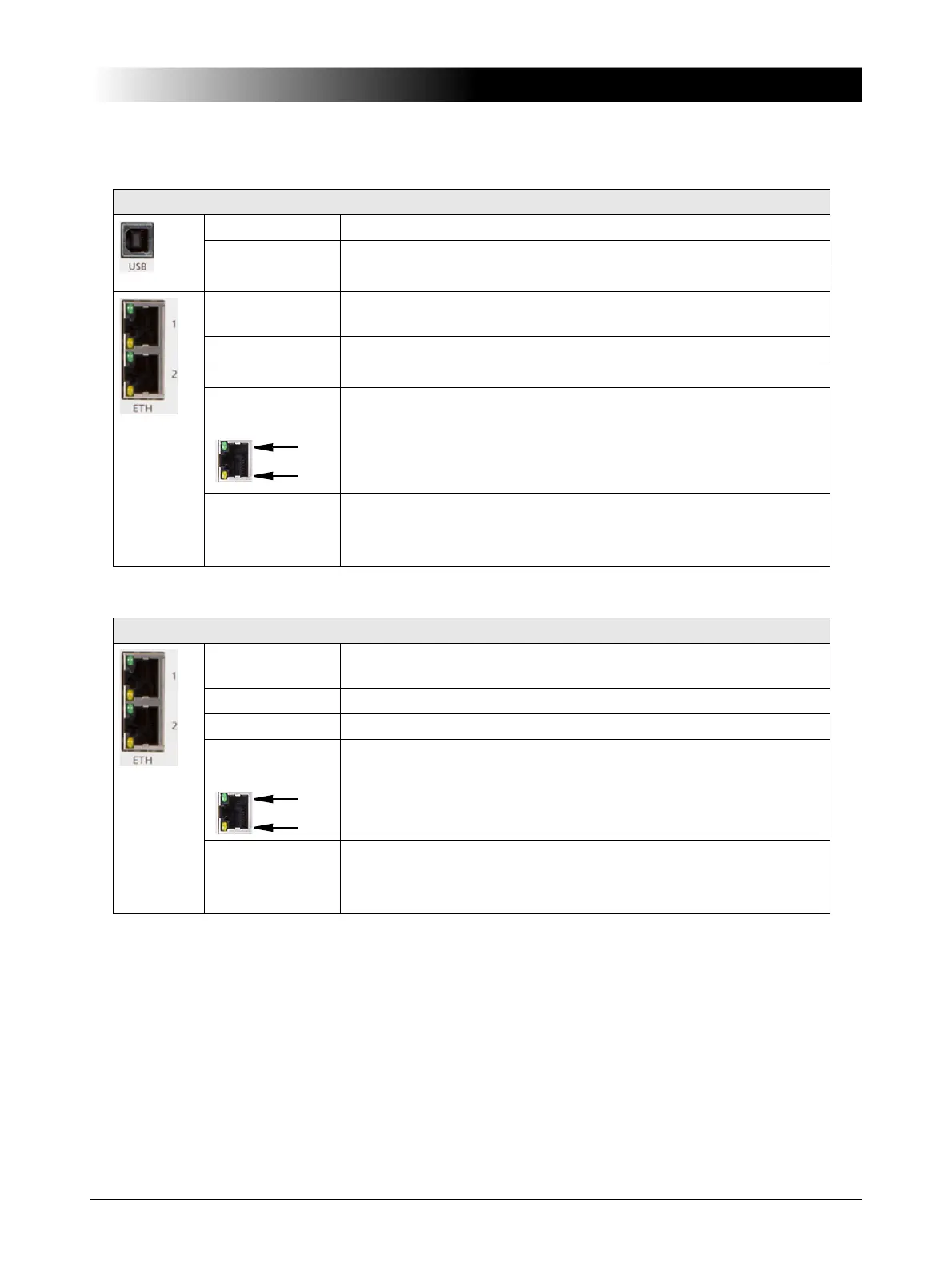

7.4.2 The NET-1C Board
7.4.3 The NET-1B Board
NET-1C: USB port and Ethernet ports ETH1/ETH2
USB type USB 2.0 full speed up to 12 Mbit/s
USB connector USB type B (connect to computer)
USB cable 2 m/6 ft USB 2.0 high speed type A-B
ETH type 10/100Base-TX (10/100Mbit, twisted pair, auto-MDI/MDIX or auto-
crossover)
ETH connector RJ45
ETH cable type LAN cable of category 5 (CAT5) or better
ETH port status
LED
• Physical link established, port active: green LED ON.
• Traffic via ETH port: yellow LED is blinking.
ETH Power over
Ethernet (PoE)
IEEE 802.3af compliant.
Port capability limited to one Class 1 (3.84 W) and one Class 2
(6.49 W) power device.
NET-1B: Ethernet ports ETH1 and ETH2
Type 10/100Base-TX (10/100Mbit, twisted pair, auto-MDI/MDIX or auto-
crossover)
Connector RJ45
Cable type LAN cable of category 5 (CAT5) or better
ETH port status
LED
• Physical link established, port active: green LED ON.
• Traffic via ETH port: yellow LED is blinking.
ETH Power over
Ethernet (PoE)
IEEE 802.3af compliant.
Port capability limited to one Class 1 (3.84 W) and one Class 2
(6.49 W) power device.
