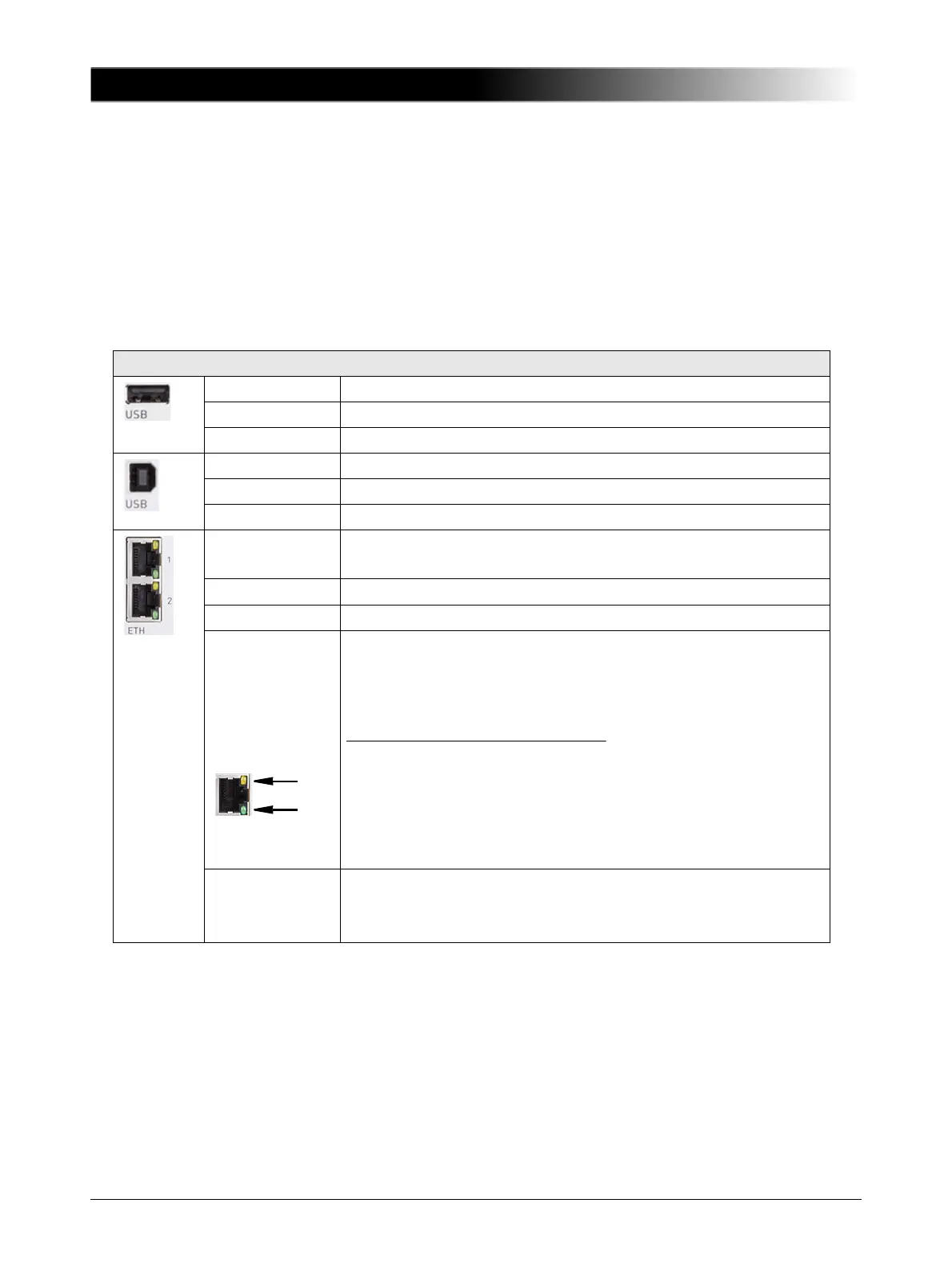

7.4 Technical Data of the Communication Ports
An overview:
A CMC 850 test set’s standard interface board is the NET-2 board that, in addition to ETH1, ETH2 and
USB, provides one extra USB port for the use of USB peripherals, such as memory sticks, etc.
CMC 850 test sets with a NET-1(x) board can be upgraded with the new NET-2 board.
7.4.1 The NET-2 Board
NET-2: 2 x USB port and Ethernet ports ETH1/ETH2
USB type USB 2.0 high speed up to 480 Mbit/s
USB connector USB type A (for future use of USB peripherals)
Output current 500 mA max.
USB type USB 2.0 high speed up to 480 Mbit/s; USB 1.1-compatible
USB connector USB type B (connect to computer)
USB cable USB 2.0 high speed type A-B, 2 m/6 ft.
ETH type
10/100/1000Base-TX
1
(twisted pair, auto-MDI/MDIX or auto-
crossover)
1. 10Base = 10 Mbit/s transfer rate
100Base = 100 Mbit/s transfer rate
1000Base = 1000 Mbit/s transfer rate
ETH connector RJ45
ETH cable type LAN cable of category 5 (CAT5) or better
ETH port status
LED
Depending on the ETH type of your NET-2 interface board’s
counterpart, the status LED’s behavior varies.
Physical link established, port active:
If there is traffic via an ETH port, the active LEDs start blinking.
ETH Power over
Ethernet (PoE)
IEEE 802.3af compliant.
Port capability limited to one Class 1 (3.84 W) and one Class 2
(6.49 W) power device.
Mbit/s Active LED ON
10 yellow
100 green
1000 yellow + green
