OMNI-624/OMNI-624EU Installation and Setup Guide
3-2

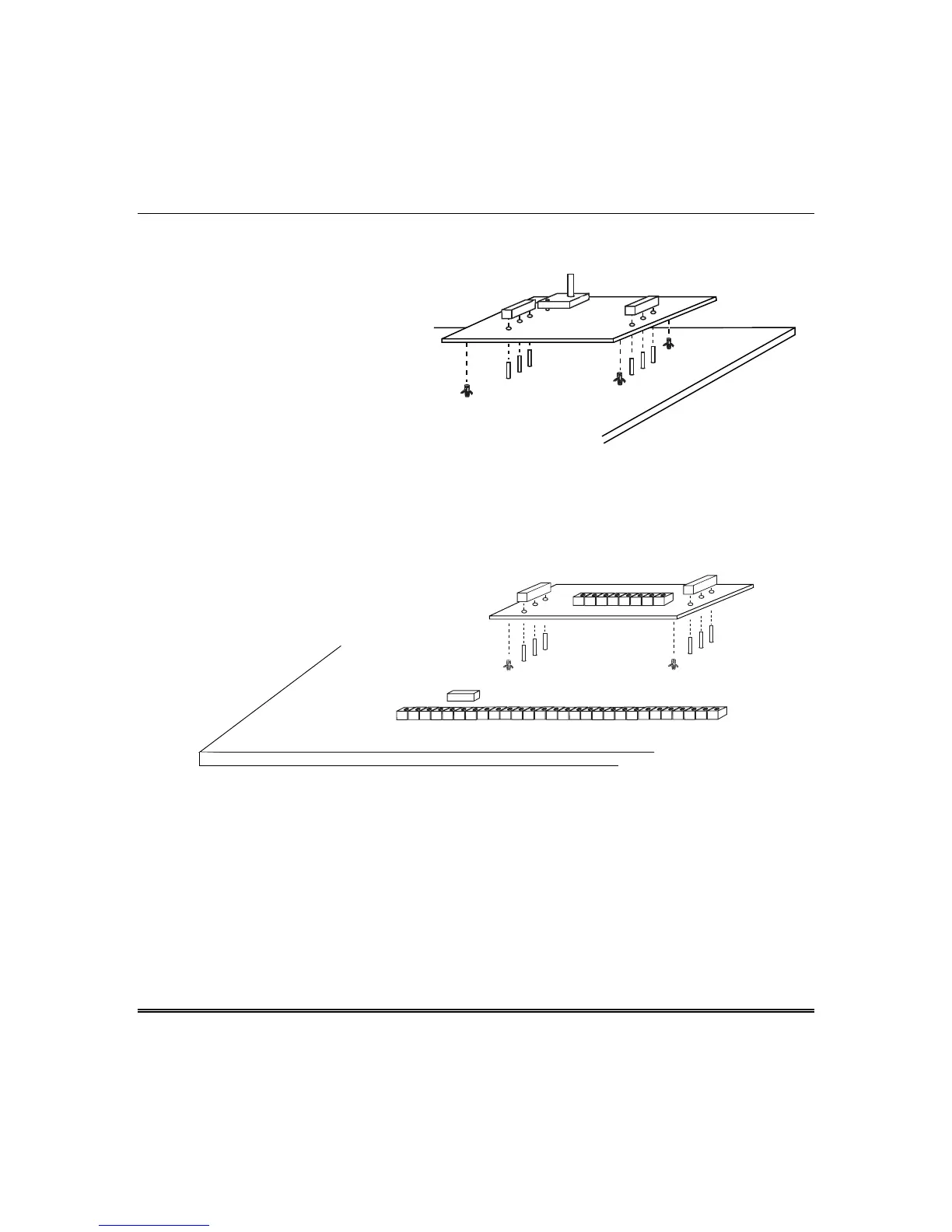

Mounting the RF Expander Module
1. Mount the receiver board on top of the
control PC board as shown in the
diagram at right.
2. Insert grounding lugs (supplied) into
the left-hand terminals of the antenna
blocks and secure them to the cabinet
with the screws provided.
3. Insert the receiver's antennas through
the top of the cabinet into the blocks'
right-hand terminals. Tighten screws.
BOARD
ZR-401/ZR-402EU/OMNI-RF
RF RECEIVER
OMNI624-004-V0
Mounting the Zone Expander Module
1. Mount the zone expander board onto the control PC board pins where shown in the diagram below.
2. Connect zone wiring as shown on the wiring diagram earlier in this manual.
BOARD
OMNI-EXP 8
HARDWIRE ZONE EXPANDER
OMNI624-005-V0
Keypad Mounting Instructions
The security system is compatible with the following addressable keypads:
•
LCD (alpha) Keypad: OMNI-LCD
•
Fixed-Word Keypad: OMNI-KP
•
LED Keypad: XK-108L and XK-108
See the Installation Instructions provided with the keypads for mounting procedures.
