OMNI-624/OMNI-624EU Installation and Setup Guide
6-4
ALARM
FIRE
INSTANT
BYPASS
TRBL
PAGE
STAY
SUPRVSN
CANCELED
CHIME
BAT
NOT READY
PHONE
TEST
TAMPER NO AC
21
FIXED
DIGITS
SUBMODE
INDICATORS
QUESTION
NUMBER
INDICATOR
LCD
DISPLAY
OMNI624-008-V0

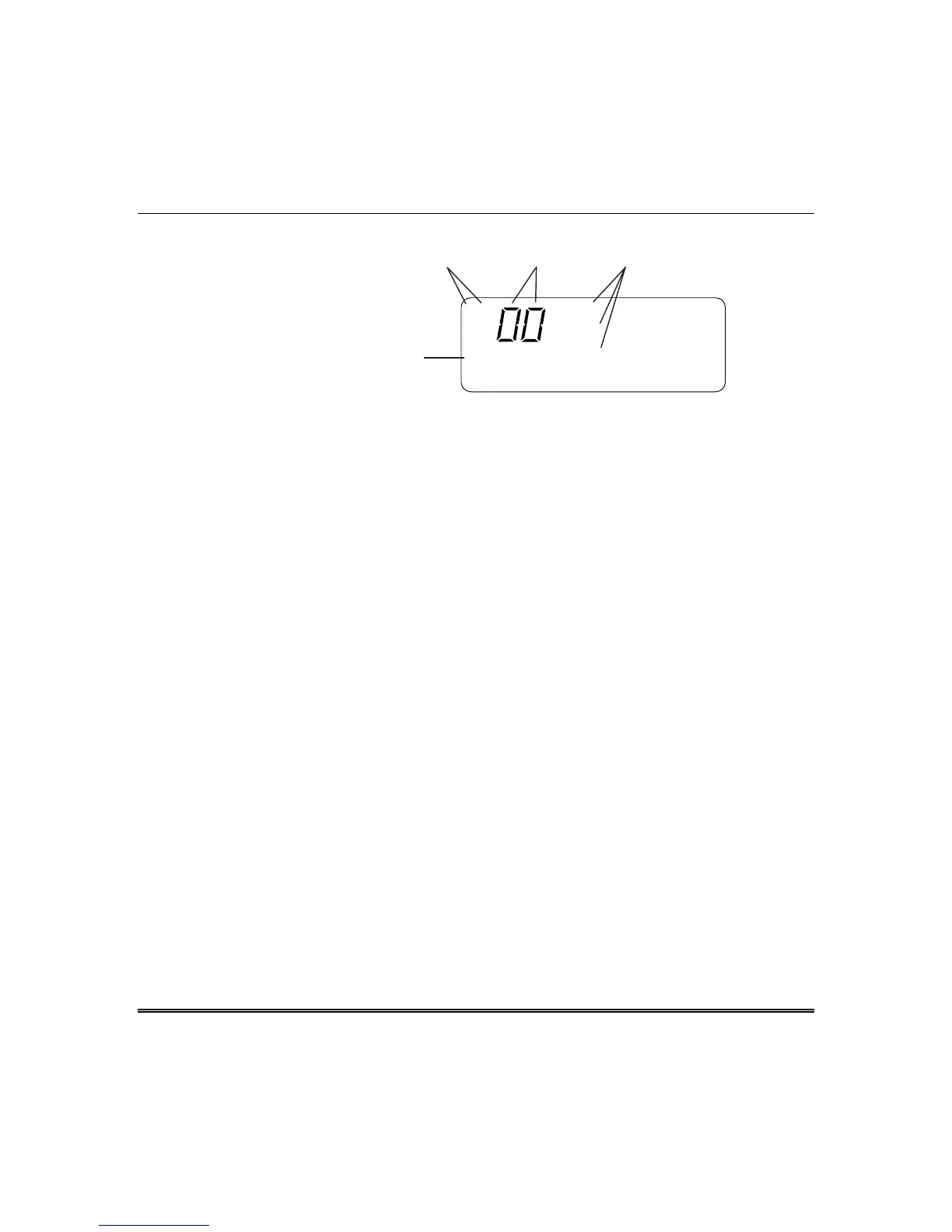

Submode Indicators = STAY, INSTANT, and BYPASS indicators:
The STAY, INSTANT, and
BYPASS indicators provide the current submode number. The current submode number is as follows:
STAY lit, INSTANT and BYPASS off = submode 1
STAY and INSTANT lit, BYPASS off = submode 2
STAY, INSTANT, and BYPASS lit = submode 3
NOTE:
Submode 4 cannot be displayed on a fixed-word keypad. Submode 4 contains descriptive
information for display on an LCD keypad. Therefore, programming in submode 4 would be
meaningless on a fixed-word keypad.
Question Numbers = ALARM indicator and LCD display:
While ALARM is lit, the LCD digits are
displaying a question number. When a question number is entered on the keypad, ALARM will light
and the LCD digits will display the question number for 2 seconds before automatically changing to a
display of the Location and Location Content. ALARM extinguishes when the display switches to
Location/Location Content.
Location and Location Contents = Fixed Digits and LCD display:
The location number will
normally be shown in the first-character position of the 2-character LCD display. However, when the
question contains more than 9 locations, the fixed digits will be used with the first LCD character to
indicate locations 10 through 19 (fixed digit 1 and the LCD character) or 20 through 29 (fixed digit 2
and the LCD character). While the location number is being displayed, the content of the location is
displayed in the second-character position of the 2-character LCD display.
KEY ENTRIES
The below listing provides the function of certain key sequences when a fixed-word keypad is used to
program the system.
