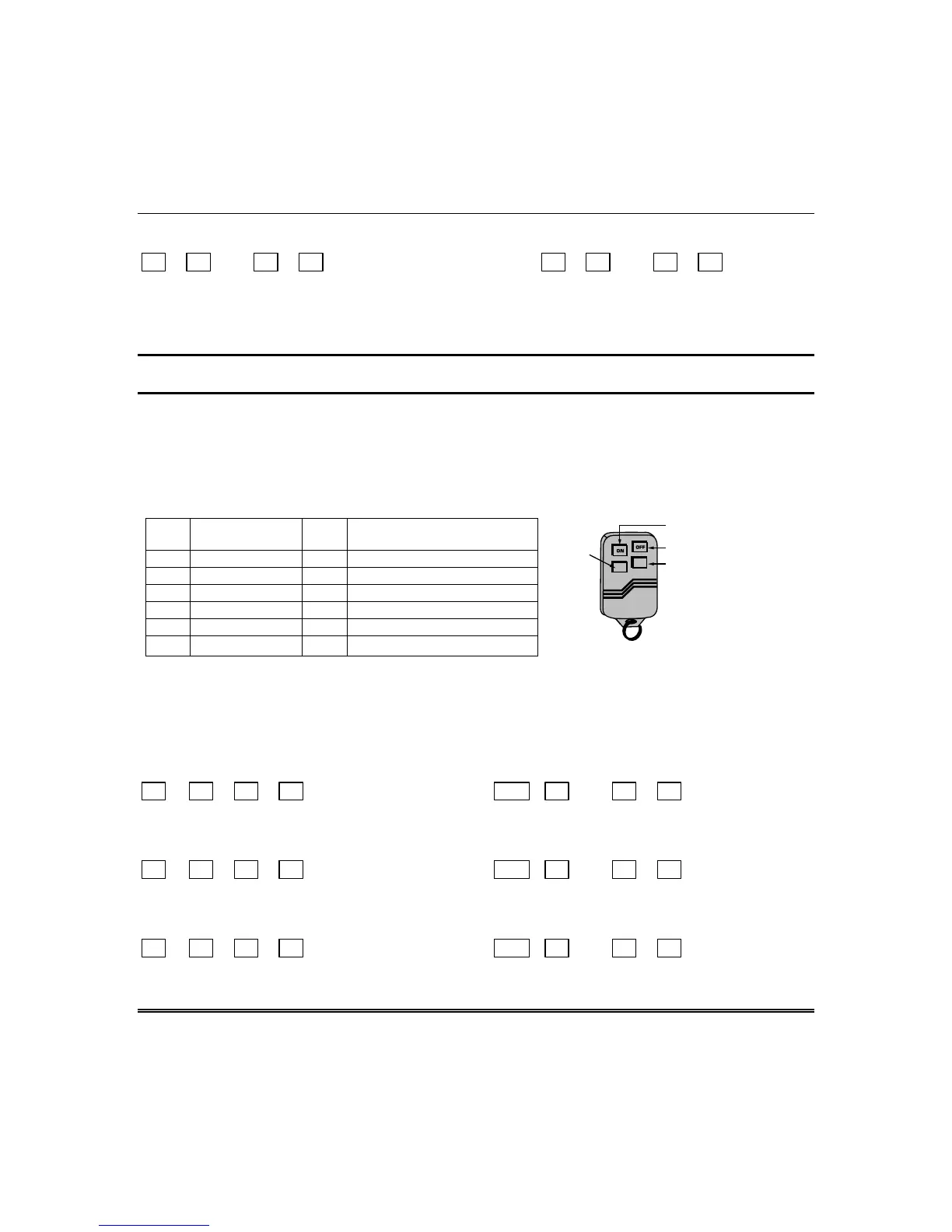

Section 6. System Programming
6-41
Q44 KEYPAD MAPPING for PARTITION 1 Q45 KEYPAD MAPPING for PARTITION 2
L1 L2 L3 L4 L1 L2 L3 L4
LCD Keypads Non-LCD keypads LCD Keypad Non-LCD keypad
This question assigns keypads to ptn. 1. This question assigns keypads to ptn. 2.
Enter the digits from the tables above. Enter the digits from the tables above.
QUESTIONS 46–48 NOT USED
QUESTIONS 49–64 KEYFOB BUTTON FUNCTIONS and USERS
The following odd-numbered questions set the RF keyfob button functions. The even-numbered
questions assign the partition in which the keyfob functions and the associated users for open/close
reporting. See Installer Mode 3, Questions 25–32 to assign the number of buttons used by each keyfob
and to store their serial numbers.
For odd numbered questions,
enter the digits in each location as follows:
L1-L4
Entry Keyfob Function
L1-L4
Entry Keyfob Function
0
Disabled
6
Keypad Fire
1
Disarm
7
Keypad Panic
2
Arm Away
8
Keypad Aux.
3
Arm Stay
9
Relay Type 23 (mom. seconds)
4
Arm Instant
A
Relay Type 24 (mom. minutes)
5
Arm Stay/Instant
B
Relay Type 25 (toggle)
YOU MUST
PROGRAM
THIS BUTTON
LOOP 3
LOOP 1
LOOP 2
LOOP 4
5804 Wireless Key
For even-numbered questions,
enter the digits as follows (L1: not used):
L2: Enter the partition number (P1=1; P2=2) for arming/disarming for this keyfob. This defines the
partition in which the keyfob is located.
L3/L4: Enter the user number (01–32) associated with this keyfob. Enter the first digit of the user
number in L3 and enter the second digit in L4.
Q 49 KEYFOB 1 FUNCTIONS Q 50 KEYFOB 1 USER
N/A
L1 L2 L3 L4 L1 L2 L3 L4
Button 1 Button2 Button 3 Button 4 Arm Part. User number
Q 51 KEYFOB 2 FUNCTIONS Q 52 KEYFOB 2 USER
N/A
L1 L2 L3 L4 L1 L2 L3 L4
Button 1 Button2 Button 3 Button 4 Arm Part. User number
Q 53 KEYFOB 3 FUNCTIONS Q 54 KEYFOB 3 USER
N/A
L1 L2 L3 L4 L1 L2 L3 L4
Button 1 Button2 Button 3 Button 4 Arm Part. User number
