4
Setup
The satellite speakers provide M8 threaded inserts for attaching the U-brackets which allow for wall or ceiling
installation. Use the optional extension U-brackets to mount the satellite speakers on top of each other.
M10 threaded inserts at the top and bottom are provided to mount the speakers onto the optional stand or
distance tube, or a truss or similar rigging structure via a clamp. With the optional stand adaptor the satellites
can be placed on a stand or distance tube with a standard tube diameter of 35 mm.
The BOB-10A and BOB-82X subwoofers can be placed as desired. Model BOB-10A is stackable when set
up horizontally. Both models have an M20 flange for mounting BOB-4 satellite speakers via the optional
distance tube.
The following accessories are available, the corresponding order numbers can be found in chapter 9.

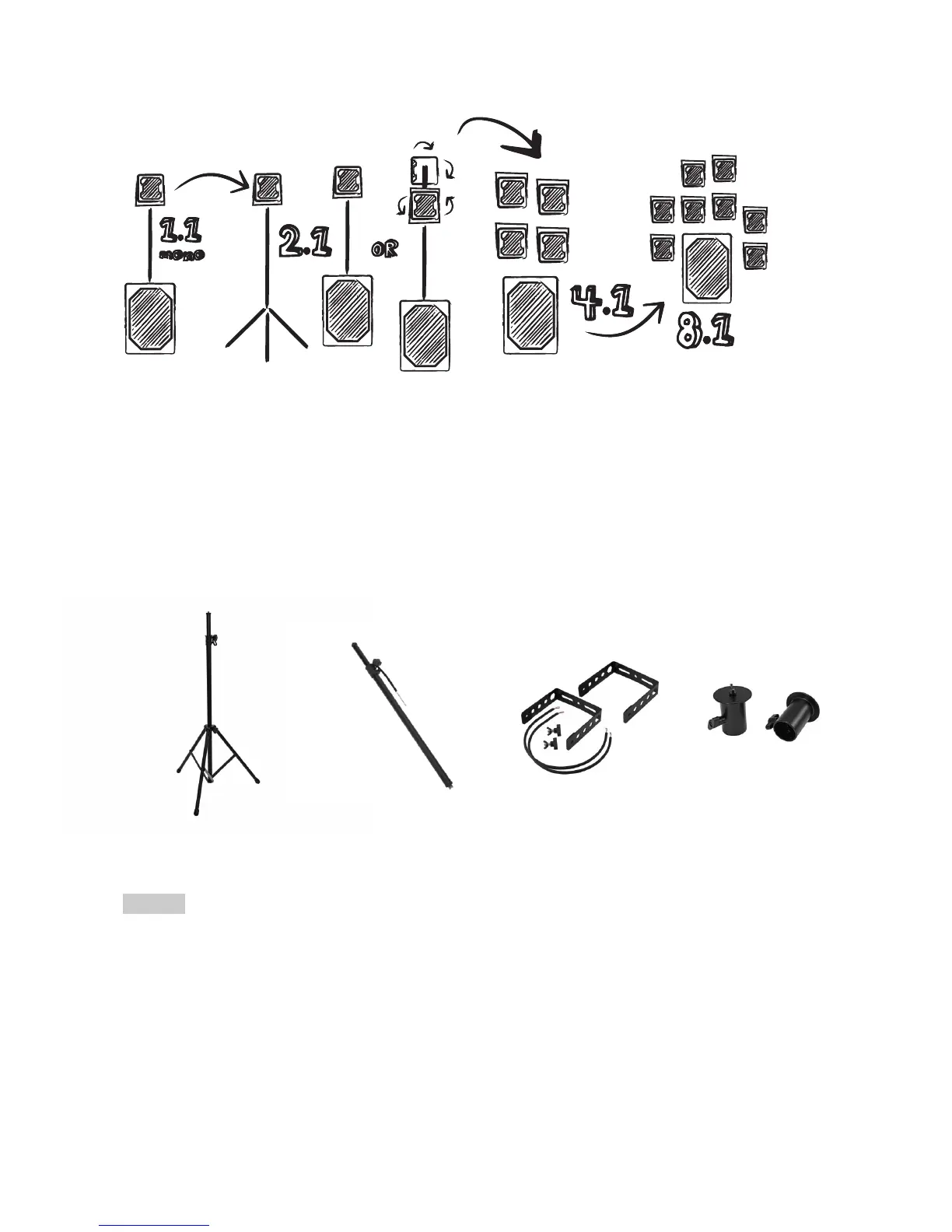

Stand Distance tube Extension bracket Stand adaptor
Notes
Always install the PA system at a solid, plane, anti-slip, vibration-free, and oscillation-free location. Lay the
connection cables in such a way that nobody will trip over the cables. When stacking subwoofers lash them
up via clamping belts and protect them against flipping over. For overhead installation the satellites must
always be secured with an appropriate secondary attachment (e.g. safety bond). The products must be
installed securely and prevented from falling down. Serious injury to persons can be caused if the speaker
systems fall down. If you lack the qualification, do not attempt the installation yourself, but instead use a
professional installer. Improper installation can result in bodily injury and or damage to property. For
commercial use the country-specific accident prevention regulations of the government safety organization
for electrical facilities must be complied with at all times.
with M10 mounting thread,
height 107-170 cm
with M10 mounting thread,
height 67-117 cm
