Control circuit
■Input terminals
• All COM terminals are at the same potential.
• When connecting a power supply between 1-9, A, B and COM, switch SW5 to the external power
supply (EX).
• You can switch between the sink/source logic of input terminals by using SW6.

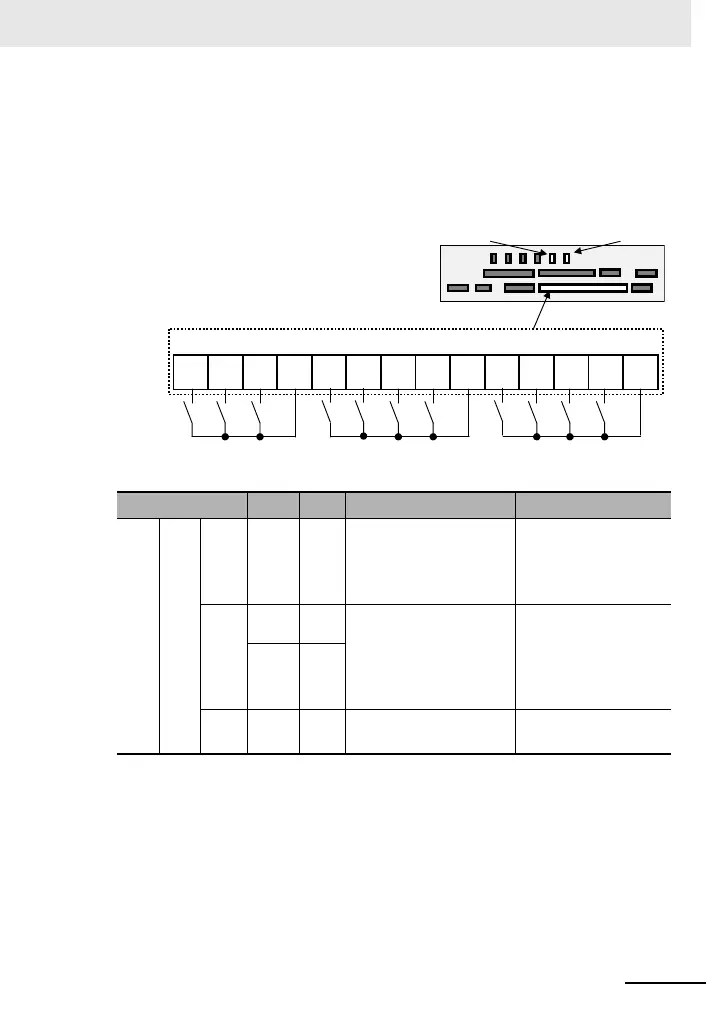

(Wiring example)
• Indicates the factory default setting.
Terminal
symbol
Terminal
name
Description Electrical characteristics
Input
terminal
Digital
input
Contact
9, 8, 7, 6,
5, 4, 3, 2,
1
Input
terminal
You can select terminal functions
using the parameter settings corre-
sponding to each terminal. You can
switch between the sink logic and
source logic by switching SINK/SRC
of SW6.
Voltage between each input/COM
• ON voltage Min. DC18V
• OFF voltage Max. DC3V
• Maximum allowable voltage
DC27V
• Load current 5.6mA (at DC27V)
Contact/
pulse
A
Pulse
input-A
This is a terminal for pulse input. A
and B terminals can be used also as
an input terminal.
Terminal functions are selectable
according to the parameter settings
for each terminal.
The maximum input pulse rate is
32kpps.
Voltage between each input/COM
• ON voltage Min. DC18V
• OFF voltage Max. DC3V
• Maximum allowable voltage
DC27V
• Load current 5.6mA (at DC27V)
• Maximum 32kpps pulse input
B
Pulse
input-B
Common COM
Common
for input
terminal
Common terminals for digital input ter-
minals (1, 2, 3, 4, 5, 6, 7, 8, 9, A, B).
There are three COM terminals.
input
1
[RS]
2
[SCHG]
3
[JG]
4
[FRS]
5
[2CH]
6
[CF1]
7
[CF2]
8
[RV]
9
[FW]
A
[EXT]
B
[USP]
COMCOMCOM
Control circuit terminal
area
SW6
SW5
