Omron 61F-GP-N User Manual

3
61F-GP-N@

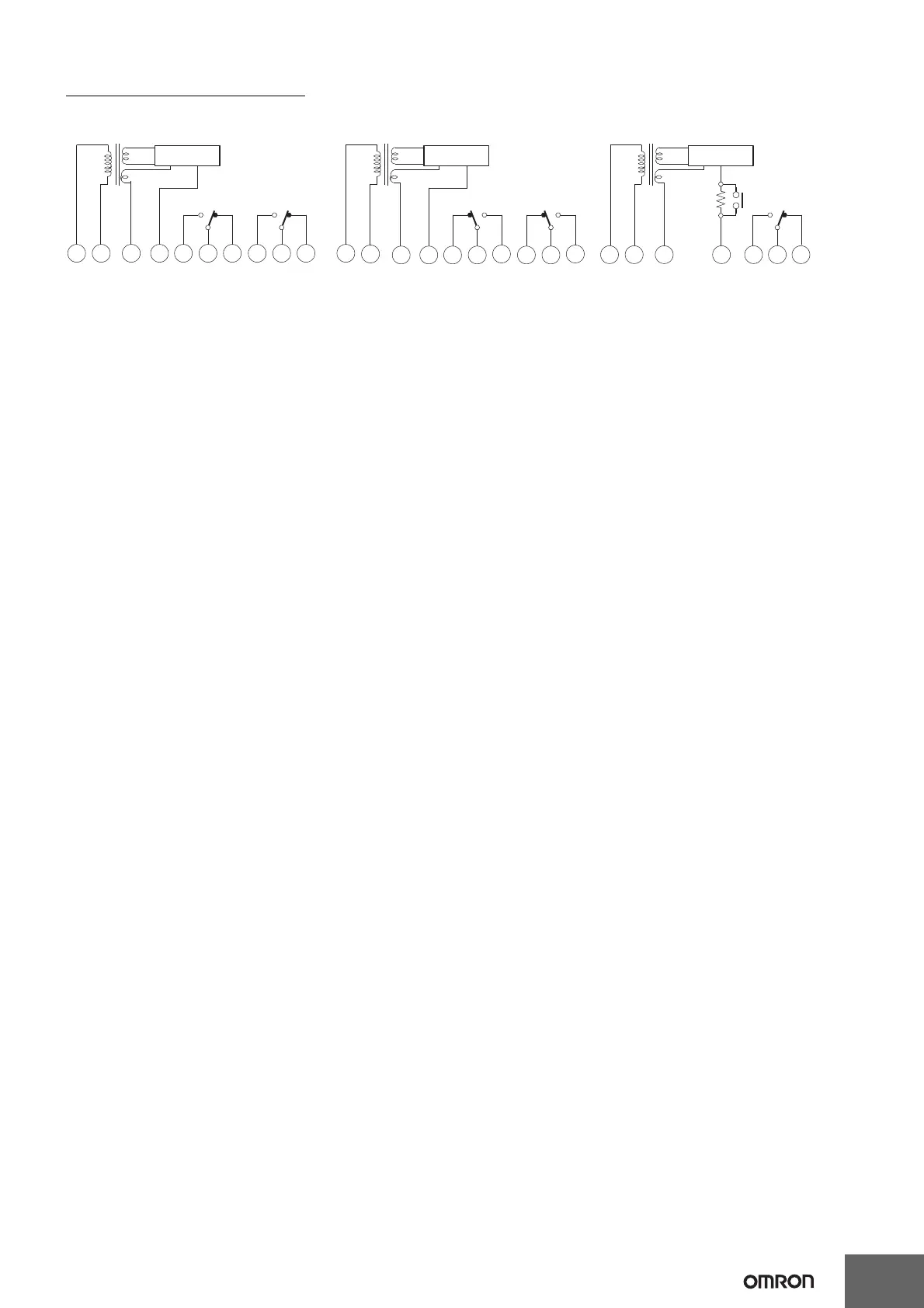

Internal Circuit Diagrams
Note: When applying a self-holding circuit, short between terminals 5 and 6 and use terminal 7 as E2.
61F-GP-N/-NT/-NL/-ND 61F-GP-NR61F-GP-NH
3 9 14 1011
U
24 V
8 V
Control circuit
S 0 S 1 E 3
5
E
1 Ta 1 Tc 1 Tb 1
867
U
Ta 2 Tc 2 Tb 2
3 9 14 1011
U
24 V
8 V
Control circuit
S 0 S 1 E 3
5
E
1 Ta 1 Tc 1 Tb 1
867
U
Ta 2 Tc 2 Tb 2
3
9
1
4
1011
U
24 V
8 V
Control circuit
S 0 S 1 E 3
5
E
1 Ta 1 Tc 1 Tb 1
U
Power supply Power supply Power supply
(See note.) (See note.)

Omron 61F-GP-N Specifications

General

Control Output	Relay
Contact Configuration	SPDT
Rated Current	5A
Rated Voltage	250 VAC
Operating Force	Not Applicable
Operating Temperature Range	-10 to 55°C
Electrical Life	100, 000 operations
Contact Rating	5A at 250 VAC
Mounting Type	Panel
Electrode	Separate Electrode Required
Mechanical Life	5, 000, 000 operations
Supply Voltage	100/110/120 VAC, 200/220/240 VAC
