7. Using the UPS monitoring software and contact signal
When using in combination with the BUC26 cable (sold separately), the OS standard UPS service in
Windows Server 2003/XP/2000/NT can be used. When there is a power failure, the computer can be shut
down.

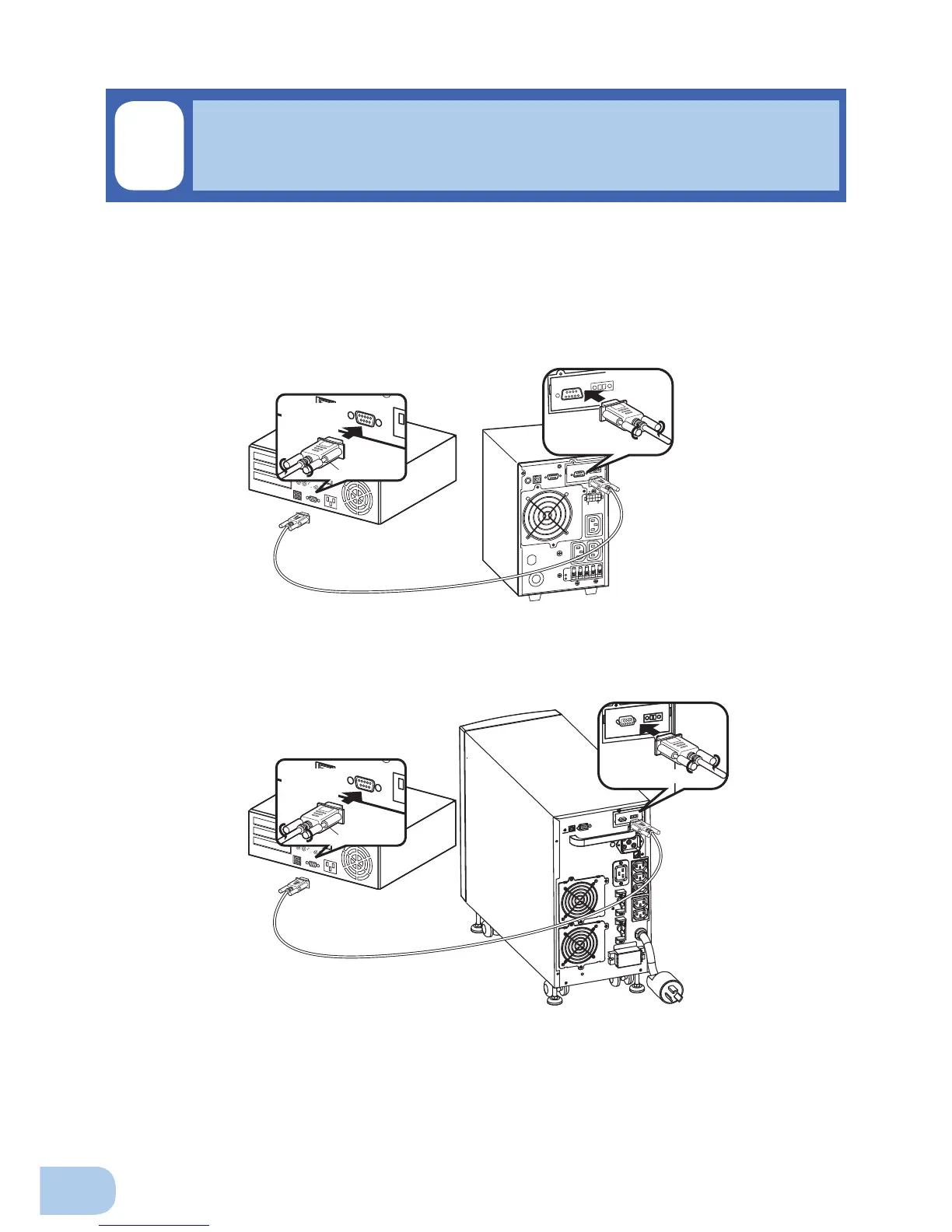

1. Connect the UPS to a computer.
Cable: Connection cable (BUC26), sold separately
* Only 1 computer can be connected to the UPS
Connector
Connect to
RS-232C
terminal
Connect to RS-232C
port on PC
BU1002SW
Connection cable (BUC26)
Connector
Connect to
contact signal
connector on UPS
BU3002SW
Connector
Connect to
RS-232C
terminal
Connect to RS-232C
port on PC
Connection cable (BUC26)
Connector
Connect to
contact signal
connector on UPS
7-3
When performing auto-save functions using
the standard UPS service in Windows Server
2003/XP/2000/NT
