Omron C200HX Series User Manual

Appendix AStandard Models
103

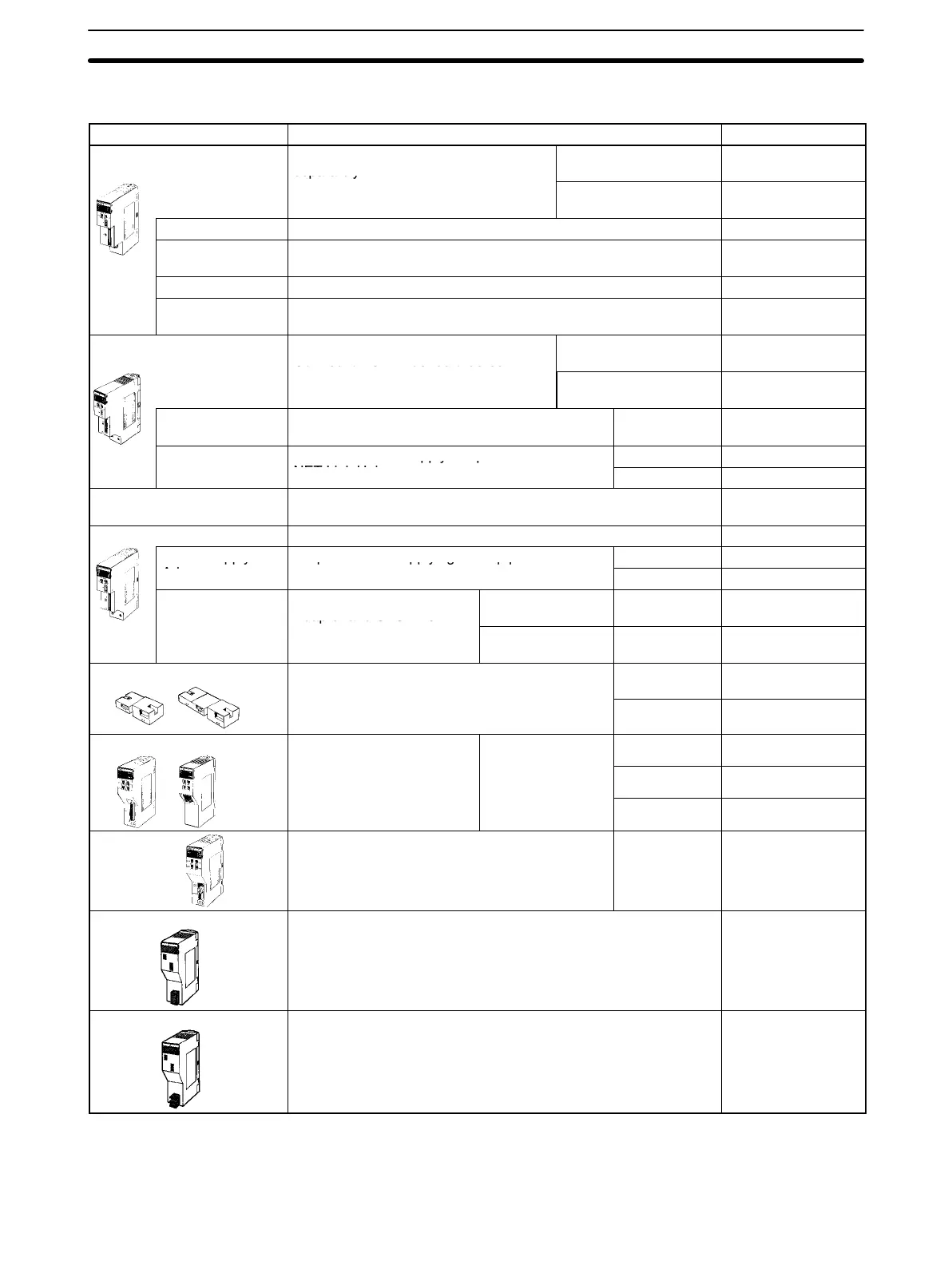

Communication Units
Name Specifications Model number
SYSMAC LINK Unit
(coaxial cable)
A Bus Connection Unit must be ordered
separately.
Data link table:
918 words
C200HW-SLK23
sepa a e y
Data link table:
2,966 words
C200HW-SLK24
Terminator One required for each node at ends of System. C1000H-TER01
Attachment
Stirrup
Provided with SYSMAC LINK Unit. C200H-TL001
F Adapter To connect network C1000H-CE001
F Adapter
Cover
To connect network C1000H-COV01
SYSMAC LINK Unit
(optical fiber cable)
Connect with H-PCF cable. A Bus
Connection Unit must be ordered
Data link table:
918 words
C200HW-SLK13
Co ec o U us be o de ed
separately.
Data link table:
2,966 words
C200HW-SLK14
Power Supply
Adapter
Required when supplying backup power For 1 or 2
Units
C200H-APS03
Power Cable Connects Power Supply Adapter and SYSMAC
NET Li k U i
For 1 Unit C200H-CN111
pp y p
NET Link Unit.
For 2 Units C200H-CN211
SYSMAC LINK Support
Board (coaxial cable)
To connect IBM PC/AT or compatible as node in SYSMAC LINK
system
3G8F5-SLK21-E
SYSMAC NET Link Unit A Bus Connection Unit must be ordered separately. C200HS-SNT32
Power Supply
Ad
Required when supplying backup power For 1 Unit C200H-APS01
pp y
Adapter
qppygpp
For 2 Units C200H-APS02
Power Cable Connects Power Supply
Adapter and SYSMAC NET
Included with
C200H-APS01
For 1 Unit C200H-CN001
dap e a d S S C
Link Unit.
Included with
C200H-APS02
For 2 Units C200H-CN002
Bus Connection Units Connects SYSMAC LINK Unit or SYSMAC NET
Link Unit to C200HW-COM01/COM04-E
For 1 Unit C200HW-CE001
Link
Unit
to
C200HW COM01/COM04 E
Communications Board
For 2 Units C200HW-CE002
Host Link Units Rack-mounting C200H, C200HS,
C200HE
,
APF/PCF C200H-LK101-PV1
C200HE
,
C200HG, C200HX
RS-422 C200H-LK202-V1
RS-232C C200H-LK201-V1
PC Link Unit Single level: 32 Units
Multilevel: 16 Units
RS-485 C200H-LK401
CompoBus/D Master Unit --- C200HW–DRM21
CompoBus/S Master Unit --- C200HW–SRM21
