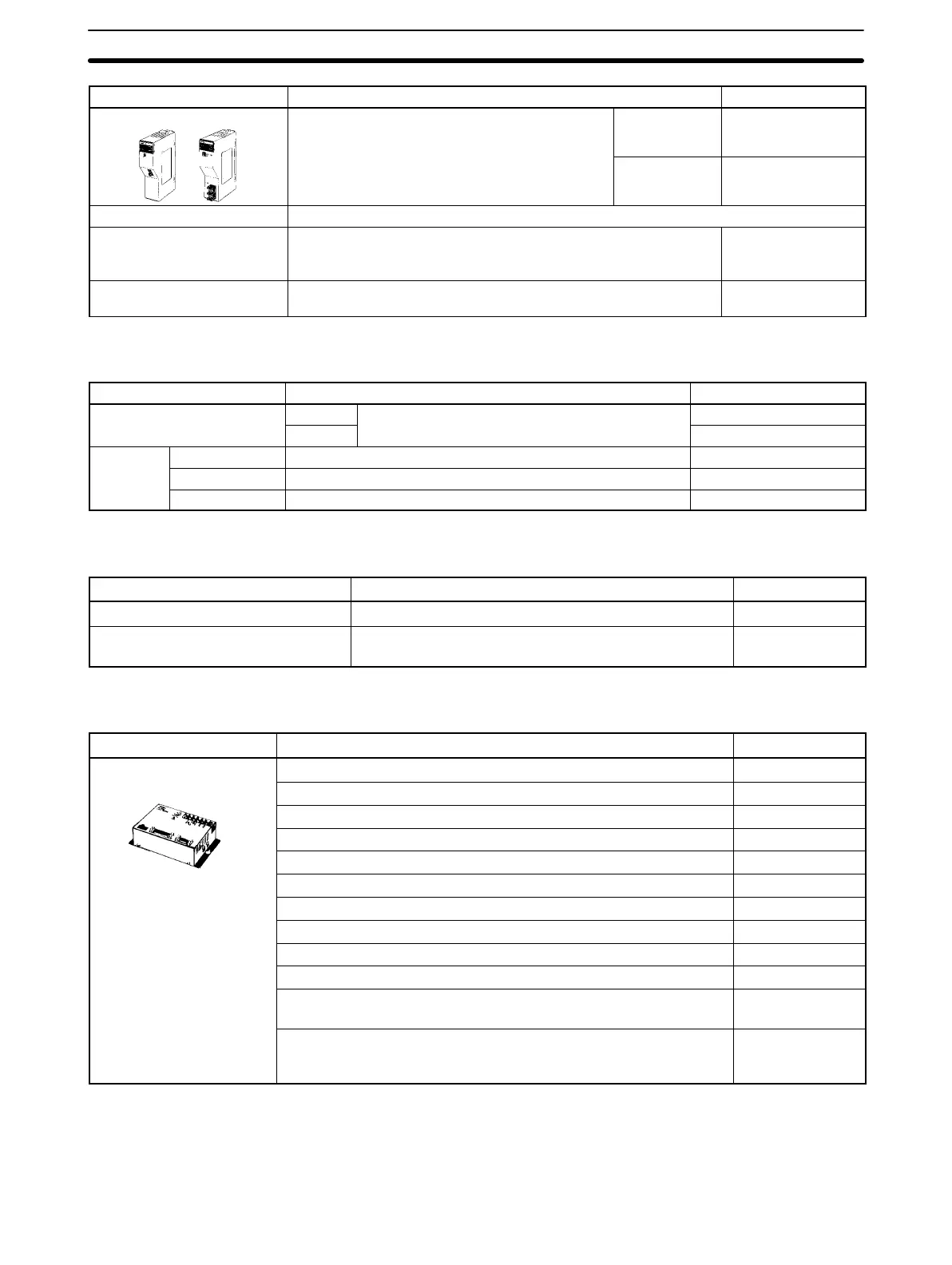

Standard Models Appendix A
104
Name Model numberSpecifications
Remote I/O Master
Units
Up to two per PC; connectable to up to 5 Slaves
per PC total
APF/PCF C200H-RM001-PV1
Wired C200H-RM201
Remote I/O Slave Units See Racks at beginning of product lists.
Controller Link Unit Enables data link and message communications.
Communications Board and Bus Connection Unit are required
separately.
C200HW-CLK21
PC Card Unit Compatible with the PMCIA2.1 and provided with two PC Card I/F
slots. Ethernet extension function added.
C200HW-PCU01
C200HW-PCS01
Other Wired Remote I/O System Products
Name Specifications Model number
Remote I/O Interface
Input
Either 12 or 24 VDC
G71-IC16
Output G71-OD16
I/O Blocks
AC Input Unit Either 120 or 240 VAC. G7TC-IA16
DC Input Unit Either 12 or 24 VDC G7TC-ID16
Output Unit Either 12 or 24 VDC G7TC-OC16
SYSMAC NET/SYSMAC LINK Hardware
Name Specifications Model number
SYSMAC NET Network Support Board For IBM PC/AT or compatible S3200-NSB11-E
SYSMAC LINK Network Support
Board
For IBM PC/AT or compatible, coaxial cable connector 3G8F5-SLK21-E
Link Adapters
Name Specifications Model number
Link Adapters
3 RS-422 connectors 3G2A9-AL001
3 optical connectors (APF/PCF) 3G2A9-AL002-PE
3 optical connectors (PCF) 3G2A9-AL002-E
1 connector for RS-232C; 2 for RS-422 3G2A9-AL003
1 connector each for APF/PCF, RS-422, and RS-232C 3G2A9-AL004-PE
1 connector each for PCF, RS-422, and RS-232C 3G2A9-AL004-E
1 connector each for APF/PCF and AGF 3G2A9-AL005-PE
1 connector each for PCF and AGF 3G2A9-AL005-E
1 connector for APF/PCF; 2 for AGF 3G2A9-AL006-PE
1 connector for PCF; 2 for AGF 3G2A9-AL006-E
O/E converter; 1 connector for RS-485, 1 connector each for
APF/PCF
B500-AL007-P
Used for on-line removal of SYSMAC NET Link Units from the
SYSMAC NET Link System, SYSMAC NET Optical Link Adapter 3
connectors for APF/PCF.
B700-AL001
To Next Page
