Omron CJ2M-CPU35 User Manual

7
．
Serial Communications Connection Procedure
33

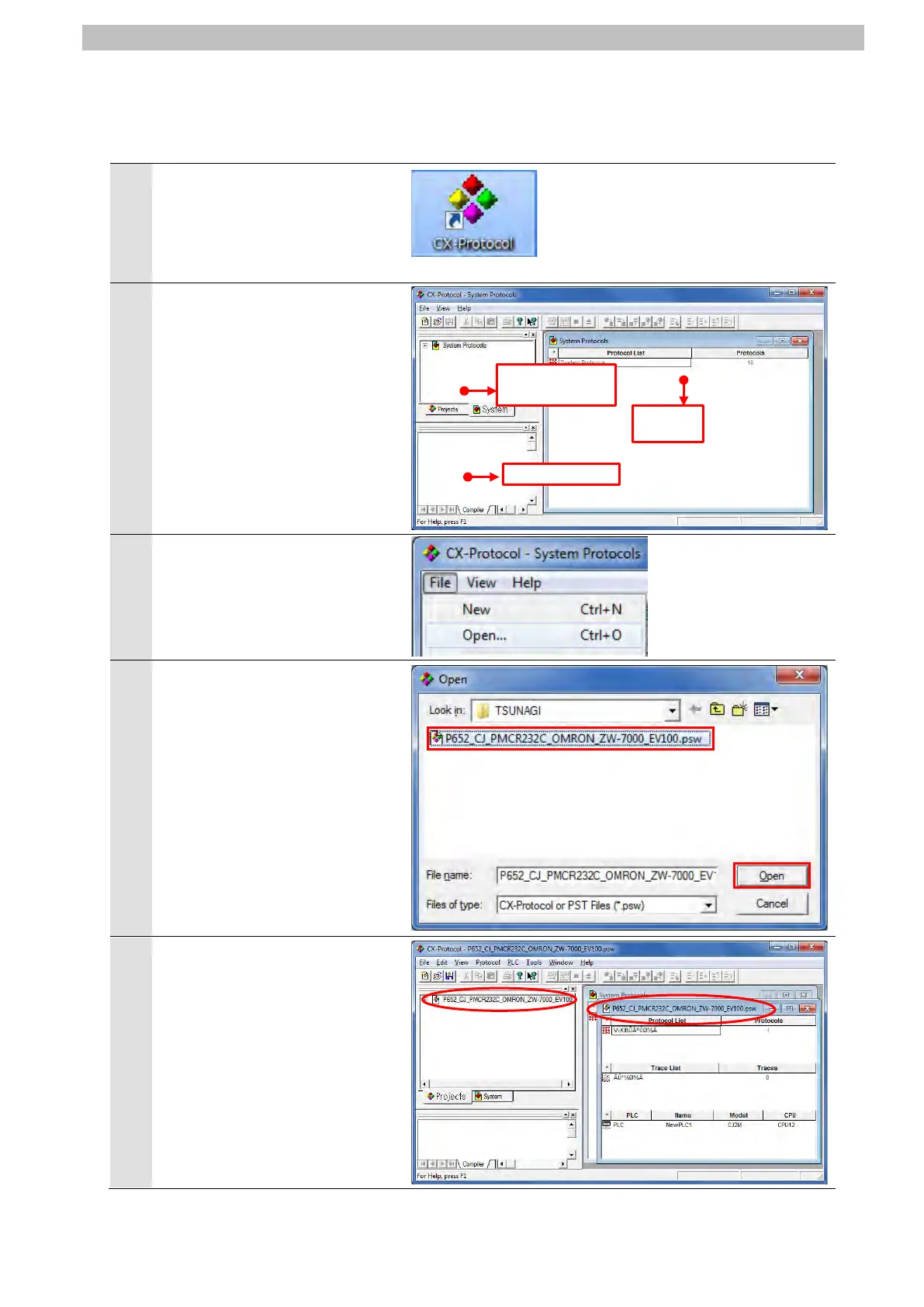

7.3.6. Starting the CX-Protocol and Opening the project file
Start CX-Protocol and open the project file.
1
Start CX-Protocol.
*If the User Account Control
Dialog Box is displayed at start,
make a selection to start
CX-Protocol.
2
Start CX-Protocol.
The following panes are
displayed in this window.
Top left: Project Workspace
Bottom left: Output Window
Right: Project Window
3
Select Open from the File Menu.
4
The Open Dialog Box is
displayed.
Select P652_CJ_PMCR232C_
OMRON_ZW-7000_EV100.psw
and click Open.
*Obtain a project file from
OMRON.
5
The project data read are
displayed in the Project
Workspace and in the Project
Window.
Project
Window
Project
Workspace
Output Window
