■ Approved Standards
Note: EMC conforms to EN 61131-2 clause 8 except in the following cases.
• When Expansion I/O Units with DC inputs are connected to a CPU Unit with an AC power supply, the burst immunity between power
supplies will be 1 kv.
• When the signal wire for transistor outputs exceeds 10 m, the surge immunity of DC output signal lines will not conform.

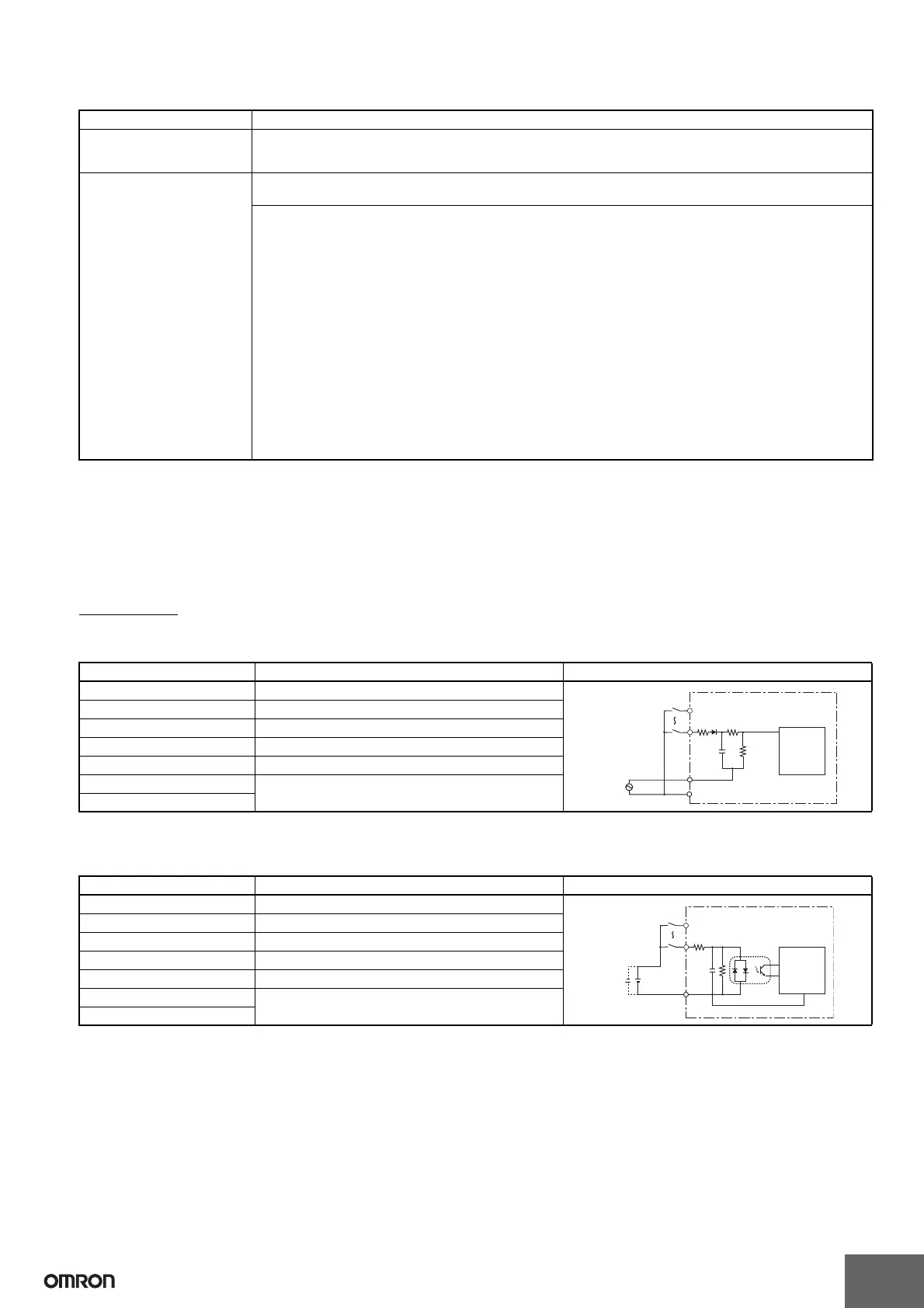

■ Input Specifications
CPU Units
AC Inputs (Not Isolated)
Note: Can be selected using the filter settings.
DC Inputs: I0 to I3 for Units with 10 I/O points, I0 to I9 for Units with 20 I/O Points (Not Isolated)
Note: Can be selected using the input filter settings, except when I0 is being used for an 8-digit counter with a high-speed input.
Item Specification
Safety standards cULus: UL508/CSA C22.2 No.142 (ZEN-PA03024 take Class I Div2)
Conforms to EN/IEC 61131-2 clause 11, excluding 11.7.2.2 (Overvoltage category 2 and Pollution degree II
conforms to IEC 60664-1)
EMC
(See note.)
Radiation Field Emission CISPR11 Class A, Group 1
Noise Terminal Voltage Emission CISPR11 Class A, Group 1
Electrostatic Discharge Immunity IEC61000-4-2 In air: 8 kV, In contact: 6 kV
Electromagnetic Field Immunity IEC61000-4-3 10 V/m
Electrical Fast Transient/Burst Immunity IEC61000-4-4 Power line
AC I/O: 2 kV
DC I/O: 1 kV
Surge Immunity IEC61000-4-5 Normal Noise
AC power supply, AC I/O: 1 kV
DC power supply, DC I/O: 0.5 kV
Common Noise
AC power supply, AC I/O: 2 kV
DC power supply: 1 kV
DC I/O: 0.5 kV
Immunity to Conducted Disturbances Induced by Radio-frequency Fields
IEC61000-4-6 3 V
Momentary Power Interruption Immunity IEC61131-2 CPU Units with AC Power Supplies:
10 ms max.
CPU Units with DC Power Supplies:
2 ms max. (level: PS1)
Item Specifications Circuit drawing
Input voltage 100 to 240 VAC +10%, −15%, 50/60 Hz
Input impedance 680 kΩ
Input current 0.15 mA/100 VAC, 0.35 mA/240 VAC
ON voltage 80 VAC min.
OFF voltage 25 VAC max.
ON response time 50 ms or 70 ms at 100 VAC (See note.)
100 ms or 120 ms at 240 VAC (See note.)
OFF response time
Item Specifications Circuit drawing
Input voltage 12 to 24 VDC +20%, −10%
Input impedance 5.3 kΩ
Input current 4.5 mA (typ.)/24 VDC
ON voltage 8 VDC min.
OFF voltage 5 VDC max.
ON response time 15 ms or 50 ms (See note.)
OFF response time
100 to 240 VAC
N
L
IN
IN
330 kΩ 300 kΩ
51 kΩ
Internal
circuit
12 to 24 VDC
5.1 kΩ 1.8 kΩ
IN
IN
COM
Internal
circuit

Omron CP2E Specifications

General

Expansion I/O Units	Up to 7 units
Model	CP2E
Type	Programmable Logic Controller (PLC)
Analog Inputs	Available via expansion units
Analog Outputs	Available via expansion units
Communication Ports	RS-232C
Ethernet Port	Yes
Power Supply	100 to 240 VAC or 24 VDC (depending on the model)
