Generating Virtual External Inputs Section 8-3
166
1,2,3…

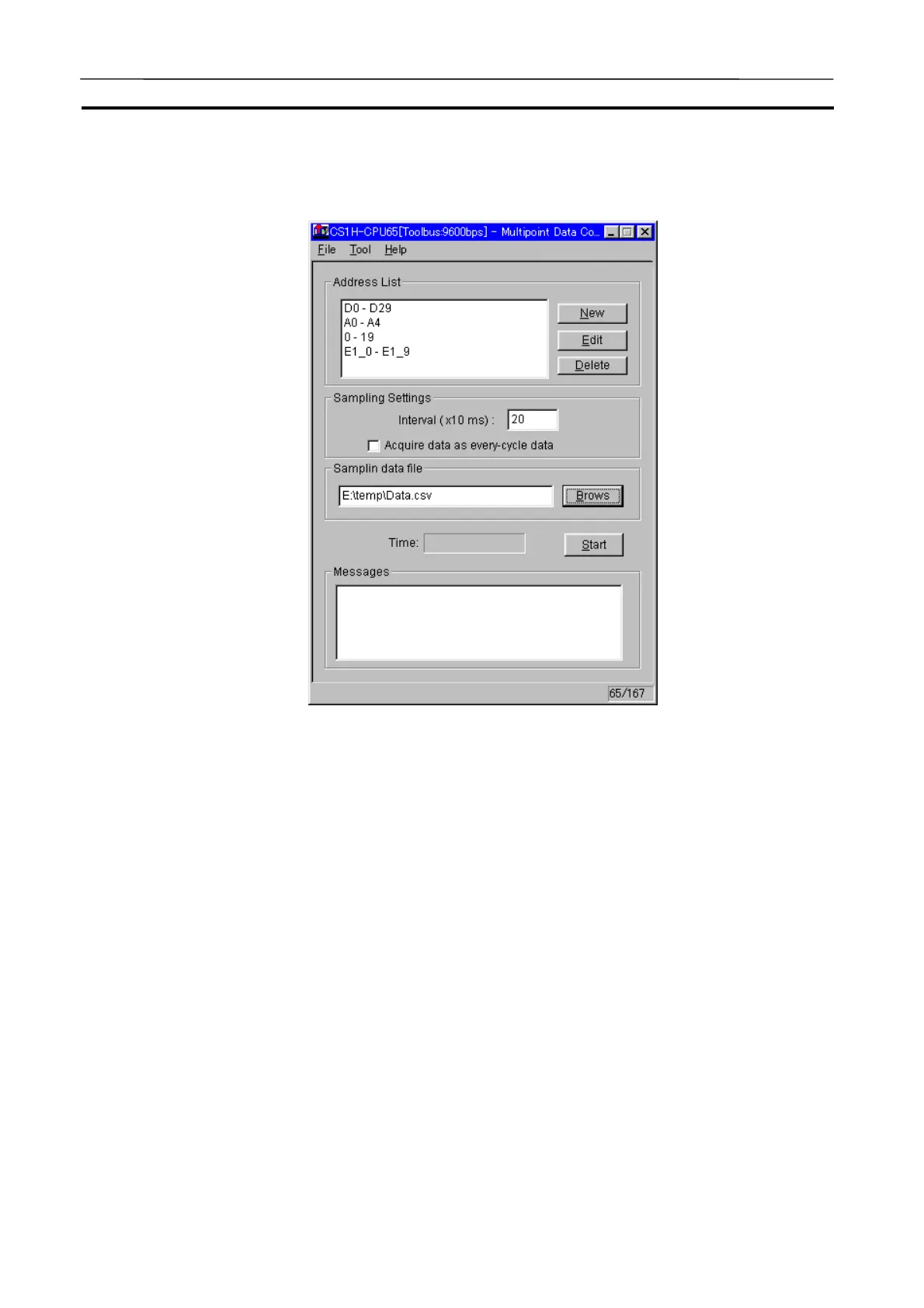

1. Select [Program] | [Omron] | [CX-Simulator] | [Multipoint Data Collection
Tool] to display the Multipoint Data Collection Tool dialog box.
· Address List An address to be sampled is displayed.
· New An address to be sampled is registered in the
form of “Start address – End address” in the
unit of word. Multiple addresses can be regis-
tered.
· Edit The content of the registered address can be
changed.
· Delete The registered address can be deleted.
· Sampling Interval A sampling interval can be set to a minimum of
100 ms. (in the unit of 10 ms)
· Acquire data as every-
cycle data
Check here to save the sampled data as every-
cycle data, independently of the PLC’s cycle
count. This is effective when acquiring data in
order to confirm operation with ON/OFF of the
bits. (allows efficient debugging when replaying
on the CX-Simulator.)
· Sampling data file Input a name of CVS file where the sampled
data will be saved.
· Browse Browse a name of save file to select.
· Start/Stop Pressing the Start button will start sampling.
Works as Stop button during execution.
· Time: Displays elapse time after starting sampling.
· Messages When an error occurs in the operation of the
Multipoint Data Collection Tool, the error con-
tent will be displayed.
· Exit Quit the Multipoint Data Collection Tool.
