3-6 Each Part of the Windows
This section explains each part of the windows in the CX-Simulator.
3-6-1 Basic Windows Arrangement
The basic operation of the CX-Simulator is performed in the [CX-Simulator
Debug Console] window and the [System Status Setting] window. The [CX-
Simulator Debug Console] window executes operation for the Ladder Engine.
The [System Status Setting] window displays the status of the Ladder Engine
and sets for the Ladder Engine.
Note: Only the [Debug Console] window will be displayed when the CX-Simulator is
started from the CX-Programmer.

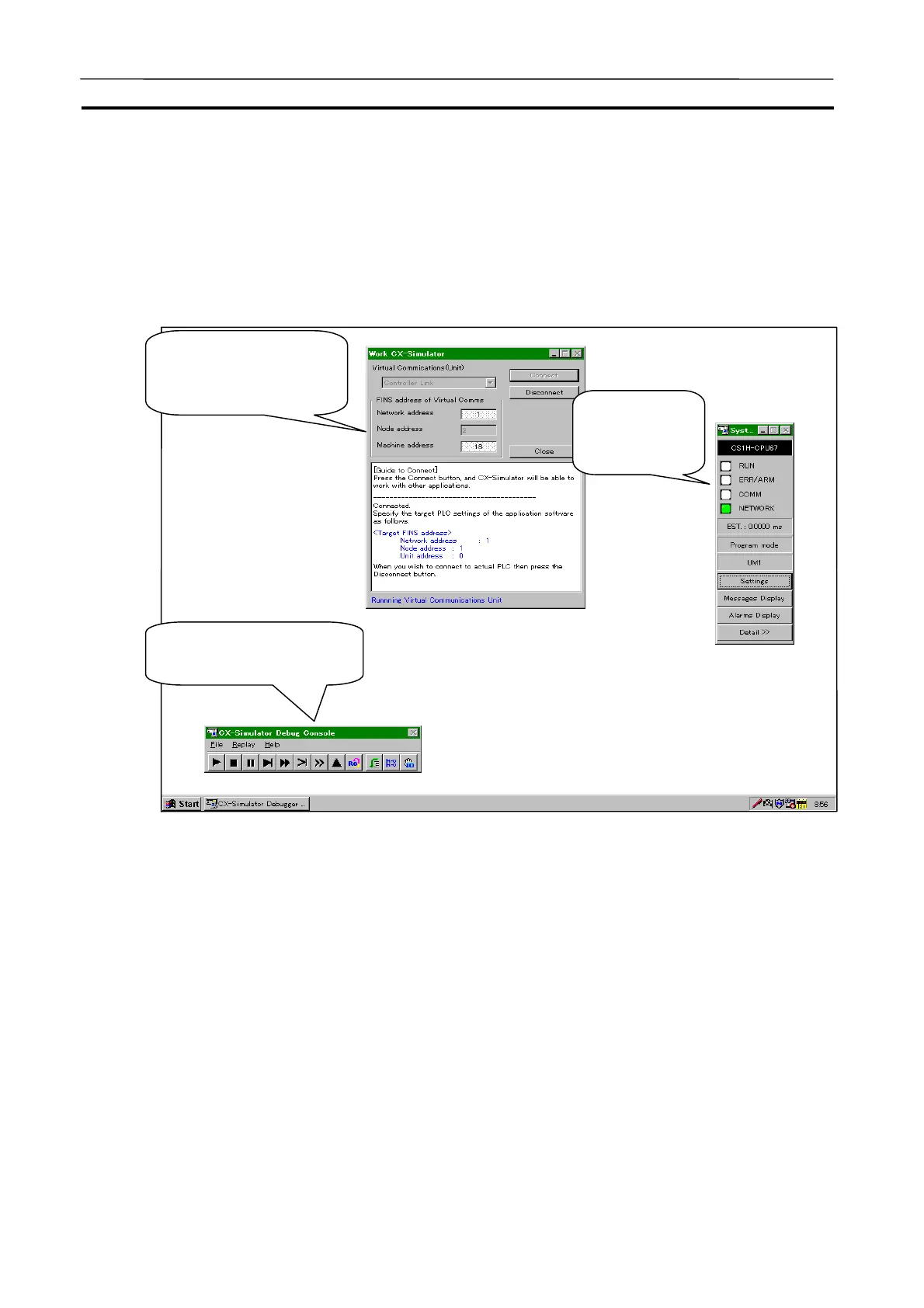

System Status
Setting (for
status display)
CX-Simulator Debug Console
(for running)
Work CX-Simulator
(for connecting CX-
Programmer)
