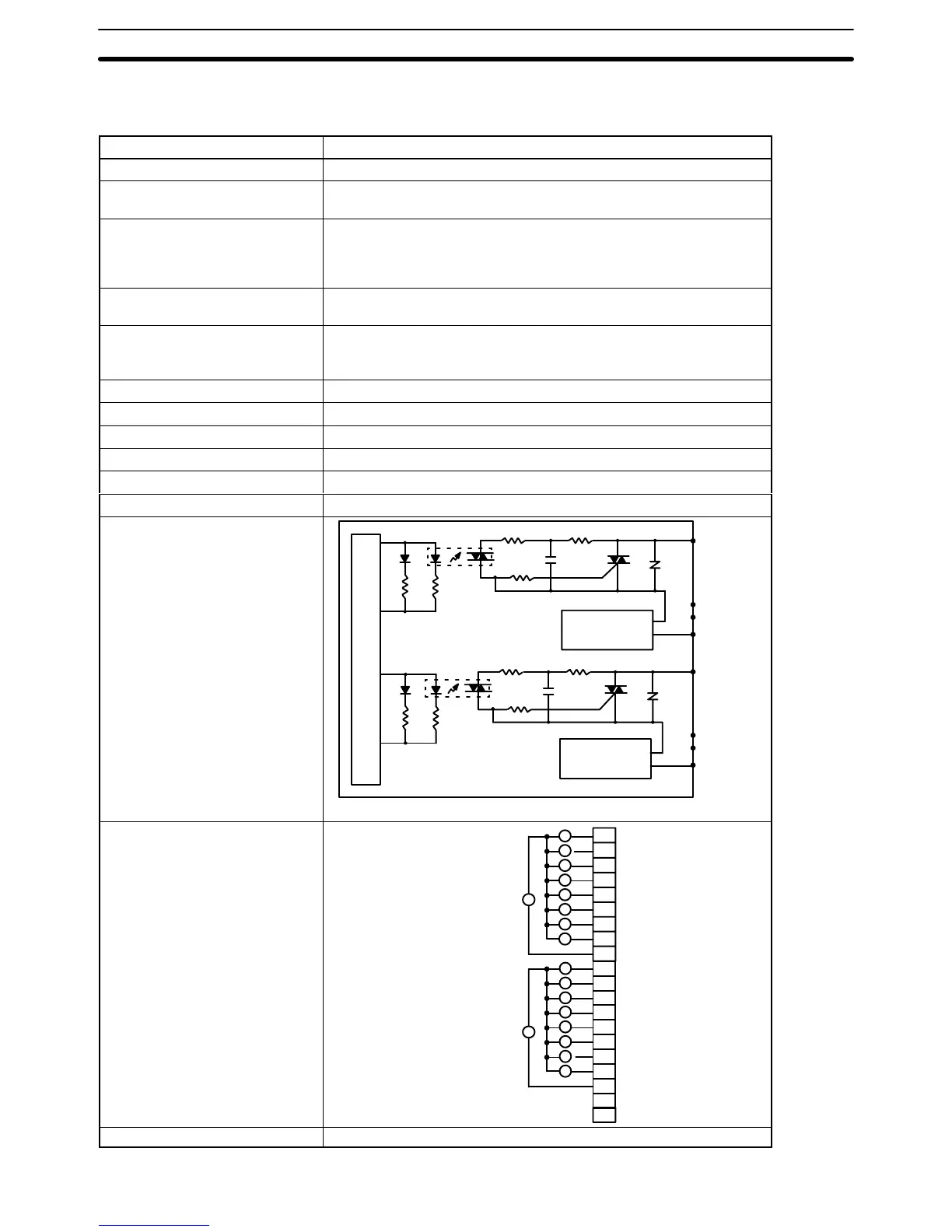

Omron CV500 Installation Guide

Appendix BSpecifications
125
Triac Output Units Continued
Item C500-OA226
Max. Switching Capacity 1.2 A, 250 VAC, 50/60 Hz (4 A/common, 5 A/Unit)
Max. Inrush Current 15 A (pulse width: 100 ms)
30 A (pulse width: 10 ms)
Min. Switching Capacity 100 mA, 10 VAC
50 mA, 24 VAC
10 mA, 100 VAC
10 mA, 240 VAC
Leakage Current 1.5 mA (120 VAC, 60 Hz) max.
3.0 mA (240 VAC, 60 Hz) max.
Residual Voltage 1.5 VAC (100 to 600 mA) max.
1.5 VAC (50 to 100 mA) max.
5.0 VAC (10 to 50 mA) max.
ON Delay 1 ms max.
OFF Delay 1/2 of load frequency + 1 ms max.
No. of Outputs 16 (8 outputs/common, 2 circuits)
Internal Current Consumption 450 mA, 5 VDC max.
Fuse Capacity 5 A, 250 V, 6.35 dia. x 32 (2 fuses)
Weight 600 grams max.
Circuit Configuration
Fuse/
fuse
blowout
detection circuit
OUT 00
OUT 07
COM
OUT 08
OUT 15
to
to
COM
OUT 06
OUT 14
Internal Circuit
The fuse is 5 A, 250 V and 6.35 mm dia. x 32 mm.
0.022 F
0.022 F
f Ωf Ω
f Ωf Ω
Fuse/
fuse
blowout
detection circuit
Terminal Connections
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
2
3
4
5
COM
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
0
1
6
7
8
9
10
11
12
13
14
15
COM
~
~
19
NC
NC
250 V AC max.
250 V AC max.
Dimensions C-shape
