24
5

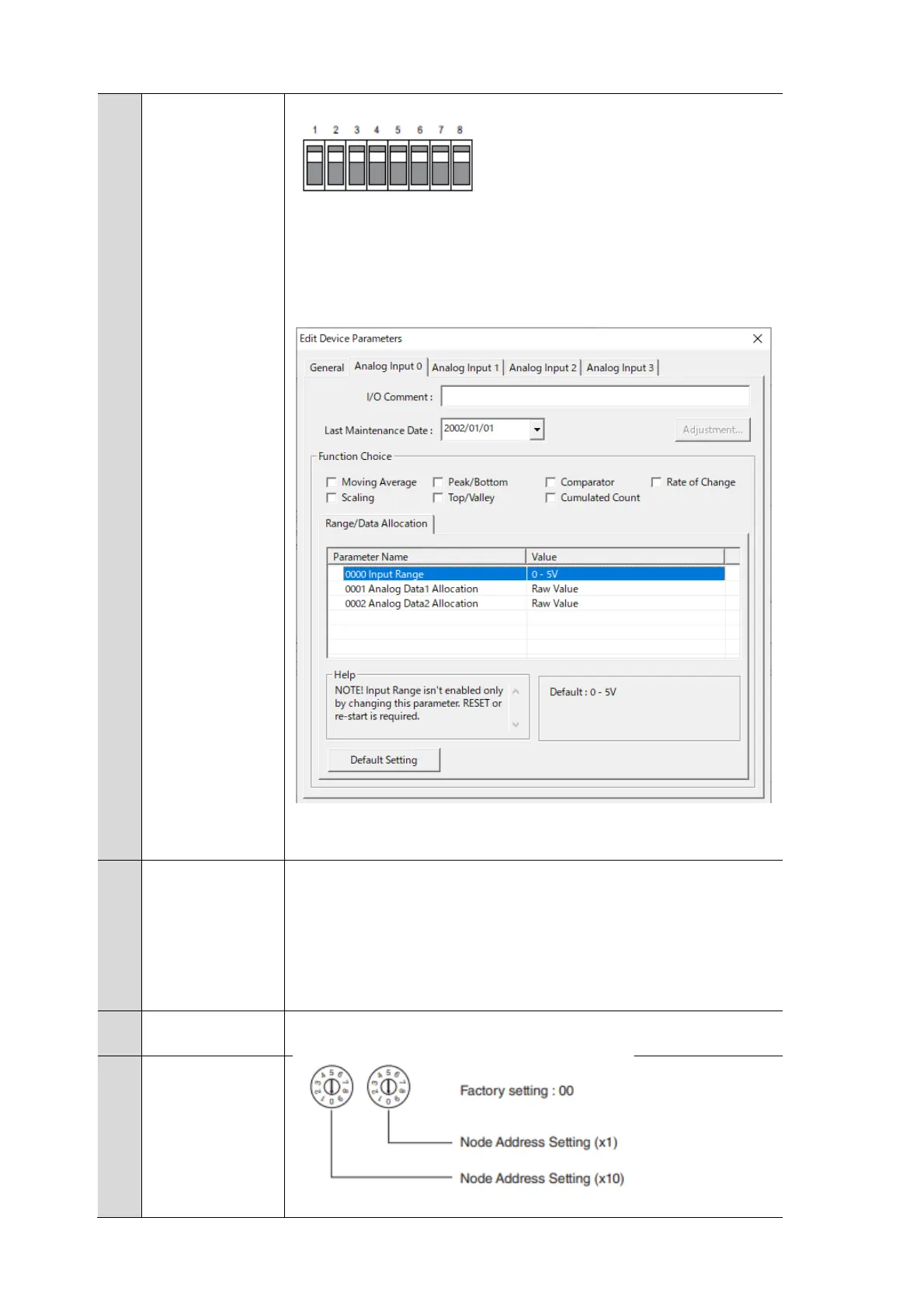

Check DRT2-
AD04 range.
■When DIP switch 8 is OFF, set with the Configurator.
Check the range that is being used.
①Double-click the slave to be set on the normal screen.
Then open the Edit Device Parameters screen. (In the Maintenance
Mode screen, right-click-"Parameter"-"Edit")
②Select the tab for the channel whose range you want to check.
■When DIP switch 8 is ON, it is not necessary to check the settings using
the DIP switch.
6
Sets R7D-SV4
range.
If DRT2-AD04 range is set to the DIP switch and all channels are set to
the same range, use the DIP switch to set R7D-SV4/YV2 range.
For details on how to set the DIP switch, refer to "4. Switching."
If DRT2-AD04/DA02 range setting is not the same as the Configurator
setting or all channels, set R7D-SV4/YV2 range using the PC
Configurator software.
For details on how to set the PC Configurator software, refer to "4
Setting by PC configuration software".
7
Sets the node
address.
Set the node address of R7D-SV4 to the same node address as DRT2-
AD04 (address 1 in this case).
8
Setting the Baud
Rate
Set the rotary switch to 3 to 9: Automatic follow-up.
