E3M-V
E3M-V
2

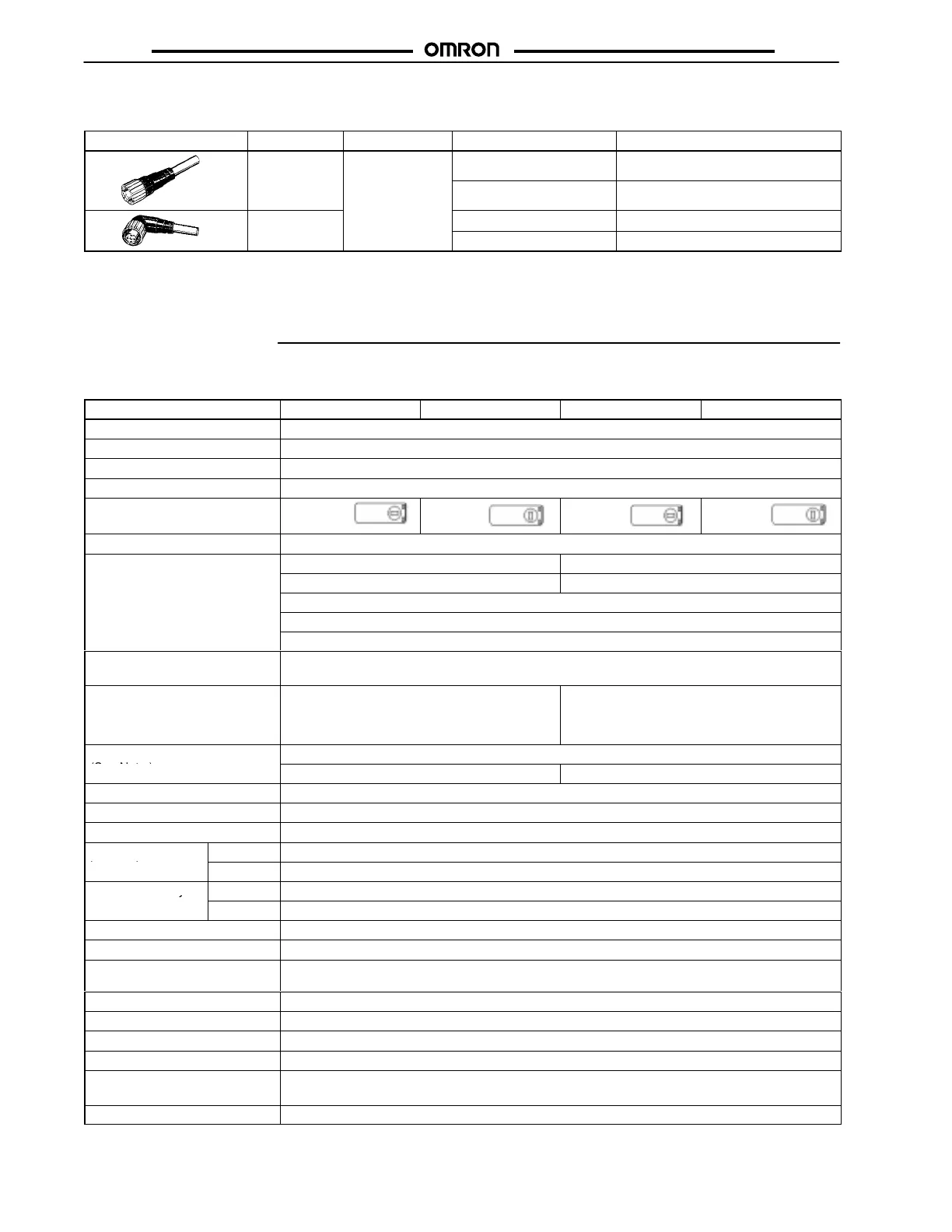

 CONNECTING CABLES
Shape Type Conductors Length Part number
Straight 4-wire
2 meter (6.56 ft) Y96E43SD2
5 meter (16.40 ft) Y96E43SD5
L-shaped
2 meter (6.56 ft) XS2F-D422-D80-A
5 meter (16.40 ft) XS2F-D422-G80-A
Specifications
 RATINGS/CHARACTERISTICS
Part number E3M-VG11 E3M-VG21 E3M-VG16 E3M-VG26
Method of detection Diffuse type
Supply voltage 10 to 30 VDC, 10% ripple max. (p–p)
Current consumption 100 mA max.
Sensing distance 10 ± 3 mm
Spot size (W x H) and orientation 1 x 4 mm 4 x 1 mm 1 x 4 mm
4 x 1 mm
Sot
size
(W
x
H)
and
orientation
1
x
4
mm
4
x
1
mm
1
x
4
mm
4
x
1
mm
Light source (wavelength) Green LED, 525 nm
Output
NPN open collector PNP open collector
Residual voltage: 1.2 V max. Residual voltage: 2 V max.
100 mA load, 30 VDC max.
Light-ON/Dark-ON switch selectable
Short-circuit protected
Response time ON: 50 µs max.
OFF: 70 µs max.
Remote control input
(See Note.)
ON: Short-circuited to 0 or 1.5 V max., leakage
current of 1 mA max.
OFF: Open or V
CC
–1.5 V to V
CC,
leakage
current of 0.1 mA max.
ON: V
CC
–1.5 V to V
CC,
leakage current of
3 mA max.
OFF: Open or 1.5 V max., leakage current of
0.1 mA max.
Remote control output
(S N t )
30 VDC max., 100 mA max.
(See Note.)
NPN open collector, residual voltage: 1.2 V max. PNP open collector, residual voltage: 2 V max.
Bank selection Two banks selectable. Available for remote control only.
Circuit protection Protection from reversed polarity connection and load short-circuit
Ambient light immunity Incandescent lamp: 3,000 x max. Sunlight: 10,000 x max.
Ambient
tt
Operating –20°C to 55°C (–4°F to 131°F) with no icing
temperature
Storage –30°C to 70°C (–22°F to 158°F) with no icing
Ambient humidity
Operating 35% to 85% RH with no condensation
y
Storage 35% to 95% RH with no condensation
Insulation resistance 20 MΩ min. (at 500 VDC)
Dielectric strength 1,000 VAC, 50/60Hz, 1 min.
Vibration resistance 10 to 55 Hz, 1-mm double amplitude or 150 m/s
2
for 2 hrs each in X, Y, and Z axes
With bracket attached: 0.75-mm double amplitude or 100 m/s
2
Shock resistance 500 m/s
2
3 times each in X, Y, and Z axes. With bracket attached: 300 m/s
2
Enclosure rating IP67 IEC60529 (with cover properly closed)
Connection method Quick-disconnect M12
Weight Approx. 100 g (with carton)
Material Case:Polybutylene terephthalate
Lens: Acrylic (PMMA)
Included Instruction manual
Note: Remote control input and answer-back output share the same signal line.
