A - 63
A Appendices
E3NW-ECT EtherCAT Digital Sensor Communication Unit Operation Manual (E429)
A-2 Using Distributed Sensor Units
A
A-2-6 Hardware Specifications of
the Distributed Sensor Unit
Connect the power supply cable from the Unit power supply and the DS-Bus communications cable to
this connector.
• Connector type: Spring-cage connector with mounting screws (4 positions)
• Applicable ferrule diameters: 0.25 to 0.5 mm
2
(AWG24 to AWG20)
(for ferrules with insulating sleeves)
Refer to " Unit Power Supply Connections" on page A-59 for the recommended ferrules.

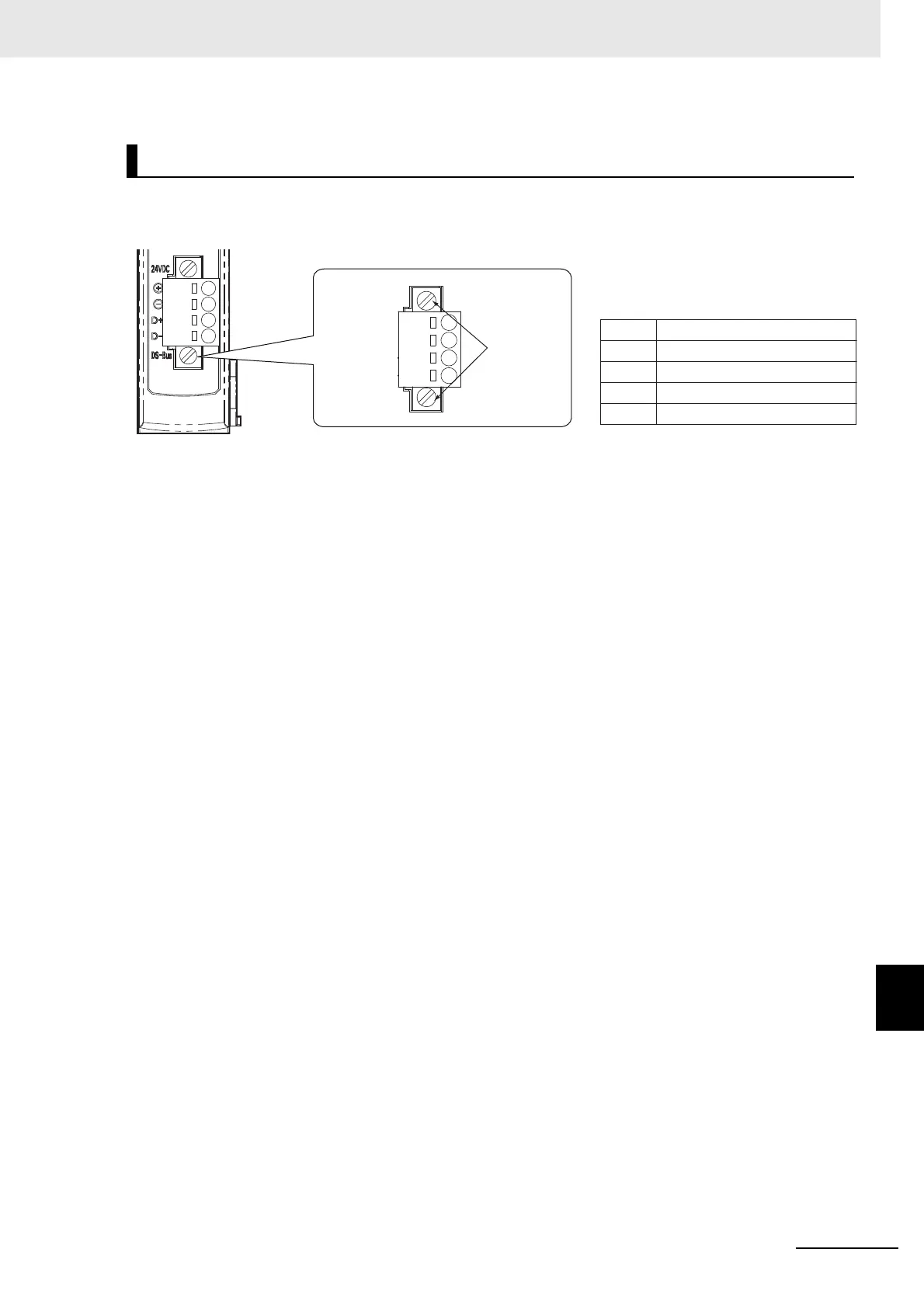

Communications and Power Supply Connectors
D+ terminal
D− terminal
+V terminal
−V terminal
Name
Specification
+V
D-
24 VDC
Communications data signal −
D+
Communications data signal +
-V
0 VDC
Mounting
screws
To Next Page
