Photoelectric Sensors

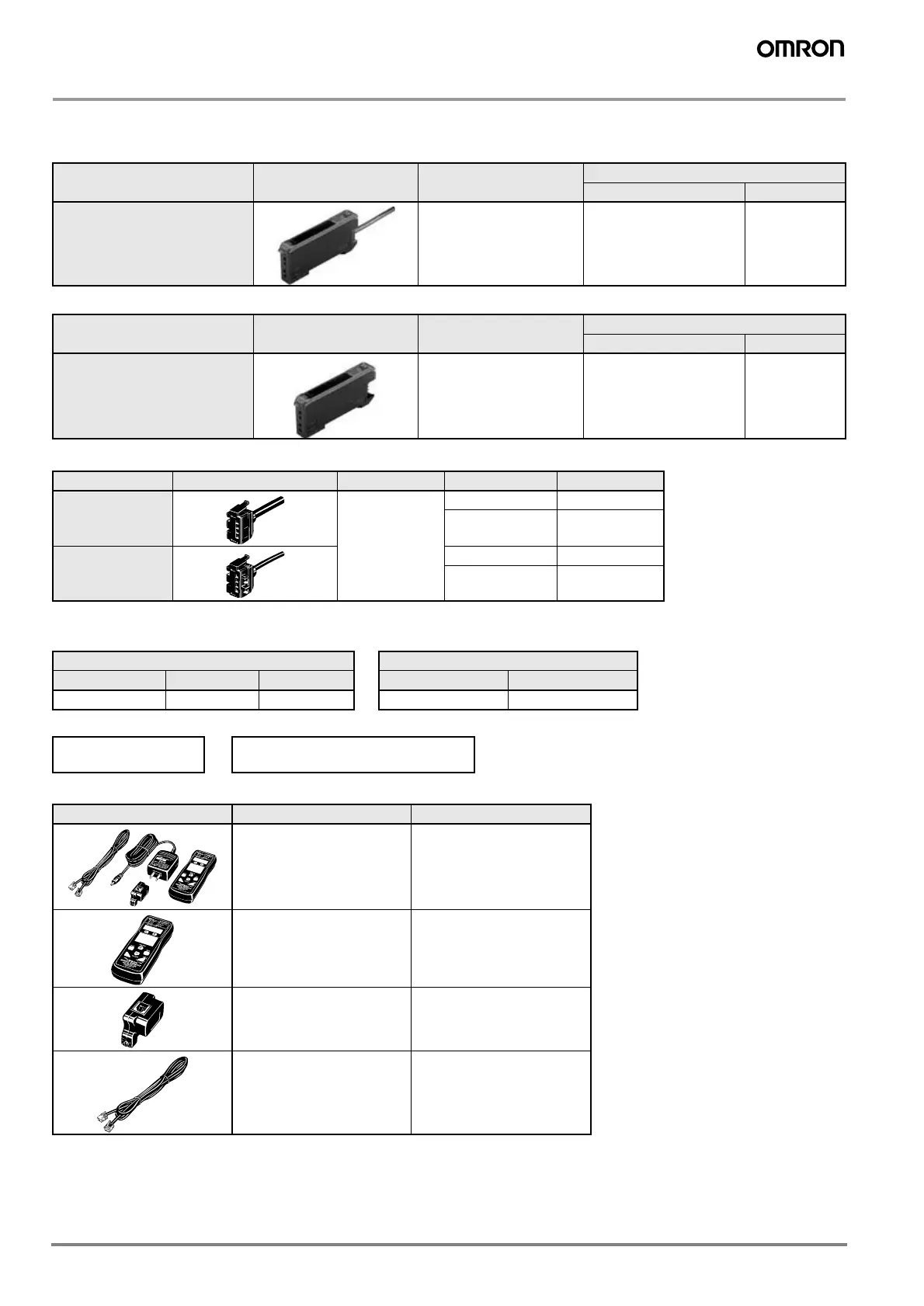

Ordering Information
Amplifier Units
Amplifier Units with Cables
Amplifier Units with Connectors
Amplifier Unit Connectors (Order Separately)
Combining Amplifier Units and Connectors
Amplifier Units and Connectors are sold separately. Refer to the following tables when placing an order.
When Using 5 Amplifier Units
Mobile Console (Order Separately)
Note:Use the E3X-MC11-S Mobile Console for the E3X-DA-S/MDA-series Amplifier Units. Other Mobile Consoles cannot be used.
Item Appearance Functions
Model
NPN output PNP output
2-channel models AND/OR output E3X-MDA11 E3X-MDA41
Item Appearance Functions
Model
NPN output PNP output
2-channel models AND/OR output E3X-MDA6 E3X-MDA8
Item Appearance Cable length No. of conductors Model
Master Connector
2 m
3E3X-CN11
4E3X-CN21
Slave Connector
1E3X-CN12
2E3X-CN22
Amplifier Unit Applicable Connector (Order Separately)
Model NPN output PNP output Master Connector Slave Connector
2-channel models E3X-MDA6 E3X-MDA8 + E3X-CN21 (4-wire) E3X-CN22 (2-wire)
Amplifier Units (5 Units)
+
1 Master Connector + 4 Slave Connec-
tors
Appearance Model Remarks
E3X-MC11-S
(model number of set)
Mobile Console with Head,
Cable, and AC adapter pro-
vided as accessories
E3X-MC11-C1-S Mobile Console
E3X-MC11-H1 Head
E39-Z12-1 Cable (1.5 m)
