Omron E3Z series Network Connection Guide

7
．
IO-Link Connection Procedure
33
8

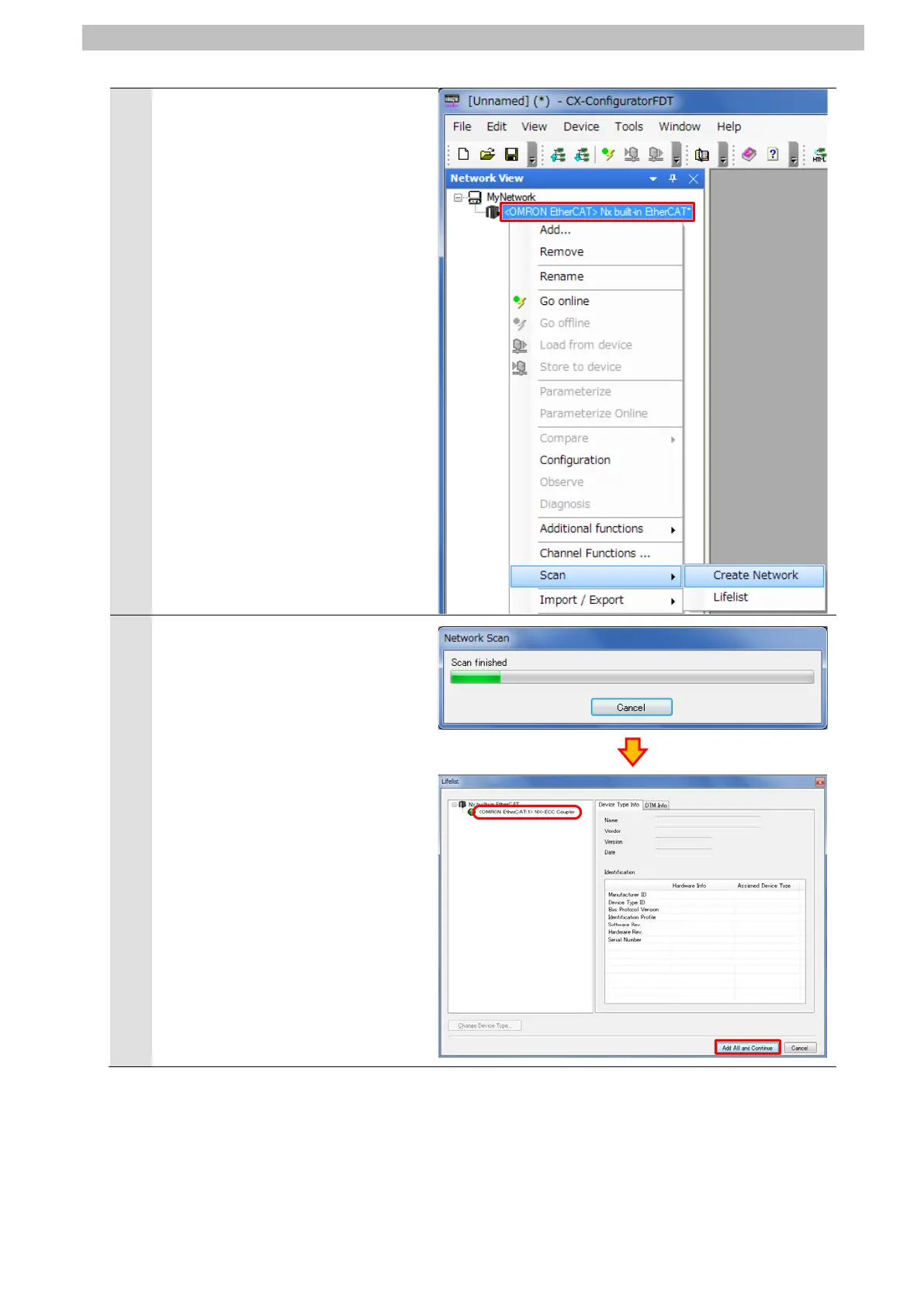

Right-click <OMRON EtherCAT>
Nx built-in EtherCAT and select
Scan - Create Network from the
menu.
9
The Lifelist Dialog Box is displayed
after completing the network scan.
Check that <OMRON EtherCAT:1>
NX-ECC Coupler is added under Nx
built-in EtherCAT.
Click Add All and Continue.

Omron E3Z series Specifications

General

Protection Rating	IP67
Response Time	1 ms or less
Accessory Type	Photoelectric Sensor
Connection Type	Pre-wired, Connector
Sensing Method	Through-beam, Retro-reflective, Diffuse-reflective
Light Source	Infrared LED, Red LED
Power Supply Voltage	12 to 24 VDC
Output Type	NPN, PNP
Operating Temperature	-25 to 55°C
Sensing Distance	varies by model (up to 30m for Through-beam)
