Omron E3Z series Network Connection Guide

7
．
IO-Link Connection Procedure
34
10

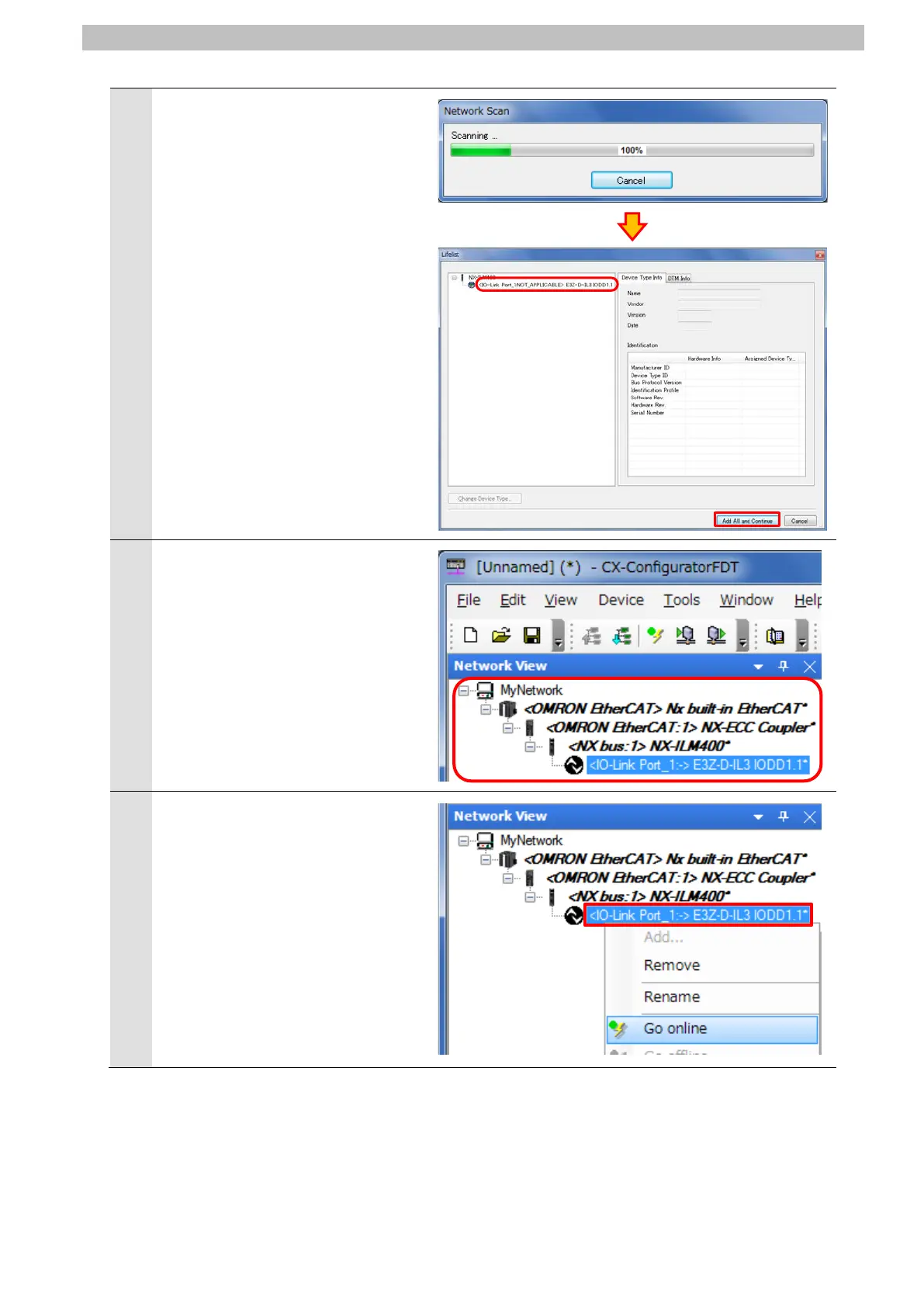

The Lifelist Dialog Box is displayed
again after completing the network
scan.
Check that <IO-Link
Port_1:NOT_APPLICABLE>
E3Z-D-IL3 IODD1.1 is added under
NX-ILM400.
Click Add All and Continue.
11
Check that the network
configuration is created in the
Network View as shown on the right.
12
Right-click <IO-Link Port_1:->
E3Z-D-IL3 IODD1.1 and select Go
online from the menu.

Omron E3Z series Specifications

General

Protection Rating	IP67
Response Time	1 ms or less
Accessory Type	Photoelectric Sensor
Connection Type	Pre-wired, Connector
Sensing Method	Through-beam, Retro-reflective, Diffuse-reflective
Light Source	Infrared LED, Red LED
Power Supply Voltage	12 to 24 VDC
Output Type	NPN, PNP
Operating Temperature	-25 to 55°C
Sensing Distance	varies by model (up to 30m for Through-beam)
