Omron E5 Z Series Manual

54 Digital Temperature Controllers E5AZ/E5EZ/E5CZ

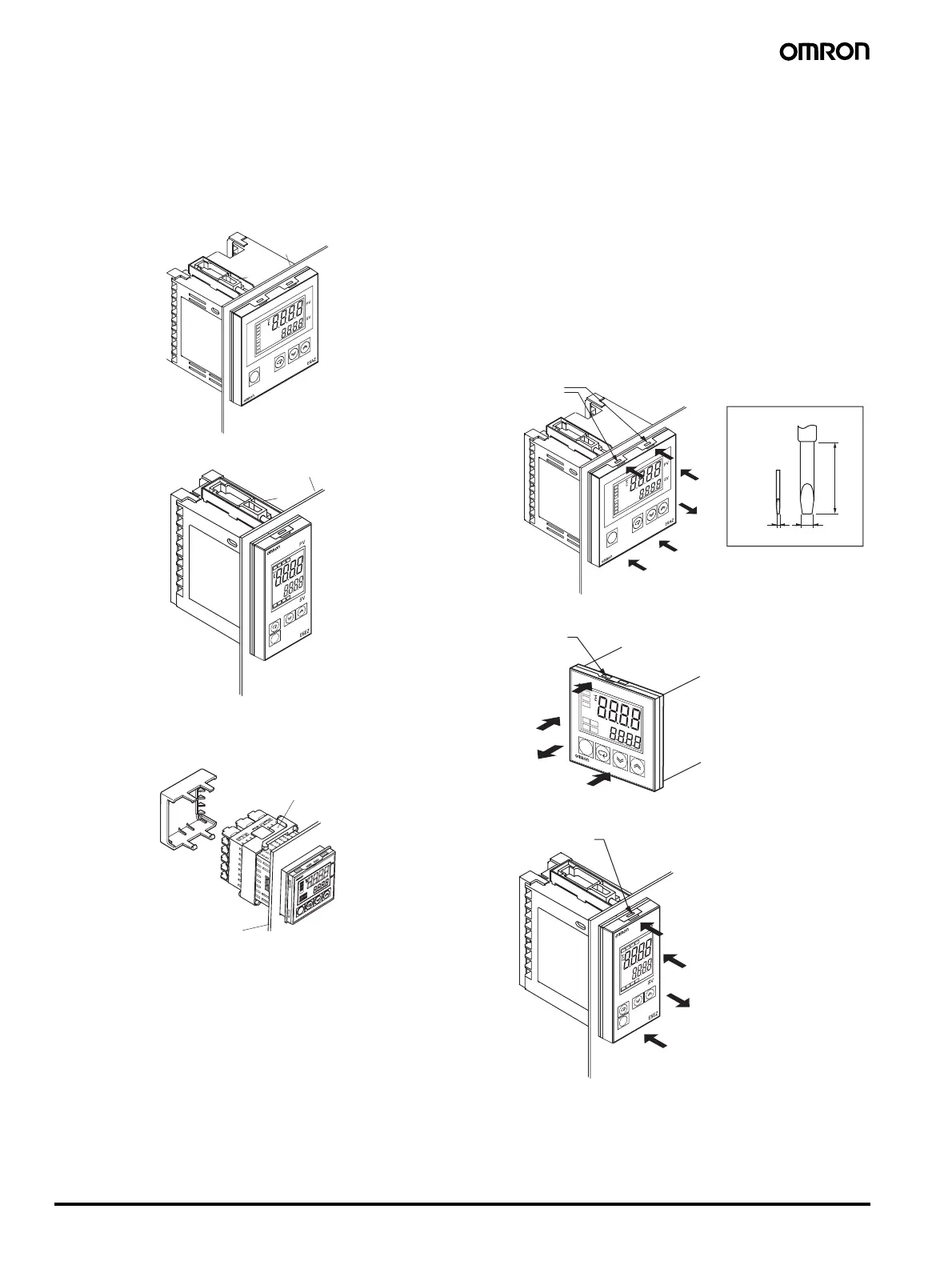

Mounting (E5AZ/E5EZ)
1. Insert the E5AZ/E5EZ into the mounting hole in the panel from
the front.
2. Push the mounting bracket along the E5AZ/E5EZ body from the
terminals up to the panel, and secure it temporarily.
3. Tighten the fixing screw on each mounting bracket alternately
until the ratchet stops tightening.
E5AZ
E5EZ
Mounting (E5CZ)
Mounting to a Panel
1. Insert the E5CZ into the mounting hole in the panel.
2. Push the adapter along the E5CZ body from the terminals up to
the panel, and secure it temporarily.
3. Tighten the two fixing screws on the adapter. When tightening
screws, tighten the two screws alternately keeping the torque to
between 0.29 and 0.39 N·m (2.9 kgf·cm to 3.9 kgf·cm).
Mounting the Terminal Cover
Make sure the “UP” characters on the Cover are in the correct posi-
tion and insert the E53-COV10 Terminal Cover into the holes at the
top and bottom. The terminal block of the E5CZ cannot be removed.
Removing the Temperature Controller from
the Case
To remove the Temperature Controller from case, use a suitable Phil-
lips screwdriver for the screw located at the bottom on the front
panel.
1. Insert the tools (see drawing above) into the slots (one on the top
and one on the bottom) and release the hooks.
2. Insert the tool in the space between the front and rear panels and
slightly pull out the front panel. Hold the top and bottom of the
front panel and pull toward yourself to remove it.
3. Match up the upper and lower claws with the connection points
and insert the Option Unit. Mount the Option Unit in the center.
4. Insert the Unit into the rear case until you hear a click. When
inserting the Unit, press down the hooks on the top and bottom of
the rear case so that they firmly hook on the inserted Unit. Make
sure that electronic parts do not come in contact with the case.
E5AZ
E5CZ
E5EZ/E5EZ-PRR
Panel
Mounting
bracket
Panel
Mounting
bracket
Terminal Cover
(sold separately)
Adapter
(sold separately)
E5CZ
Panel
E
5
C
Z
HB
0.4 2.0
20 min.
Flat-blade screwdriver
(Unit: mm)
(1)
(2)
(3)
(1)
Tool insertion hole
E
5C
Z
PV
SV
AL
M
1
A
LM
2
H
B
O
U
T
1
S
T
O
P
O
U
T
2
C
M
W
(1)
(1)
(2)
(3)
Tool insertion hole
(3)
(1)
(2
)
(1)
Tool insertion hole
