Omron E5CC-800 Specification & Installation Instructions

E5EC-800/E5EC-B-800/E5AC-800
36

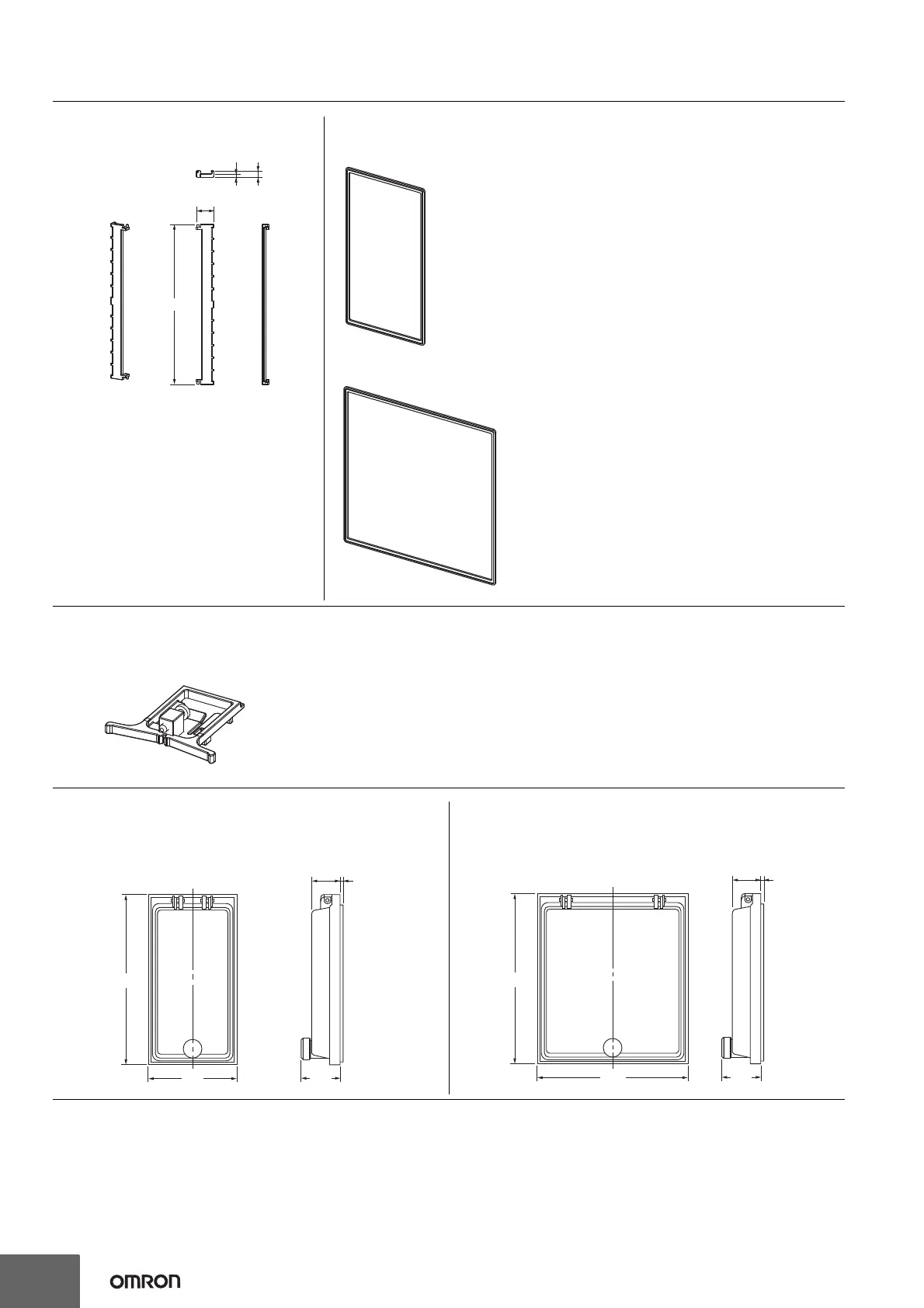

Accessories (Order Separately)
10
91
2 3.8
● Terminal Covers
E53-COV24 (Three Covers provided.)
● Waterproof Packing
Y92S-P9 (for DIN 48 × 96)
The Waterproof Packing is provided with the
Temperature Controller.
Order the Waterproof Packing separately if it
becomes lost or damaged.
The degree of protection when the Waterproof
Packing is used is IP66.
To maintain an IP66 degree of protection, the
Waterproof Packing and the Port Cover for the front-
panel Setup Tool port must be periodically replaced
because they may deteriorate, shrink, or harden
depending on the operating environment.
The replacement period will vary with the operating
environment.
Check the required period in the actual application.
Use 3 years or sooner as a guideline.
Y92S-P10 (for DIN 96 × 96)
● Mounting Adapter
Y92F-51
(Two Adapters provided.)
One pair is provided with the Controller.
Order this Adapter separately if it becomes lost or damaged.
131.7
115.6 28.9
21.9
(2)
● Watertight Cover
Y92A-96N (96 × 96)
● Watertight Cover
Y92A-49N (48 × 96)
131.7
67.6 28.9
21.9
(2)

Omron E5CC-800 Specifications

General

Communication	RS-485 (optional)
Protection Rating	IP66 (front panel)
Input Type	Thermocouple, RTD, analog input
Output Type	Relay, voltage, current
Supply Voltage	100-240 VAC, 24 VAC/VDC
Size	48 x 48 mm
Control Output	Relay, voltage, current
Ambient Operating Temperature	55 °C
Control Method	ON/OFF, 2-PID
Ambient Operating Humidity	35 to 85% RH (non-condensing)
Mounting	Panel mount
