Using ON/OFF Control
2-2
Using ON/OFF Control
You set this parameter in the Initial Setting Level. The parameter is set to ON/OFF control by default.
You set this parameter in the Initial Setting Level. The parameter is set to reverse operation by
default.

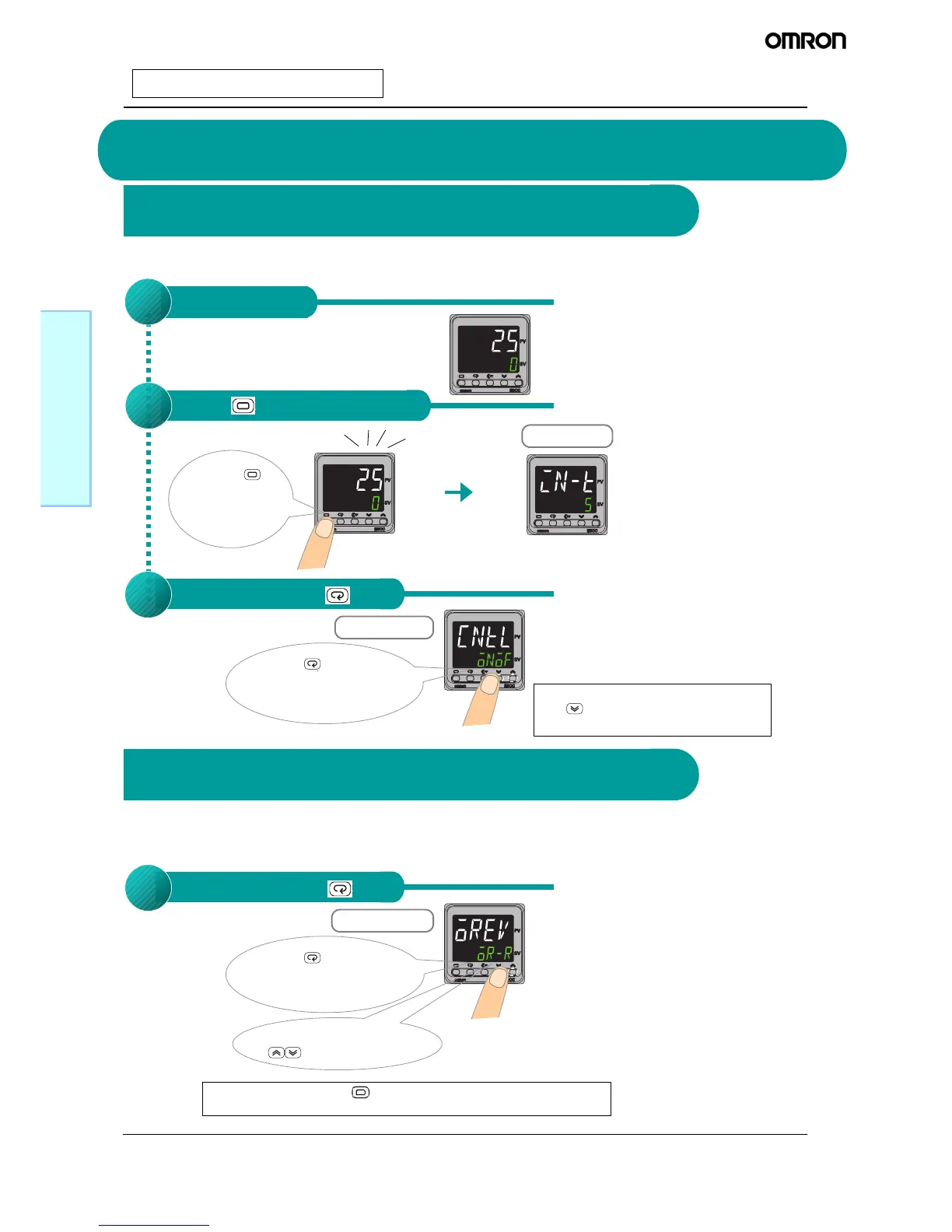

Step 2 Setting ON/OFF Control Parameters
1 Setting ON/OFF Control
Press the
(Level) Key for
at least 3
seconds.
Press the ( Mode) Key
several times to display
cntl
(CNTL).
Operating Display
←
cntl
(CNTL): Indicates the Control Method
parameter.
←Default setting is
onof
(ONOF): ON/OFF
control.
Initial Setting Level
←
in-t
(IN-T) will be displayed to
show that the Initial Setting Level
has been entered.
Press the K ey for at least 3 seconds.
Initial Setting Level
←Flashes 3 times.
2
Change the parameter with the Key .
3
If pid (PID control) is displayed, press
the ( Down) Key to change to onof
(ONOF) (ON/OFF control).
Turn ON the power supply.
1
(When finished, press the (Level) Key for at least 1 second to return
to the operation display.)
2 Setting Direct or Reverse Operation
Press the ( Mode) Key
several times to display
orev
(OREV).
←
orev
(OREV): Indicates the
Direct/Reverse Operation parameter.
←Default setting is
or-r
(OR-R):
Reverse operation.
Initial Setting Level
Change the parameter with the Ke y.
1
Change the set value with the
(Up and Down) Keys.
or-r
(OR-R): Reverse operation (default)
or-d
(OR-D): Direct operation
