6 Programless Communications
6 - 42
E5@C Digital Temperature Controllers Communications Manual (H175)

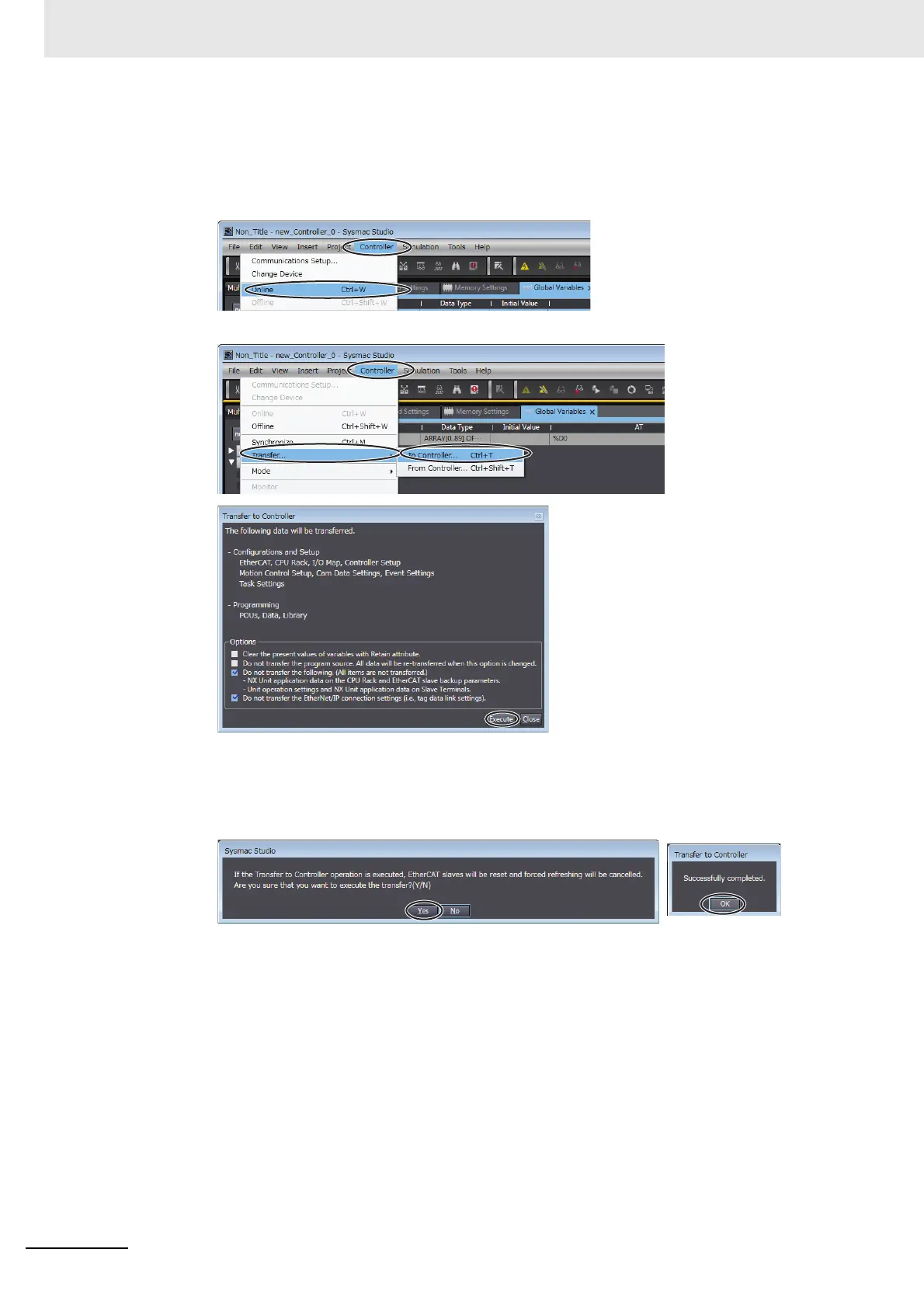

(5) Transfer the project that was created on the Sysmac Studio to the PLC.
Select Controller
−
Online from the menu bar to go online and then select Controller-
Transfer
−
To Controller. The Transfer to Controller Dialog Box will be displayed. Click the
Execute Button to transfer the project to the Controller.
A message saying that forced status will be canceled will be displayed. Click the Yes
Button.
If a dialog box that says execution ended normally is displayed, the transfer has been
concluded. Click the OK Button.
To Next Page
