Omron E5DC-RX0ASM-015 Communications Manual

3 - 23
3 Communications Data for CompoWay/F
E5@C Digital Temperature Controllers Communications Manual (H175)
3-2 Status and Status 2
3
3-2 Status and Status 2

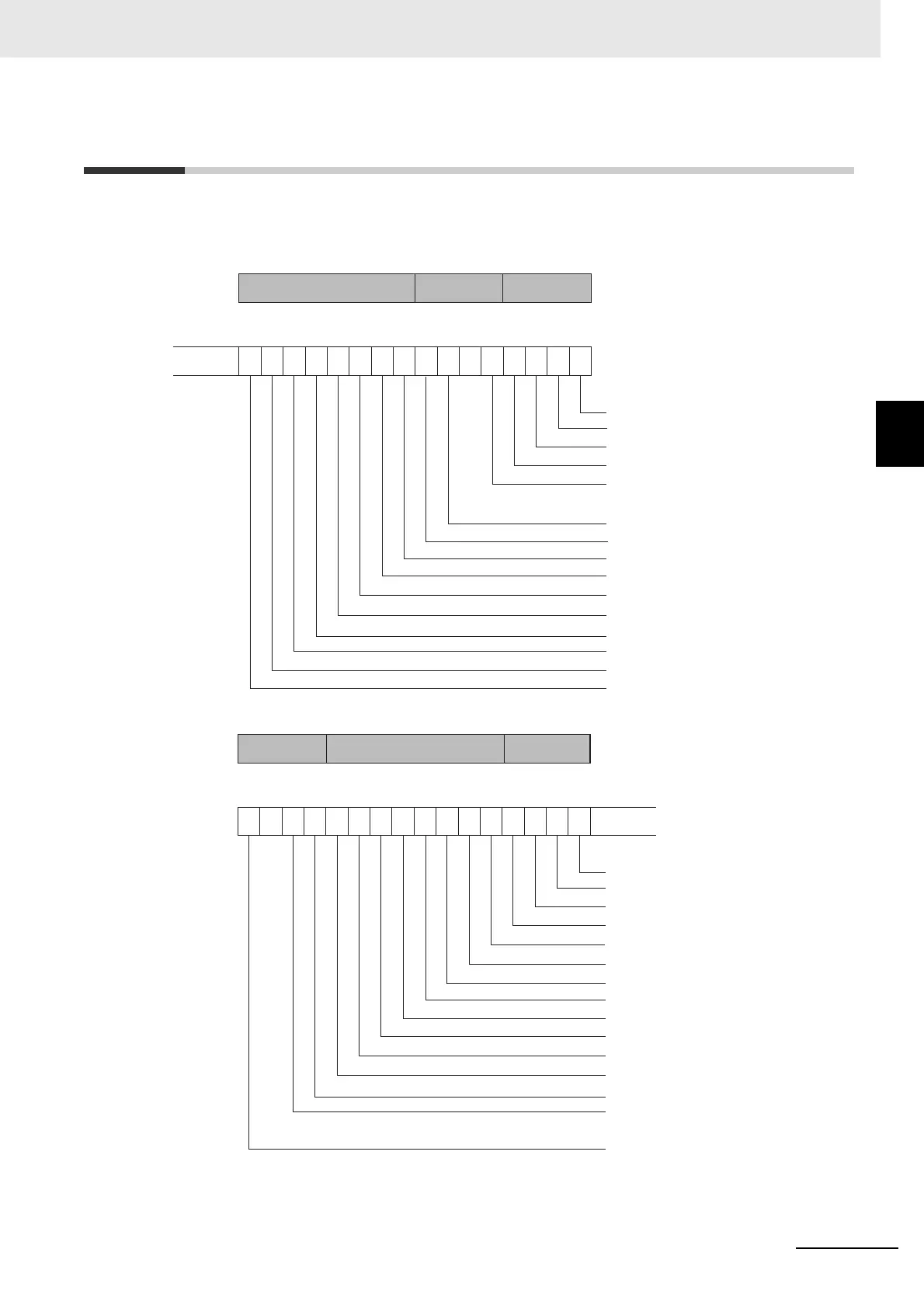

The figure below shows the structure of the status data.
 Status Structure
Bit position
Heater overcurrent (CT1)
Heater current hold (CT1)
A/D converter error
HS alarm (CT1)
RSP input error
Input error
Potentiometer input error
Control output (heating)/open output
Control output (cooling)/close output
HB (heater burnout) alarm (CT1)
HB (heater burnout) alarm (CT2)
Alarm 1
Alarm 2
Alarm 3
Program end output
012345678910111213141516
Input errorOutputs Error status
Bit position
Event input 1
Event input 2
Event input 3
Event input 4
Write mode
Non-volatile memory
Setup area
AT execute/cancel
RUN/STOP
Communications writing
Auto/manual switch
Program start
Heater overcurrent (CT2)
Heater current hold (CT2)
HS alarm (CT2)
1516171819202122
0
232425262728293031
Operating statusError status Event inputs
0
