E5@C Digital Temperature Controllers Communications Manual (H175)
Setting Up Communications for the Special Communication Adapter

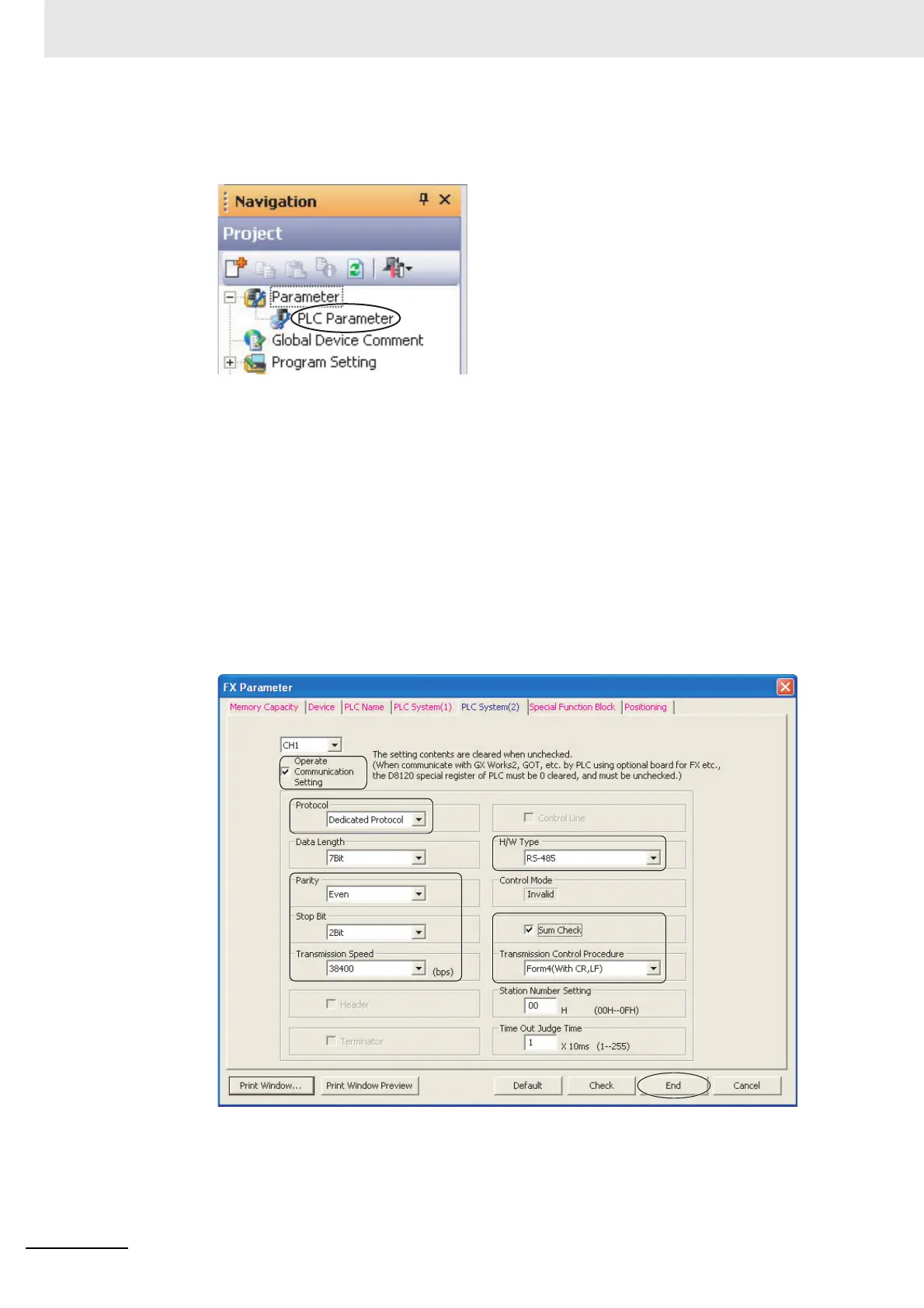

(1) Double-click PC Parameter. The FX Parameter Setting Dialog Box will be displayed.
(2) We will change the communications settings for CH1.
Click the PC System Setup (2) Tab, change the following settings, and click the Finish
Setup Button. Use the defaults settings for the other parameters.
• Operate Communication Setting: Selected.
• Protocol: Dedicated Protocol
• Parity: Even
• Stop Bit: 2Bit
• Transmission Speed: 38,400
• H/W Type: RS-485
• Sum Check: Selected.
• Transmission Control Procedure: Form4 (With CR, LF)
Note: If you change the station number setting, refer to 6-2-7 Communications Node Number
To Next Page
