2 Preparations
2 - 56
E5@C Digital Temperature Controllers User’s Manual (H174)
• If you use crimp terminals for the E5DC, use crimp terminals with insulation sleeves. If you use a
bare crimp terminal with no insulation, the terminal may short with the terminal above or below it. If
you use bare crimp terminals, cover the crimped sections with insulating marking tubes. Secure the
marking tubes so that they do not move.

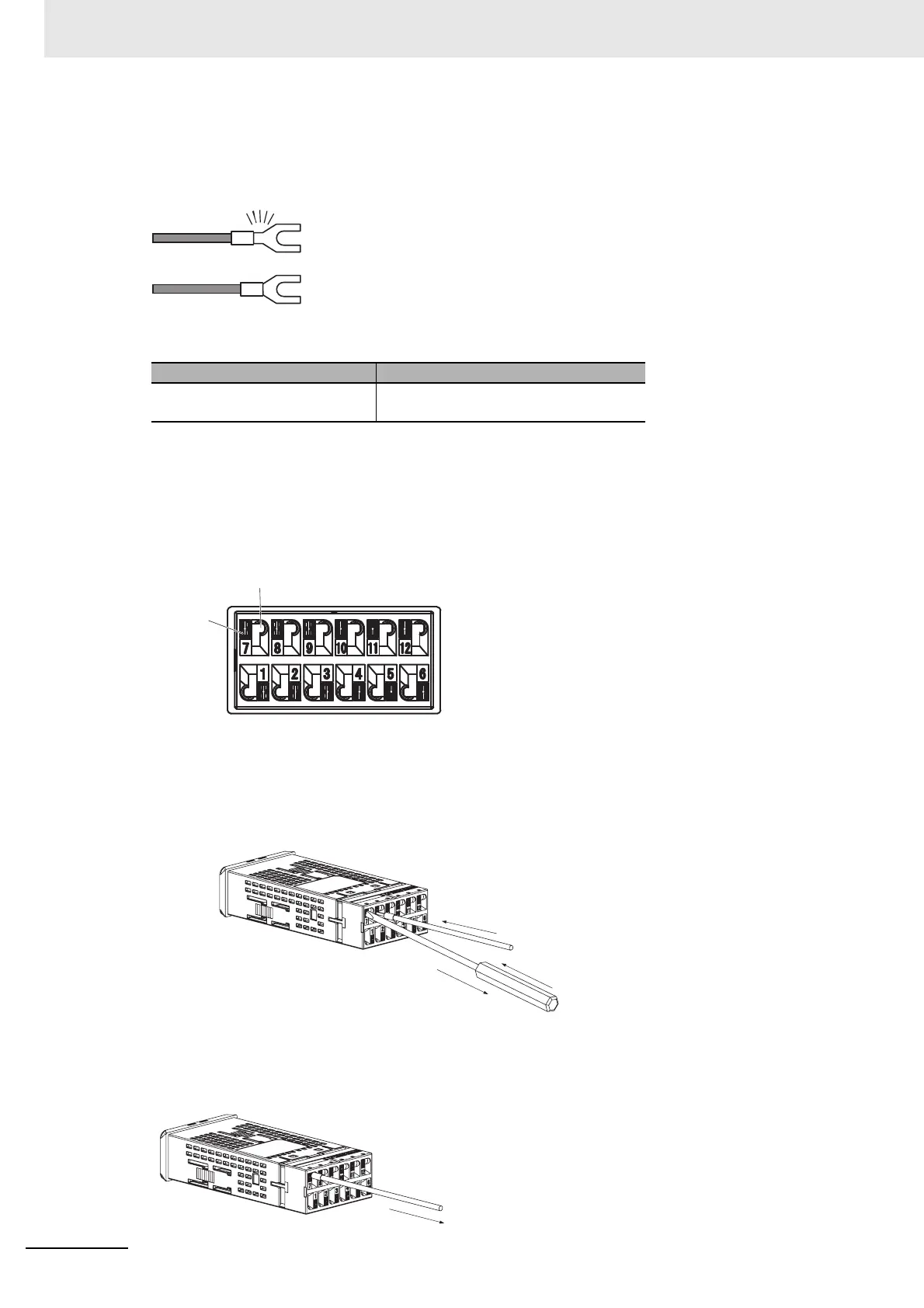

Recommended Crimp Terminals with Insulation Sleeves for the E5DC
E5GC (Models with Screwless Clamp Terminal Blocks)
1. Connection Method for Screwless Clamp Terminal Blocks
The same method is used to connect stranded wires, solid wires, and ferrules.
 Terminal Block Part Names
 Connection Method
(1) Press the pusher with a flat-blade screwdriver.
(2) With the screwdriver still pressing the pusher, insert the wire into the terminal hole.
(3) Remove the flat-blade screwdriver from the pusher.
 Checking Connections
After insertion, pull gently on the wire to make sure that it will not come out (i.e., to confirm that it is held by the
terminal block).
Manufacturer Model number
J.S.T. Mfg. Co. V1.25-B3A
V0.5-3A
NA
OK
Pusher
Terminal hole
(1)
(2)
(3)
