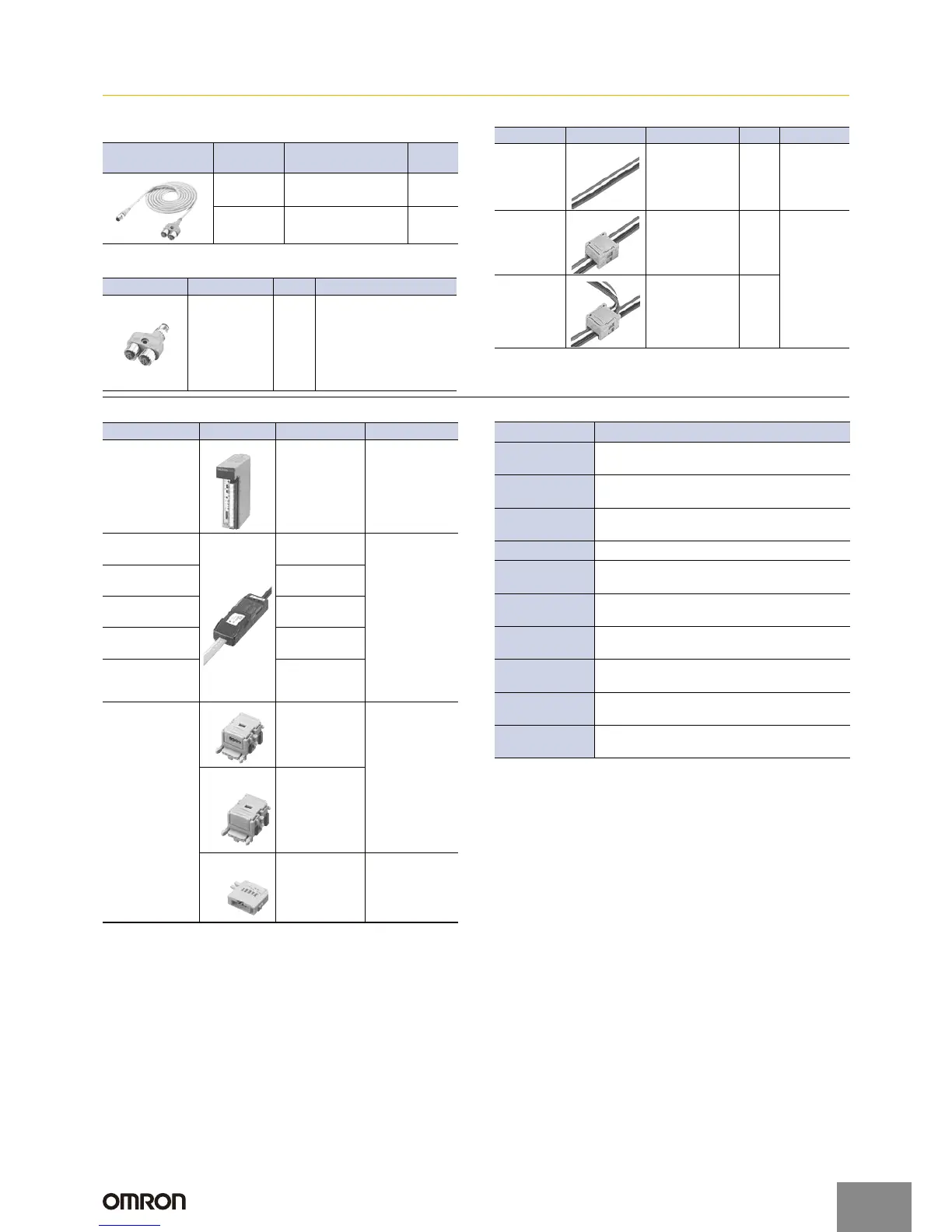

Y-shaped Joint Plugs and Sockets
(Cable with Connectors on Both Ends)
Y-shaped Joint Plugs and Sockets without Cable
UNI-WIRE Direct Connection Peripheral Devices
NKE UNI-WIRE System Peripheral Devices
Note: Consult an NKE sales office for purchasing information.
Ratings and Specifications of NKE UNI-WIRE Interface Unit
Note: Contacts for inquires regarding the UNI-WIRE Interface Unit
NKE Corporation
Sales office
Tokyo Sales Office, 2-12-2 Taito, Taito-ku, Tokyo 110-0016 (Fuji DIC
Building)
TEL(03)3833-5330 FAX(03)3833-5350
Osaka Sales Office, 1-2-13 (Shinmachi Building) Shinmachi, Nishi-ku,
Osaka 550-0013
TEL(06)6538-7136 FAX(06)6538-7138
Nagoya Sales Office, 2-13-22 Iseyama, Naka-ku, Nagoya 460-0026
(ITOH Building)
TEL(052)322-3481 FAX(052)322-3483
Kyoto Sales Office, 336-1 Hazukashi Hishikawacho, Fushimi-ku, Kyoto
612-8487
TEL(075)924-3293 FAX(075)924-3290
Toll-free TEL number: 0120-77-2018 (Only in Japan)
Appearance
Overall
length
Model Qty
2 m
XS2R-D526
-S001-2
1
5 m
XS2R-D526
-S001-5
1
Appearance Model Qty Remarks
XS2R-D526
-S003
1
Connecting cable:
• Cable with connectors
on both ends: XS2W
Series
• Cable with connector on
one end: XS2F Series
4-conductor models
Name Appearance Model Qty Remarks
Flat cable SCA1-4F10 1
4 ×
0.75 mm
2
100 m
Extension
IDC
SCN1-TH4E 1
---
T-branch
IDC
SCN1-TH4 1
Name Appearance Model Remarks
C200H/CS1
UNI-WIRE
Interface Unit
OMC02-HUW
-Z285
Applicable
PLCs:
C200H/HS
C200HE/HG/
HX
CS1
1-point DC Input
Unit
L6S-H1F2O
-Z285
Small I/O
Distribution
Units
2-point DC Input
Unit
L6S-H2F2O
-Z285
1-point Transis-
tor Output Unit
L6P-H1B2O
-Z285
2-point Transis-
tor Output Unit
L6P-H2B2O
-Z285
1-point DC Input/
1-point Transis-
tor Output Unit
L6X-H2FB2O
-Z285
Detachable
T-branch IDC
MAF-S407FO
---
MAF-
S407FEO
MAF-P405CO
Plug for
MAF-S407FO/
MAF-S407FEO
Terminator
Plug
Item Model OMC02-HUW-Z285
Transmission
method
Bi-directional: Orthogonal frequency division
multiplexing
Synchronization
method
Bit synchronization
Transmission
protocol
UNI-WIRE protocol
Baud rate 7.35 kbps (Z12)
Transmission
distance
100 m (trunk line) + 20 m (branch line)
Transmission
delay
128 points: 66 ms max.,
256 points: 120 ms max.
Connection
method
Multi-drop
Number of I/O
points
128 points or 256 points
Number of
connected units
Picking Sensors: 64
Connecting
cable
D and G trunk lines: 2 mm
2
min.
Branch lines: 0.75-mm
2
flat cable
http://www.ia.omron.com/
3
