Omron G3NA User Manual

8 Solid State Relays G3NA
■ Options (Order Separately)

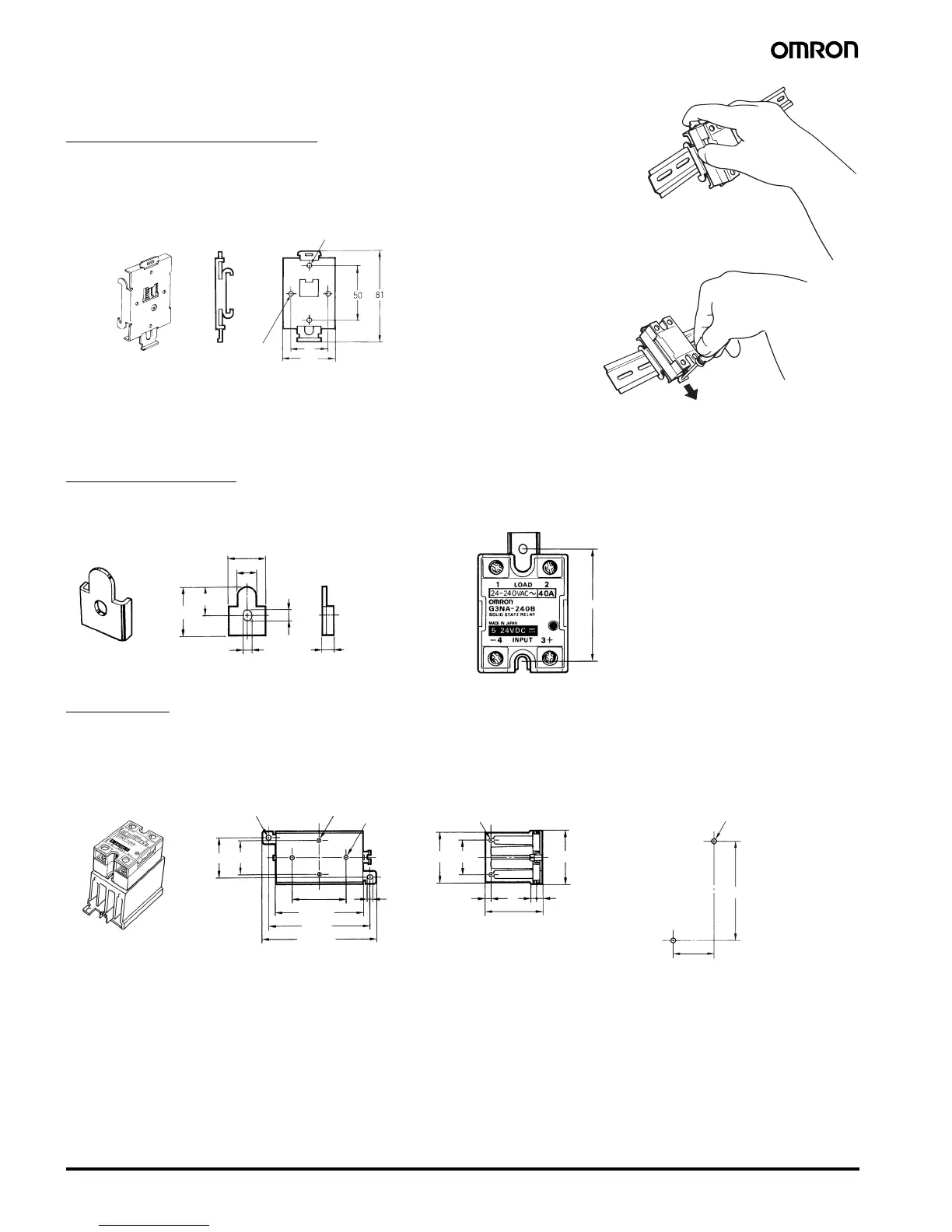

One-touch Mounting Plate
The One-touch Mounting Plate is used to mount the GN3A to a DIN
Tra ck .
R99-12 FOR G3NA (for the G3NA and G3NE)
• When a Relay is mounted to DIN Track, use it within the rating for a
Relay without a heat sink.
• Use the following DIN Tracks: PFP-100N or PFP-100N2.
Mounting Bracket
Heat Sinks
30
44
Two, M4 mounting
holes for the G3NE
Two, M4 mounting
holes for the G3NA
To mount the Relay to DIN
Track, first mount it to the
One-touch Mounting Plate
and then attach it to the DIN
Track as shown in the
diagram.
To remove the Relay from
the DIN Track, pull down on
the tab with a screwdriver in
the direction of the arrow.
R99-11 (for the G3NA-240B-UTU, G3NA-250B-UTU, G3NA-450B-UTU)
4.6
5
6
21
12.5
16
8
4
5
Use Mounting Bracket R99-11 so that the G3NA-240B/-250B/-450B-UTU
can be mounted with the same pitch as that of the G3N-240B.
5.6
47.6
90±0.3
35
30.5±0.3
30
5
4.5
6
35±0.2
90±0.4
Mounting Holes
4.6 dia.
Two, M3 holes
Two, M4 holes
77 max.
100 max.
44 max.
47 max.
51 max.
Weight: approx. 200 g
Two, 3.2-dia. holes
Two, 4.4-dia.
or M4 holes
The orientation indicated by the external dimensions is not the correct mounting orientation. When opening mounting holes, refer to the
mounting hole dimensions.
For surface mounting, a 30% derating of the load current is required (from the Load Current vs. Ambient Temperature graphs).
Y92B-N50 Heat Sink (for the G3NA-205B-UTU, G3NA-210B-UTU, G3NA-410B-UTU, G3NA-D210B-UTU)

Omron G3NA Specifications

General

Category	Solid State Relay
Mounting Type	Panel Mount
Control Voltage	5-24V DC
Output Type	AC
Dielectric Strength	2500V AC
Load Voltage	24 – 240 VAC
