J-26 Solid State Relays G3PA

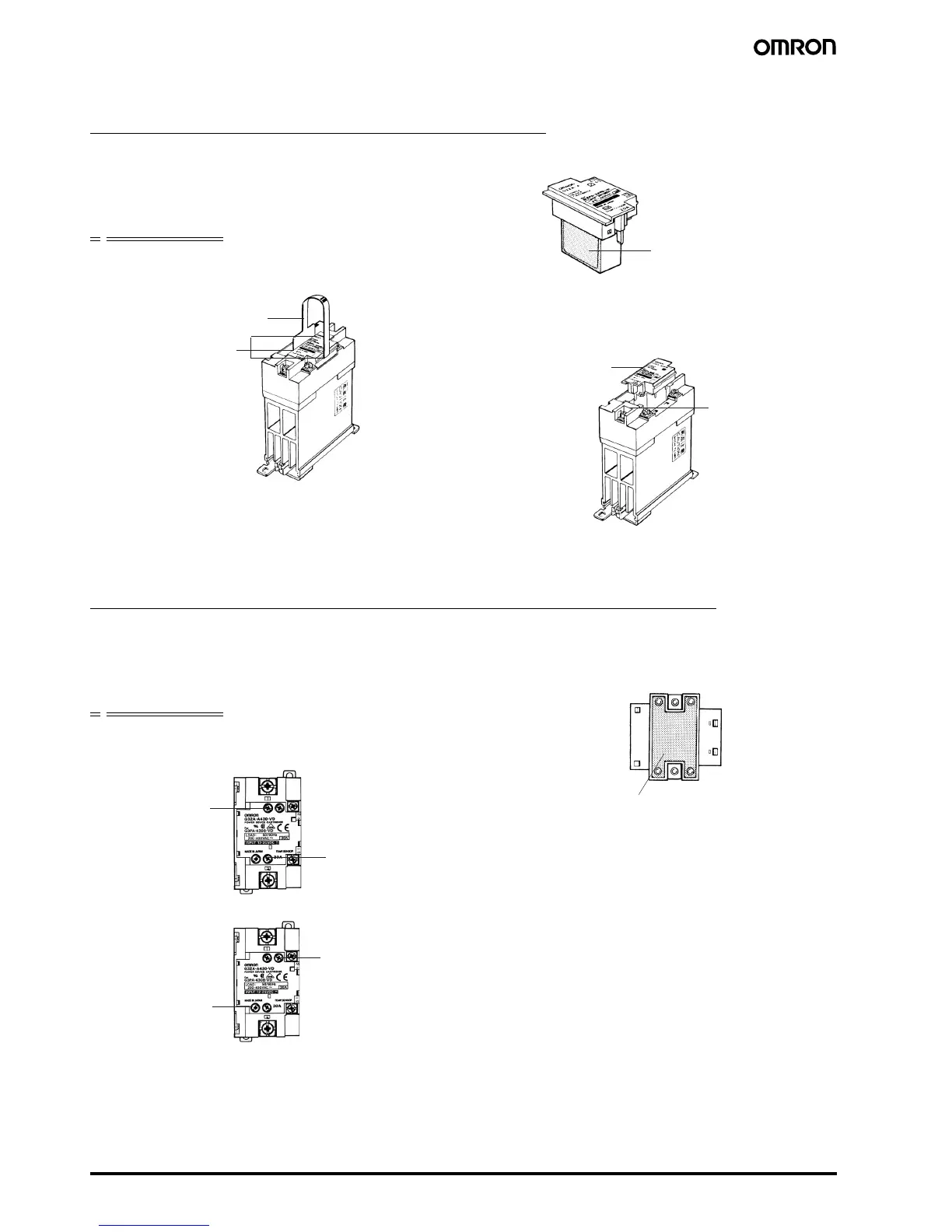

■ Replacement Procedure
G32A-A10(L)-VD/G32A-A20(L)-VD/G32-A420-VD(-2)
Use the special tool (provided) to extract the cartridge for replacement with a new one.
Extraction
Follow the procedures below to dismount the Power Device
Cartridge from the G3PA.
1.
Switch off the power.
2. Remove the terminal cover.
3. Hook the indented part of the cartridge with the tool and pull up
on the cartridge to remove it.
Mounting
Follow the procedures below to mount the Power Device Cartridge
on the G3PA.
1. Apply silicone grease (provided with the G32A-A) to the entire
surface of the heat sink.
2. Make sure that there is no dust or pieces of wire on the heat sink
of the G32A-A or the G3PA.
3. Insert the cartridge into the opening of the G3PA so that the
letters on the cartridge and those on the G3PA are in the same
direction and side A and side B are even.
4. Attach the terminal cover.
5. Switch on the power and check the G3PA to be sure it works
properly.
G32A-A40(L)-VD/G32A-A60(L)-VD/G32A-A430-VD(-2)/G32A-A450-VD-2
The G32A Power Device Cartridge is mounted and secured with screws to the G3PA Unit.
Extraction
Follow the procedures below to dismount the G32A-A Power Device
Cartridge from the G3PA.
1.
Switch off the power.
2. Remove the terminal cover.
3. Loosen the two centered screws on the sides to dismount the
cartridge. The screws are connected to terminals 1 and 2.
4. Loosen the screws on both the corners.
5. Hold the indented part of both the corners to dismount the
cartridge.
Mounting
1. Apply silicone grease to the entire surface of the heat sink.
2. Make sure that there is no dust or pieces of wire on the heat sink
of the G32A-A or the G3PA.
Remover
Hook here with
Remover.
Apply silicone grease here.
Side A
Side B
Loosen
Loosen
Loosen
Loosen
Apply silicone grease here.
