3. Insert the cartridge into the opening of the G3PA so that side A
and side B are even.
4. Tighten the screws on both the corners with a tightening torque of
0.59 to 0.78 N·m.
5. Tighten the screws on both the sides with a tightening torque of
0.59 to 0.78 N·m.
6. Attach the terminal cover.
7. Switch on the power and check the G3PA to be sure it works
properly.

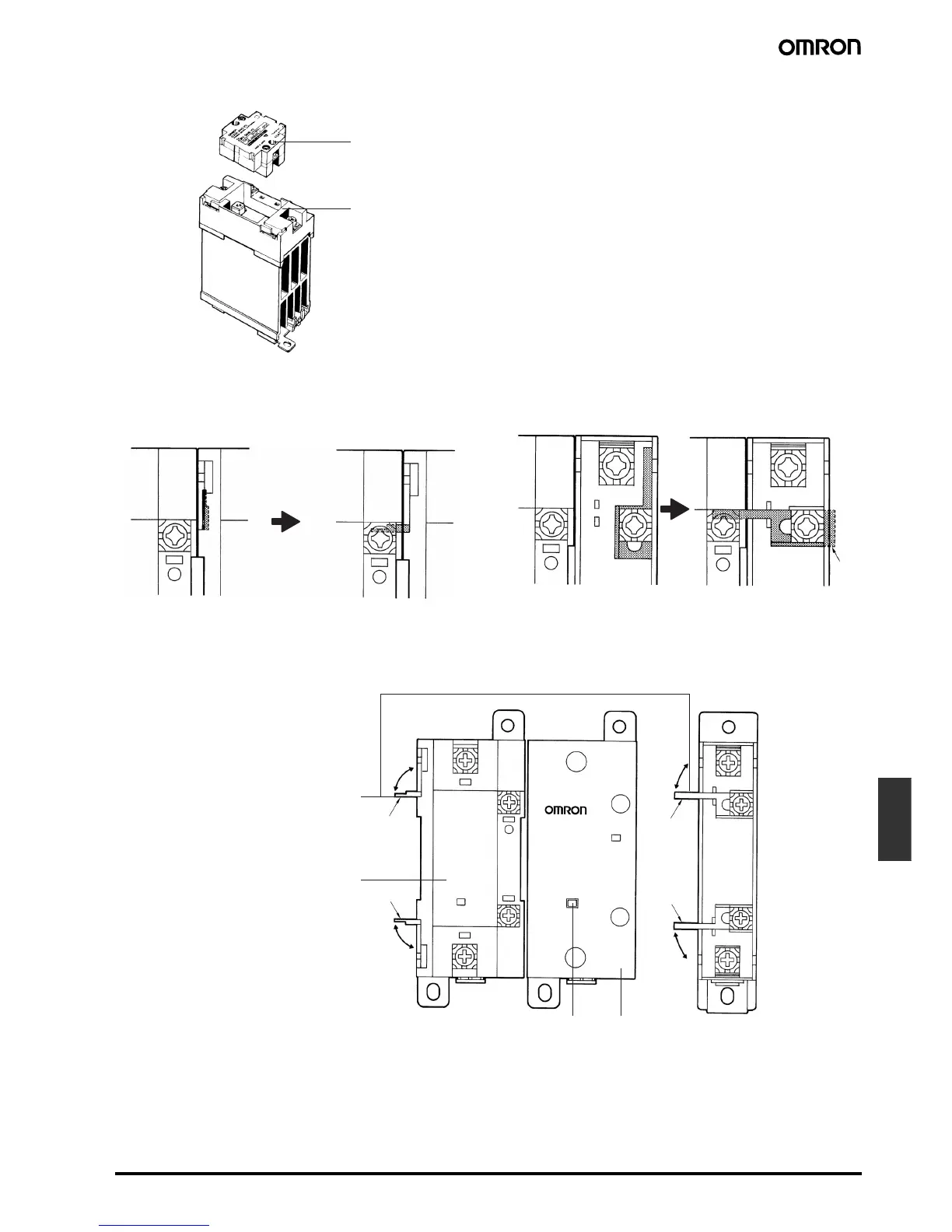

■ Linking Terminal Connection
• Connecting with linking terminal for G3PA-210B(L)-VD, -220B(L)-
VD, -240B(L)-VD and G3PA-420B-VD(-2), G3PA-430B-VD(-2).
• Connecting with linking terminal for G32A.
Side B
Side A
SSR1 SSR2 SSR1 SSR2
1. When SSRs are close
mounted, loosen the
M3.5 Sems screw and
flip the linking terminal
down.
2. Insert the linking
terminal securely
into the center of
the screw and
tighten the screw.
*
SSR G32A Unit SSR G32A Unit
* The cover will not fit if
the terminal protrudes.
1. When SSR are close
mounted, loosen the
M3.5 Sems screw on
the G32A and flip the
linking terminal down.
2. Insert the linking terminal
securely into the center
of the screw and tighten
the screw. Ensure that
the linking terminal does
not protrude.
Linking terminal
Linking terminal
Connect the terminal with power off.
G3PA-420B-VD
Refer to the instruction manual for
the G32A-A Power Device Cartridge
to replace the G3PA's triac part.
When the temperature indicator has turned from pink to red, the G32-A-A Power Device Cartridge
may have malfunctioned, in which case the cartridge must be replaced with a new one.
Use the terminal cover to prevent accidents
due to electric shock.
Linking
terminal
Linking
terminal
