G9SP-series Controller Settings

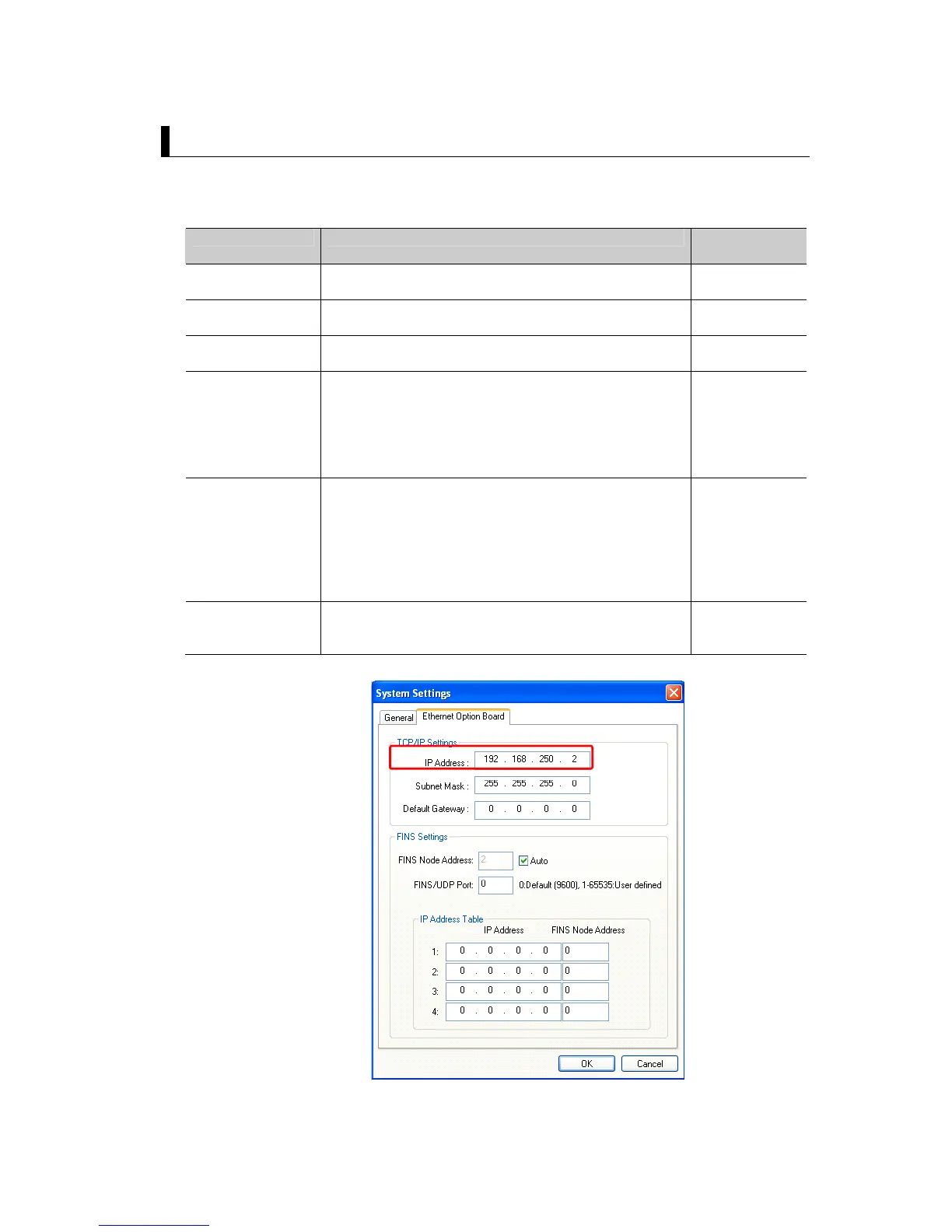

Make the settings for TCP/IP in the system settings of the G9SP Configurator.These
settings are set in the G9SP-series Controller and Ethernet Option Board
when the configuration data is downloaded.
Parameter Description Set value for this
example
IP address IP address of Ethernet Option Board.
Default value: 192.168.250.1
192.168.250.2
Subnet mask Subnet mask of Ethernet Option Board.
Default value: 255.255.255.0
No change is
required.
Default gateway Set the IP address of the default gate-
way. Default value: 0.0.0.0 (IP routing not supported)
No change is
required.
FINS node address Set the FINS node address of the Ethernet Option Board. If
automatic setting is specified, a value that matches the rightmost
byte of the IP address is stored.
Default value: Automatic (matching the
rightmost byte of the IP address)
Setting range: 1 to 254
No change is
required.
FINS/UDP port Specify the UDP port number that is specified in the FINS
communications service. The UDP port number is a number
used by UDP to identify the application layer (here, the FINS
communications service).
Default value: 0 (9600)
Setting range: 0 to 65535. When set to
0, the FINS/UDP port number is 9600.
No change is
required.
IP address table Set the table that defines correspondence between the FINS
node address and IP address at the Standard PLC.Set the IP
address table when IP routing is used.
No change is
required.
To Next Page
