Omron G9SP Series User Manual

2-16
2 - 3 Ethernet Communications
This section provides a description and example of connection to a Mitsubishi
Electric Standard PLC. The FINS/UDP Protocol are available for connection with a
Mitsubishi Electric Standard PLC.
2 - 3 - 1 Communications Format
Refer to Section 7 Communications with a Standard PLC Using an Option Board of
the G9SP Series Safety Controller Operation Manual (Cat. No. Z922).
2 - 3 - 2 Application Example

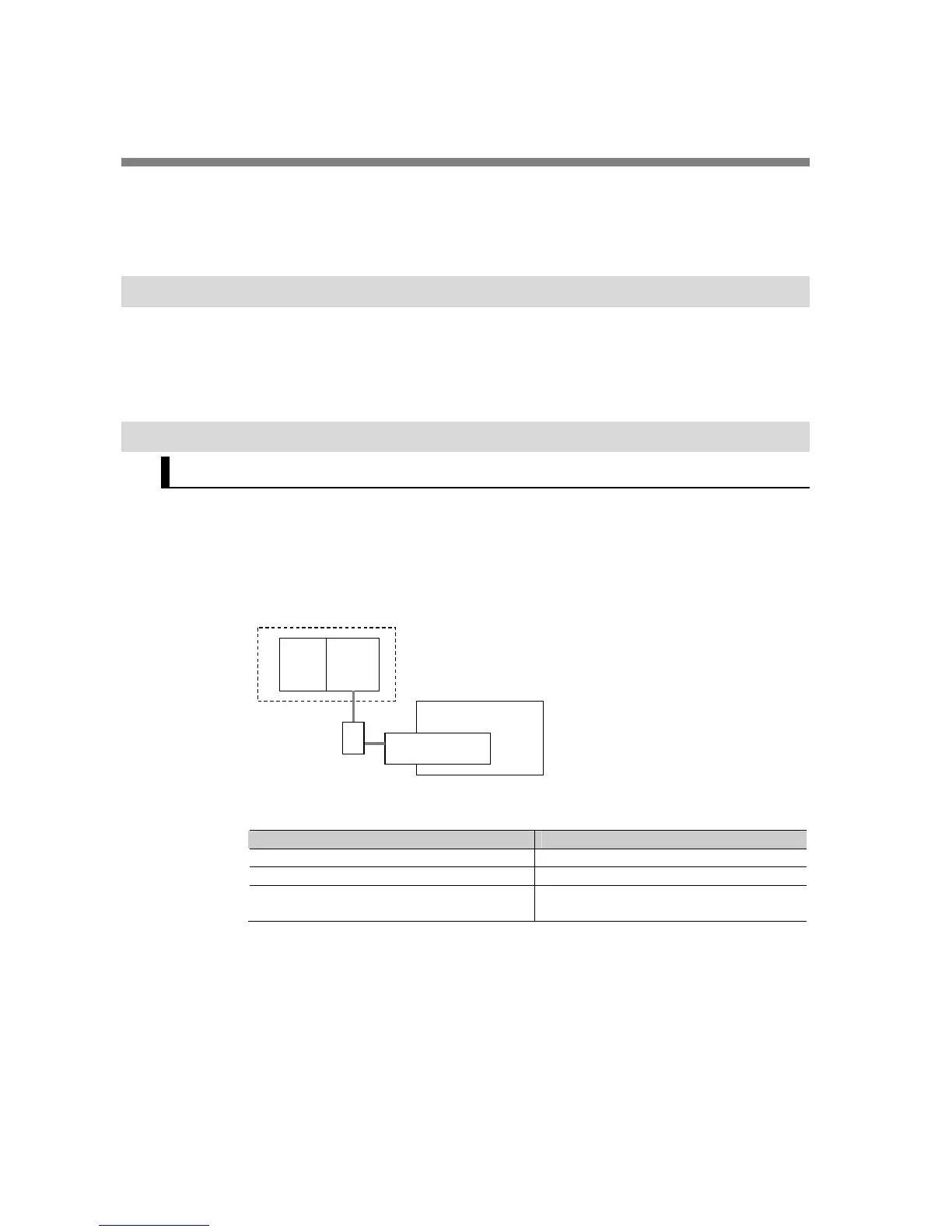

System Configuration
This section uses the following example to describe how to access the
G9SP-series Controller by performing Ethernet communications through a
Ethernet Communica- tions Board (CP1W-CIF41) from a Mitsubishi Electric
Standard PLC Q series.
Q002
Ethernet
Interface
Unit
G9SP Series
FINS/UDP
Mitsubishi Standard PLC(See Note.)
Option Board
CP1W-CIF41
192.168.250.18
192.168.250.11
Switching HUB
Note:
This example uses the following Mitsubishi Electric Standard PLC.
Product Model/Version
CPU Unit (Standard PLC) Q02HCPU
Ethernet Interface Unit QJ71E71-100
Support Software (for setup and creating ladder
programs)
GX Developer Version 8.90U
