Omron G9SP Series

2 - 3 Ethernet Communications
2-17
2
Connecting to Mitsubishi Electric PLCs
G9SP-series Controller Settings

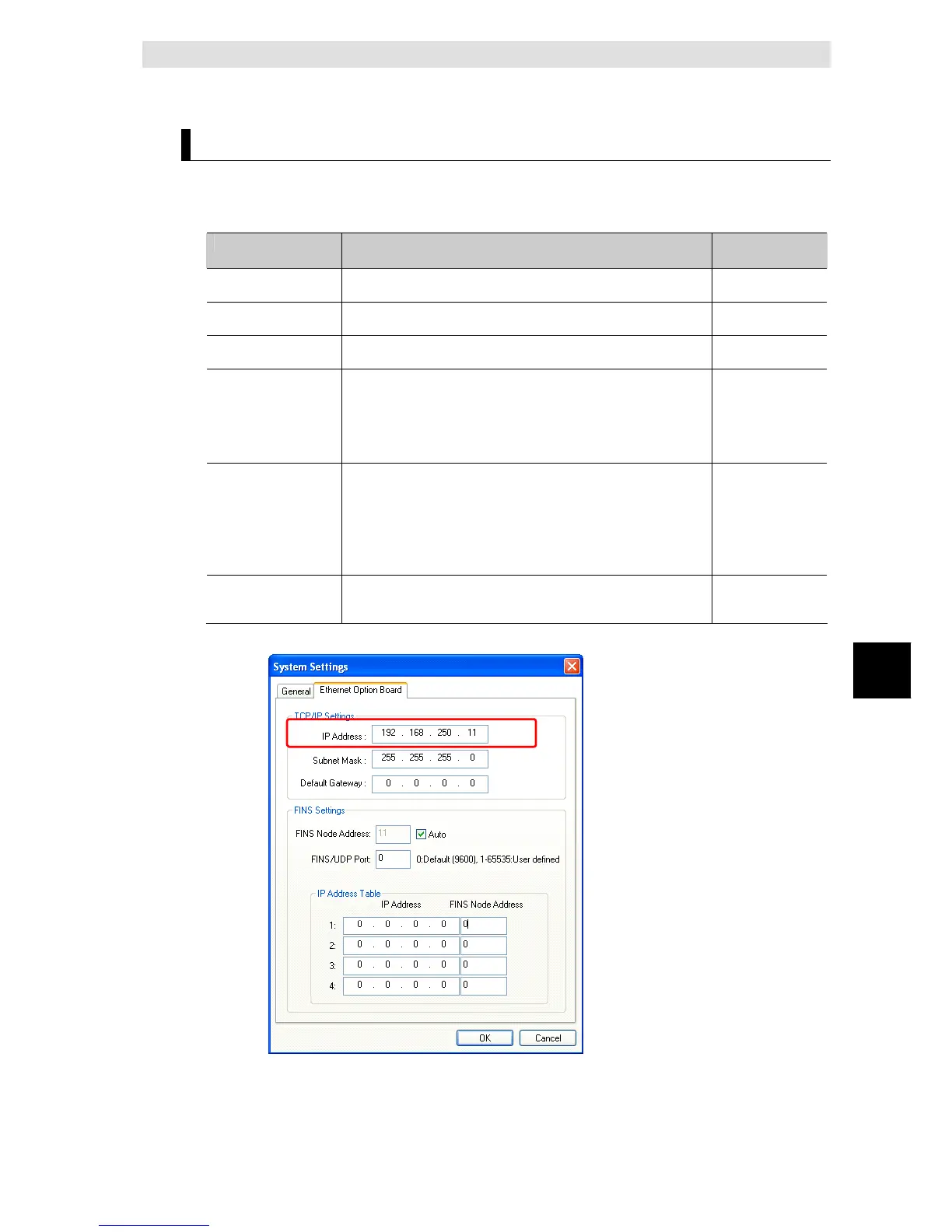

Make the settings for TCP/IP in the system settings of the G9SP Configurator.
These settings are set in the G9SP-series Controller and Ethernet Option Board when the
configuration data is downloaded.
Parameter Description Set value for this
example
IP address
IP address of Ethernet Option Board.
Default value: 192.168.250.1
192.168.250.11
Subnet mask
Subnet mask of Ethernet Option Board.
Default value: 255.255.255.0
No change is
required.
Default gateway
Set the IP address of the default gateway.
Default value: 0.0.0.0 (IP routing not supported)
No change is
required.
FINS node address
Set the FINS node address of the Ethernet Option Board. If
automatic setting is specified, a value that matches the
rightmost byte of the IP address is stored.
Default value: Automatic (matching the rightmost byte of the
IP address)
Setting range: 1 to 254
No change is
required.
FINS/UDP port
Specify the UDP port number that is specified in the FINS
communications service. The UDP port number is a number
used by UDP to identify the application layer (here, the FINS
communications service).
Default value: 0 (9600)
Setting range: 0 to 65535. When set to 0, the FINS/UDP port
number is 9600.
No change is
required.
IP address table
Set the table that defines correspondence between the FINS
node address and IP address at the Standard PLC.
Set the IP address table when IP routing is used.
No change is
required.
