Omron H3DS Series User Manual

H3DS-G
H3DS-G
24

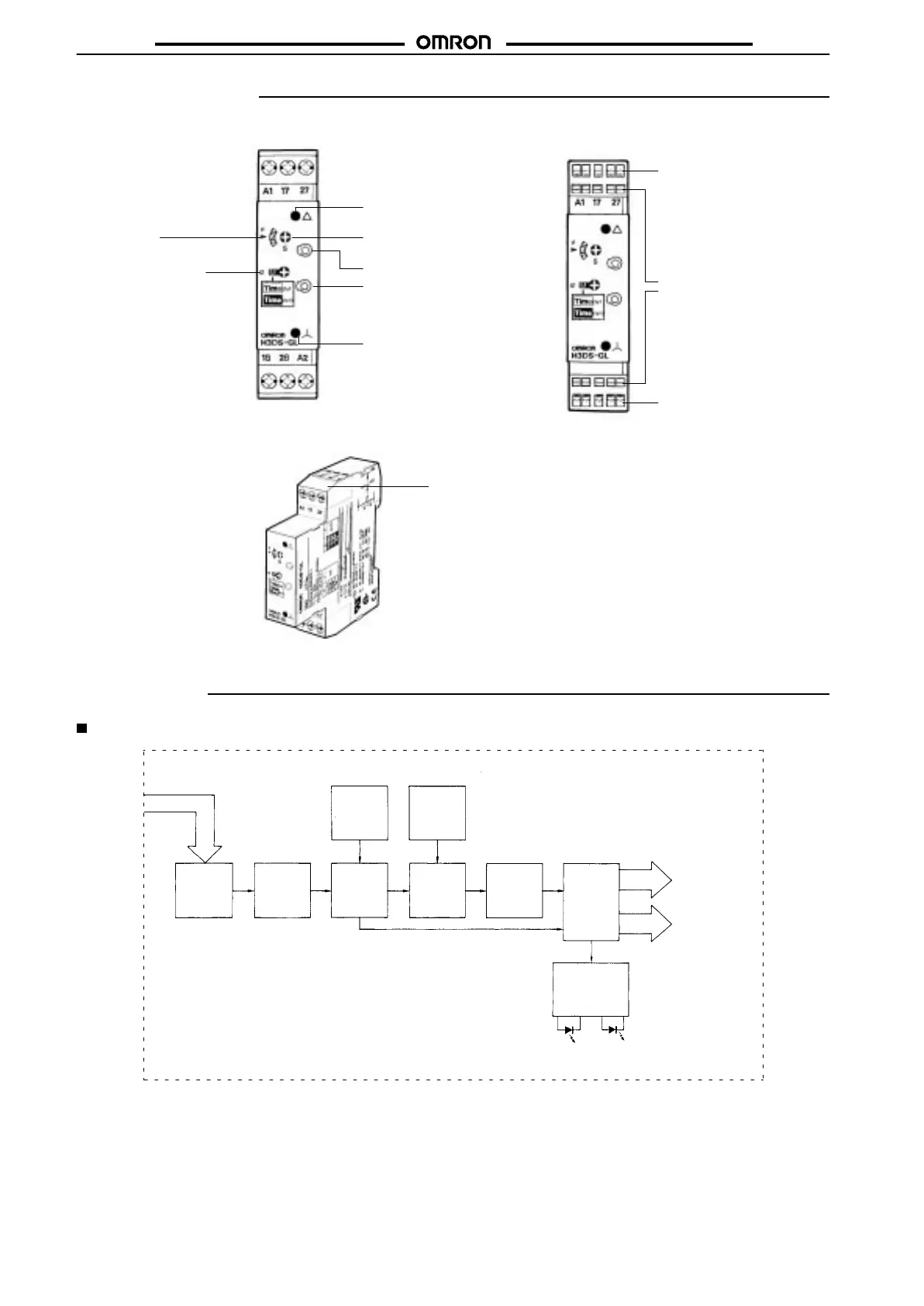

Nomenclature
Set time window
(Front View)
Attach the enclosed label here as a nameplate.
(The label is attached to the Timer’s DIN Track
hook section at the time of shipment.)
Star-delta transfer time and
star operation time scale
display window and selector
Delta operation indicator (orange)
Time setting dial (for setting
star operation time)
Lock for time setting dial
Star operation indicator
(green)
Lock for star-delta transfer time
and star operation time scale
H3DS-GLj
H3DS-GLC
Wire connection holes
Release holes
Wire connection holes
18 28 A2
(Front View)
Operation
Block Diagram
AC (DC) input
Power
supply
circuit
Star operation
indicator
Delta operation
indicator
Indicator
circuit
Output
circuit
Star opera-
tion time
counting
circuit
Star-delta
transfer
time
selection
Star-delta
transfer
time oscilla-
tion circuit
Star-delta
transfer
time
counting
circuit
Star operation
Delta operation
Star opera-
tion time
oscillation
circuit
Star
operation
time scale
selector

Omron H3DS Series Specifications

General

Type	Solid-state Timer
Operating Temperature	-10°C to 55°C
Output Type	Relay
Terminal Type	Screw terminals
Storage Temperature	-25°C to 65°C
Mounting	DIN Rail
Output	SPDT
Functions	On-Delay, Off-Delay, Interval, One-Shot
Protection Rating	IP20
Contact Form	SPDT
