Omron H3DS Series User Manual

H3DS-M/-S/-A
H3DS-M/-S/-A
9
Operation

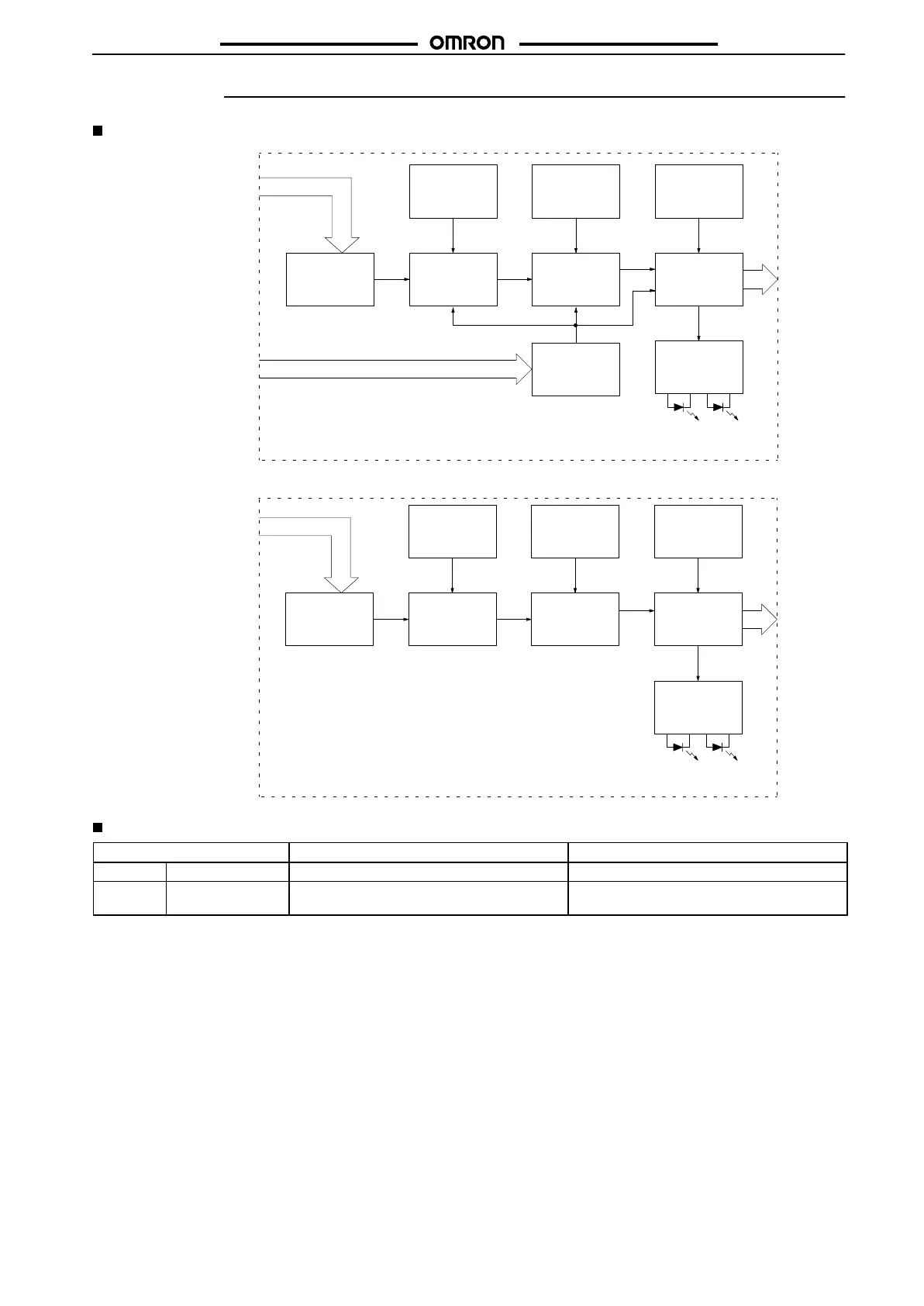

Block Diagram
H3DS-MLj
AC (DC) input
Power supply
circuit
Zero setting
detection
circuit
Oscillation
circuit
T
ime scale/
unit selectors
Counting
circuit
Operating
mode selector
Output circuit
Indicator
circuit
Power-ON
indicator
Output
indicator
Start input
Input circuit
AC (DC) input
Power supply
circuit
Zero setting
detection
circuit
Oscillation
circuit
T
ime scale/
unit selectors
Counting
circuit
Operating
mode selector
Output circuit
Indicator
circuit
Power-ON
indicator
Output
indicator
H3DS-SLj/-ALj
I/O Functions
Item H3DS-MLj H3DS-SLj/-ALj
Input Start Starts operation. No input is available.
Output Control output Outputs are turned ON according to designated
output mode when preset value is reached.
Outputs are turned ON according to designated
output mode when preset value is reached.

Omron H3DS Series Specifications

General

Type	Solid-state Timer
Operating Temperature	-10°C to 55°C
Output Type	Relay
Terminal Type	Screw terminals
Storage Temperature	-25°C to 65°C
Mounting	DIN Rail
Output	SPDT
Functions	On-Delay, Off-Delay, Interval, One-Shot
Protection Rating	IP20
Contact Form	SPDT
