Omron H3DS Series User Manual

H3DS-M/-S/-A
H3DS-M/-S/-A
8

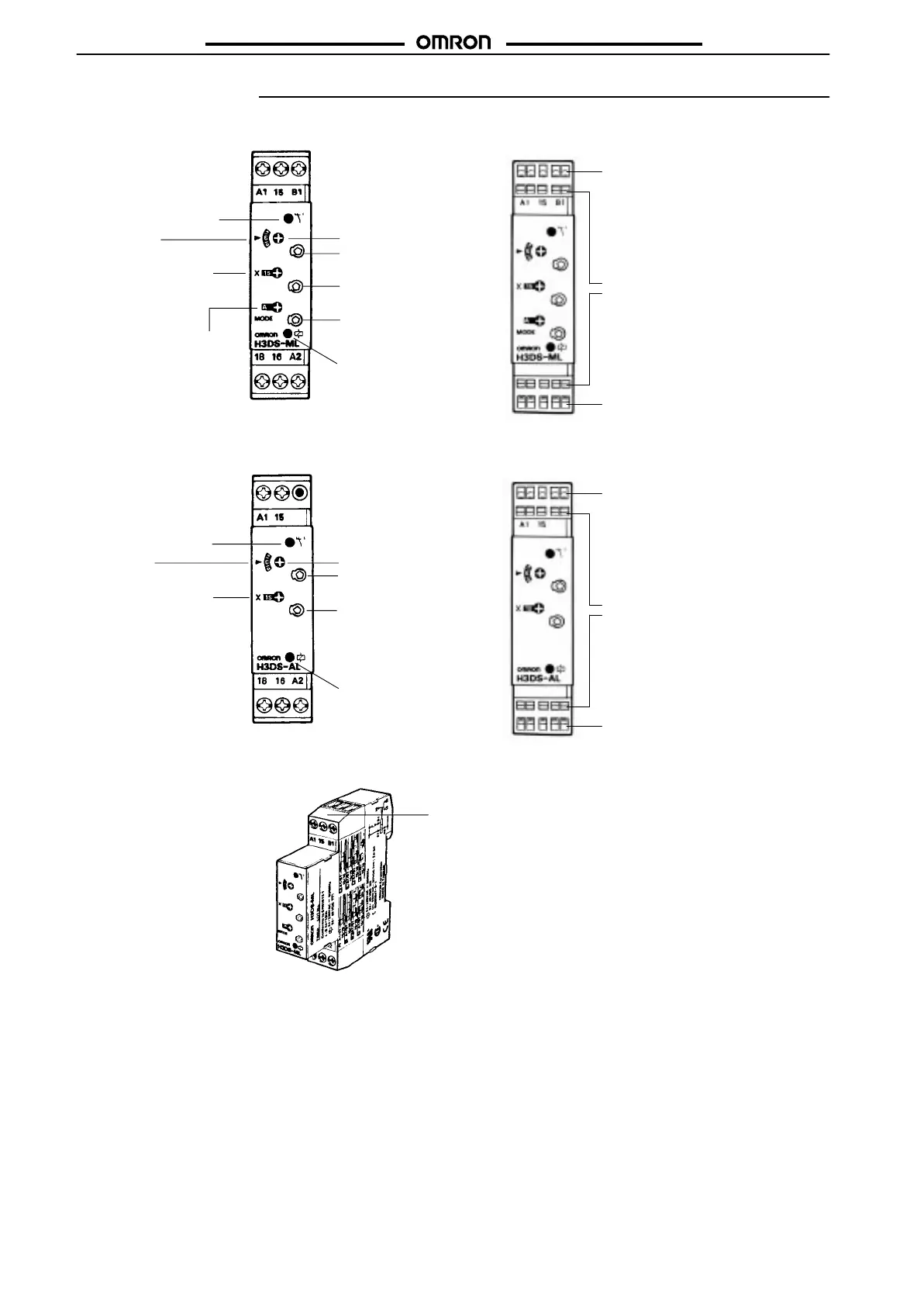

Nomenclature
Output indicator (orange)
(Lit while Timer output is ON.)
(Front View)
H3DS-MLj/-SLj
H3DS-ALj
Set time window
Time scale display window and
selector (select one from 1 s,
0.1 s, 1 h, 0.1 h, 10 h, 1 h, 1 m,
and 0.1 m)
Operating mode display window
and selector (select the mode from
A, B, B2, C, D, E, G, and J for the
H3DS-ML, from A, B2, E, and J for
the H3DS-SL)
Time setting dial (set time)
Lock for time setting dial
Lock for time scale selector
Lock for operating mode selector
Power-ON indicator (green)
(Lit while the power is ON.)
Attach the enclosed label here as a nameplate.
(The label is attached to the Timer’s DIN Track
hook section at the time of shipment.)
Output indicator (orange)
(Lit while Timer output is ON.)
Set time window
Time scale display window and
selector (select one from 1 s,
0.1 s, 1 h, 0.1 h, 10 h, 1 h, 1 m,
and 0.1 m)
Time setting dial (set time)
Lock for time setting dial
Lock for time scale selector
Power-ON indicator (green)
(Lit while the power is ON.)
Wire connection holes
Release holes
Wire connection holes
Wire connection holes
Release holes
Wire connection holes
H3DS-MLC/-SLC
H3DS-ALC
16 A2
16 A2
18
18
(Front View)
(Front View)
(Front View)

Omron H3DS Series Specifications

General

Type	Solid-state Timer
Operating Temperature	-10°C to 55°C
Output Type	Relay
Terminal Type	Screw terminals
Storage Temperature	-25°C to 65°C
Mounting	DIN Rail
Output	SPDT
Functions	On-Delay, Off-Delay, Interval, One-Shot
Protection Rating	IP20
Contact Form	SPDT
