H3CA
H3CA
113

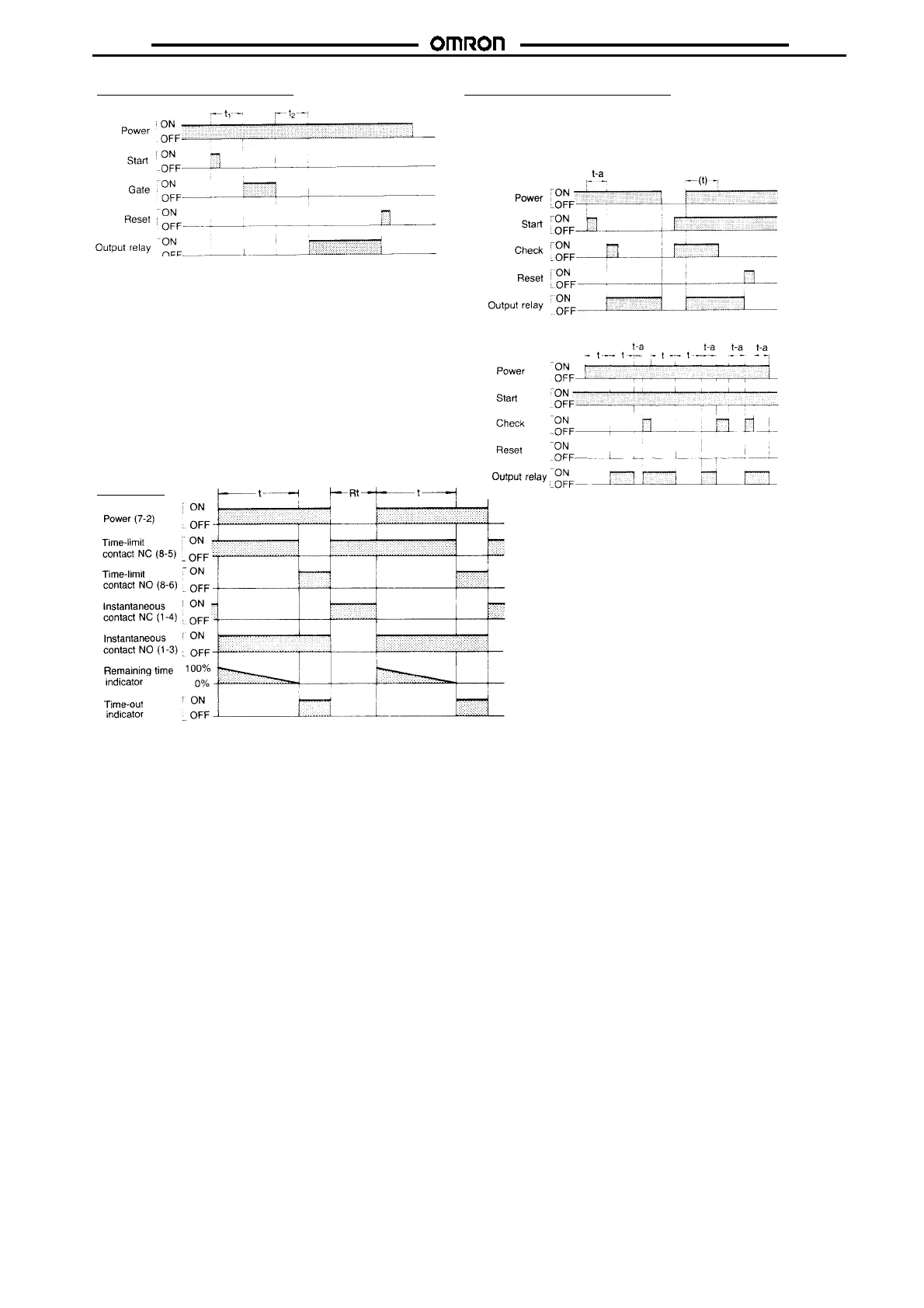

How to Use Gate Signal Input How to Use Check Signal Input
If a check signal is input to the timer during the lapse of a set time,
the remaining set time will become 0 and the timer will enter the
next control state. Also, while a check signal is being input, the
elapsed time measurement of the set time is not performed.
ON-delay Operation
Repeat Cycle Operation
Note: 1. This timing chart indicates the gate input in opera-
tion mode A (ON-delay operation).
2. The set time is the sum of t
1
and t
2
.
t: Set time; t-a: Time within the set time
t: Set time; t-a: Time within the set time
H3CA-8H
To Next Page
