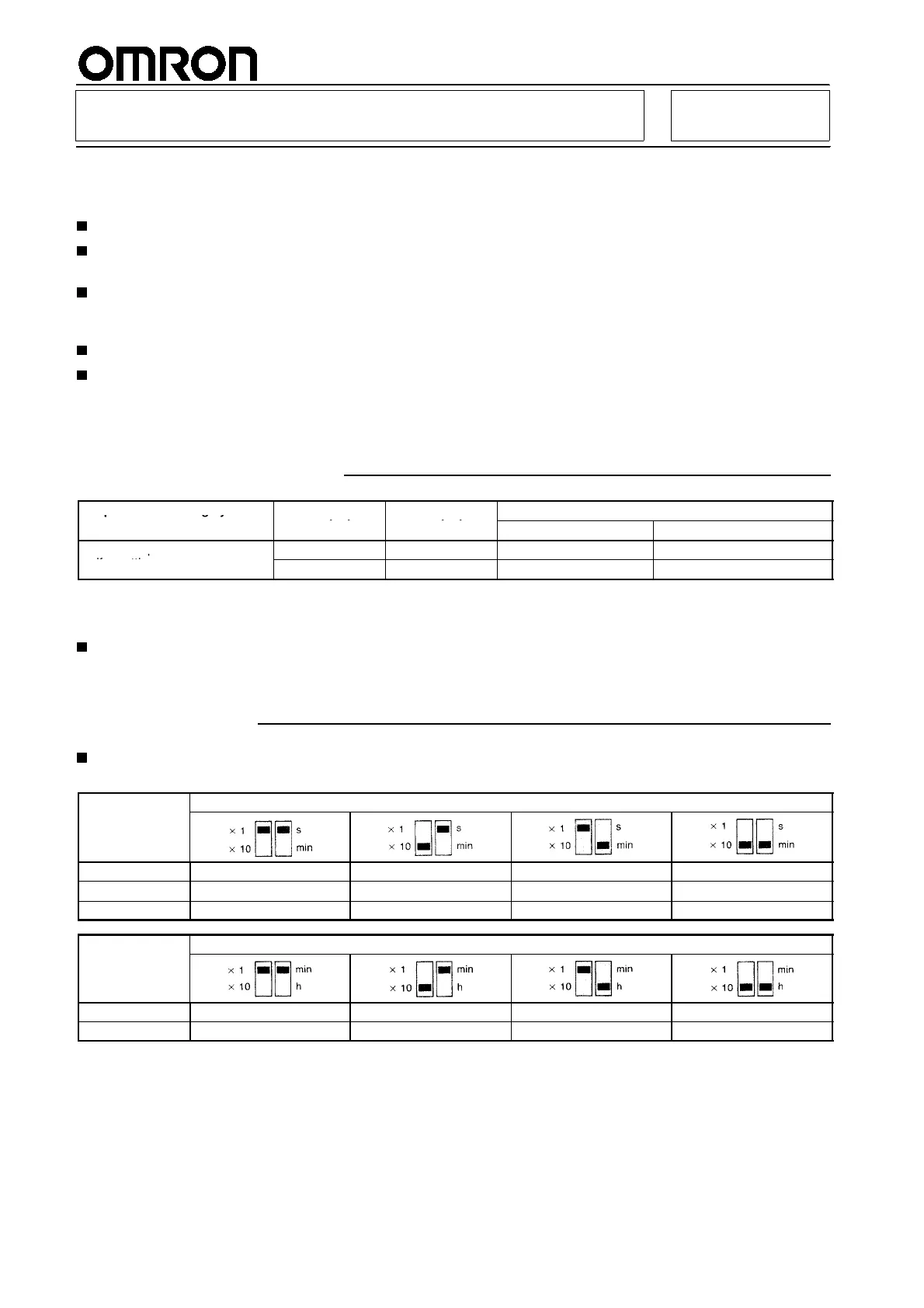

Solid-state Timer H3M
Solid-state Timer with Variable Time
Ranges
Four time ranges are selectable per timer unit.
Wide timing range of 0.05 second to 30 hours can
be covered by a combination of five timer units.
Standard surface mounting type is easily convert-
ible to flush mounting type with the use of a special
adapter (Y92F-40).
Requires only 40 x 50 mm for mounting space.
Equipped with power-ON & time-out indicators.
RC
Ordering Information
Operation/resetting system Time-limit
Instantaneous
Mounting
contact contact
Surface mounting Flush mounting
Time-limit operation/
DPDT --- H3M H3M with Y92F-40 adapter
self-resetting
SPDT SPDT H3M-H H3M-H with Y92F-40 adapter
Note: 1. Specify both the model number and supply voltage when ordering.
2. Sockets and adapters for surface/track mounting are available optionally and therefore, place the order for them as necessary.
Timer hold-down clips (F-hook and L-hook) are supplied with the timer.
Accessories (Order Separately)
Adapter
Y92F-40
Specifications
Time Ranges
Four time ranges are available for each timer by changing the time range selector switch positions to different combinations.
Time range code
Time range selector switch
A 0.05 to 0.5 s 0.5to5s 0.05 to 0.5 min 0.5to5min
B 0.1to1s 1to10s 0.1to1min 1to10min
C 0.3to3s 3to30s 0.3to3min 3to30min
Time range code Time multiplying key
D 0.1to1min 1to10min 0.1to1hrs 1to10hrs
E 0.3to3min 3to30min 0.3to3hrs 3to30hrs
