H3M
H3M
133

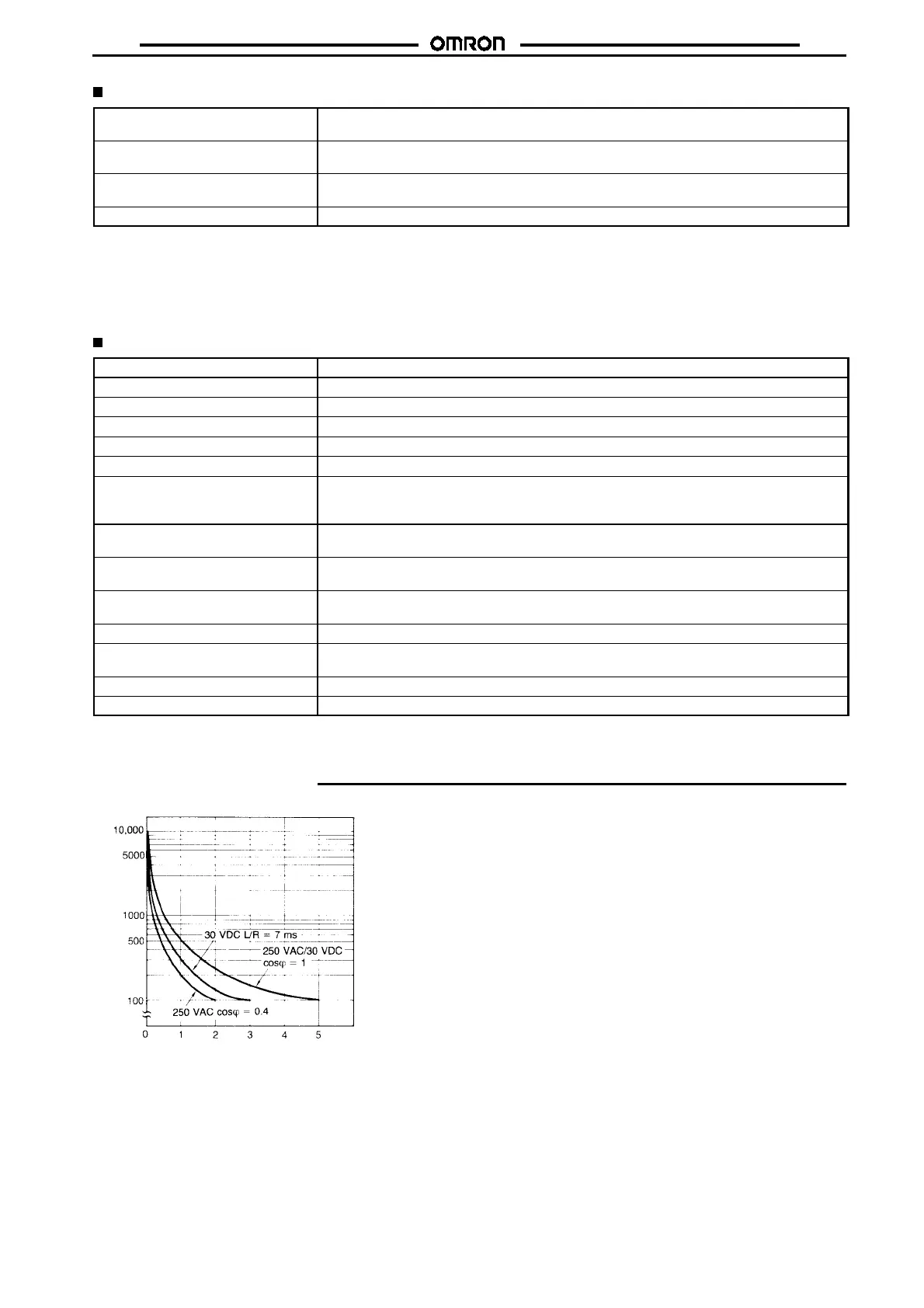

Ratings
Rated supply voltage 100/110/120 VAC (50/60 Hz), 200/220/240 VAC (50/60 Hz),
12, 24, 48, 100, 110 VDC (see note 2)
Operating voltage range AC: 85% to 110% of rated supply voltage
DC: 80% to 110% of rated supply voltage (see note 3)
Power consumption AC: Approx. 5 VA/2 W
DC: Approx. 2 W
Control outputs 5 A at 250 VAC, resistive load (cos
%
=1)
Note: 1. Color indicators for the rated voltage are provided on the front of the Timer.
Blue: 100/110/120 VAC
Red: 200/220/240 VAC
None: Other voltages
2. With DC ratings, single-phase full-wave rectified power sources may be used.
3. 90% to 110% for 12-VDC models.
Characteristics
Accuracy of operating time
!
1% max. (see note)
Setting error
!
10% max.
Reset time 0.1 s max.
Influence of voltage
!
1% max. (see note)
Influence of temperature
!
2% max. (see note)
Insulation resistance 100 M
$
min. (at 500 VDC)
Dielectric strength 2,000 VAC, 50/60 Hz for 1 min (between current-carrying and non-current-carrying parts)
1,500 VAC, 50/60 Hz for 1 min (between contact and control circuit)
1,000 VAC, 50/60 Hz for 1 min (between non-continuous contacts)
Vibration resistance Destruction: 10 to 55 Hz with 0.75-mm double amplitude
Malfunction: 10 to 55 Hz with 0.5-mm double amplitude
Shock resistance Destruction: 1,000 m/s
2
(approx. 100G)
Malfunction: 100 m/s
2
(approx. 10G)
Ambient temperature Operating: --10
"
Cto50
"
C
Storage: --25
"
Cto65
"
C
Ambient humidity Operating: 35% to 85%
Life expectancy Mechanical: 20,000,000 operations min. (under no load at 1,800 operations/h)
Electrical: 100,000 operations min. (5 A at 250 VAC, resistive load at 1,800 operations/h)
Approved standards UL (File No. E41515), CSA (File No. LR22310)
Weight Approx. 100 g
Note: Forthe timerwithtime rangecode A, add
!
10mstotherespective characteristics when the timerangeselectorswitches areinthex1s
(0.05 to 0.5 s) position.
Engineering Data
Switching operations (x 10 )
3
Load current (A)
Reference: A maximum current of 0.15 A can be switched at 125 VDC (cos
%
=1).
Maximum current of 0.1 A can be switched if L/R is 7 ms. In both cases,
a life of 100,000 operations can be expected.
The minimum applicable load is 10 mA at 5 VDC (failure level: P).
