H3M
H3M
134

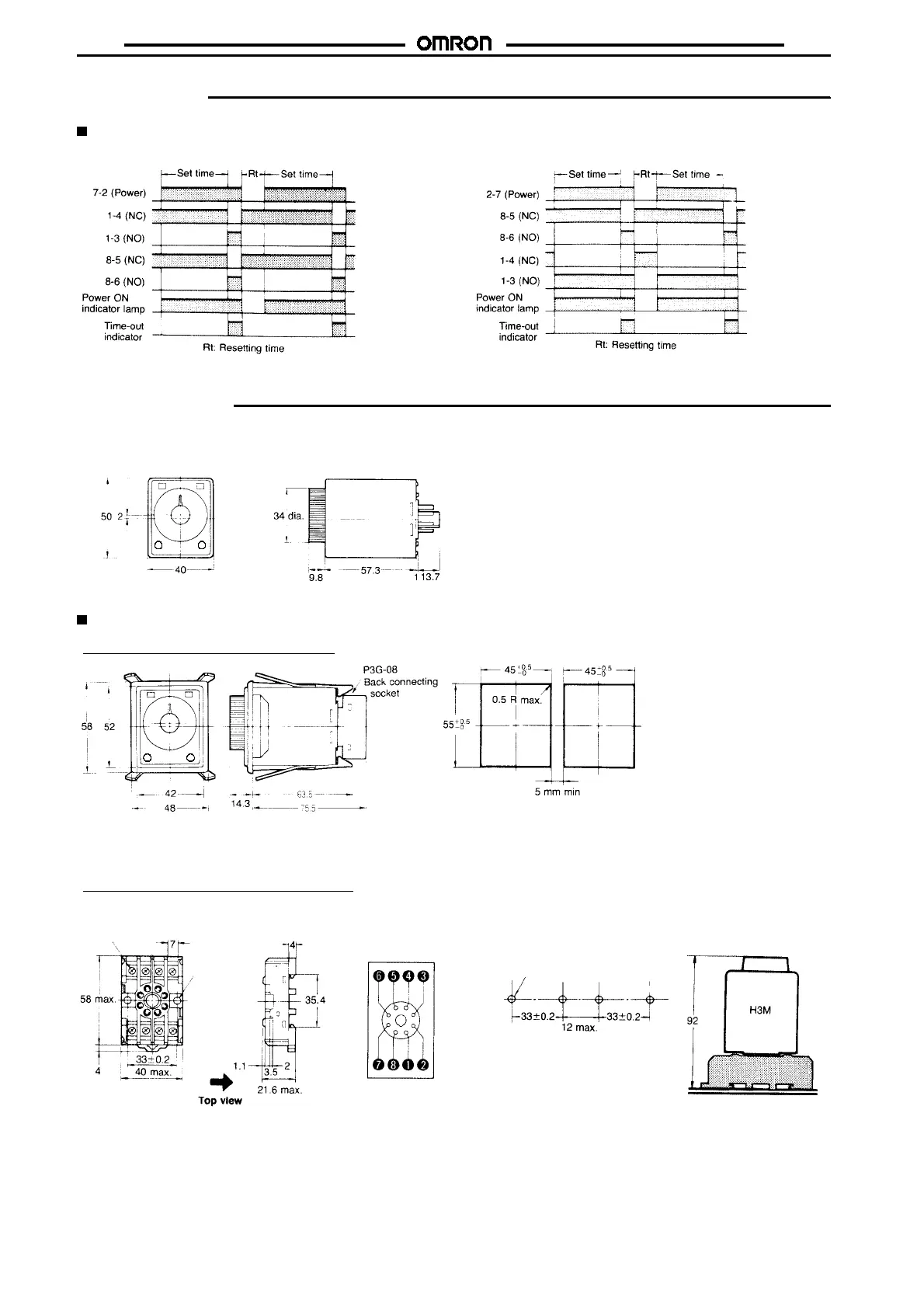

Operation
Timing Chart
H3M H3M-H
Dimensions
Note: All units are in millimeters unless otherwise indicated.
H3M(-H)
Accessories (Order Separately)
Y92F-40 Adapter with Flush Mounting
Note: When two or more timers mounted in line are to be continuously energized at the same time after the lapse of
theset time,besuretolimitthecarry currenttoless than1A. Whenusing thetimers atan ambienttemperature
of more than 40
"
C, be sure to reset the timers immediately after the set time has elapsed.
Track Mounted/Front Connecting Socket
PF085A
Terminal Arrangement
(Top View)
Mounting Holes Mounting Height of
Timer with Socket
Eight, M3.5
'
7sems
Two, 4.5 dia.
holes
Four, 5 dia. or M4 holes
Note: PF085A can be used as a
front connecting socket.
To Next Page
